mpsread
Read MPS file for LP and MILP optimization data
Description
augments the returned problem
= mpsread(mpsfile
,'ReturnNames
',true)problem
structure with
variableNames
and constraintNames
fields
containing the names of the variables and constraints in
mpsfile
.
Examples
Import and Run an MPS File
Load an mps
file and solve the problem it describes.
Load the eil33-2.mps
file from a public repository. View the problem type.
gunzip("https://miplib.zib.de/WebData/instances/eil33-2.mps.gz") problem = mpsread("eil33-2.mps")
Running HiGHS 1.7.0 (git hash: n/a): Copyright (c) 2024 HiGHS under MIT licence terms
problem = struct with fields:
f: [4516×1 double]
Aineq: [0×4516 double]
bineq: [0×1 double]
Aeq: [32×4516 double]
beq: [32×1 double]
lb: [4516×1 double]
ub: [4516×1 double]
intcon: [4516×1 double]
solver: 'intlinprog'
options: [1×1 optim.options.Intlinprog]
Notice that problem.intcon
is not empty, and problem.solver is 'intlinprog'
. The problem is an integer linear programming problem.

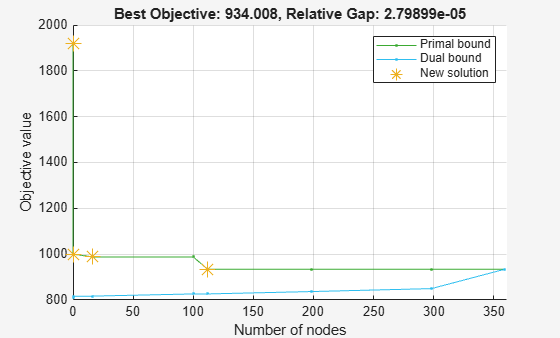

Change the options to suppress iterative display and to generate a plot as the solver progresses.
options = optimoptions("intlinprog",... Display="final",PlotFcn=@optimplotmilp); problem.options = options;
Solve the problem by calling intlinprog
.
[x,fval,exitflag,output] = intlinprog(problem);
Optimal solution found. Intlinprog stopped because the objective value is within a gap tolerance of the optimal value, options.AbsoluteGapTolerance = 1e-06. The intcon variables are integer within tolerance, options.ConstraintTolerance = 1e-06.
Obtain Variable and Constraint Names
Load an mps
file and obtain its variable and constraint names.
Load the eil33-2.mps
file from a public repository. View the returned problem structure.
gunzip("https://miplib.zib.de/WebData/instances/eil33-2.mps.gz") problem = mpsread("eil33-2.mps",ReturnNames=true)
Running HiGHS 1.7.0 (git hash: n/a): Copyright (c) 2024 HiGHS under MIT licence terms
problem = struct with fields:
f: [4516×1 double]
Aineq: [0×4516 double]
bineq: [0×1 double]
Aeq: [32×4516 double]
beq: [32×1 double]
lb: [4516×1 double]
ub: [4516×1 double]
intcon: [4516×1 double]
solver: 'intlinprog'
options: [1×1 optim.options.Intlinprog]
variableNames: [4516×1 string]
constraintNames: [1×1 struct]
View the first few names of each type.
problem.variableNames(1:4)
ans = 4×1 string
"x1"
"x2"
"x3"
"x4"
problem.constraintNames.eqlin(1:4)
ans = 4×1 string
"c1"
"c2"
"c3"
"c4"
There are no inequality constraints in the problem.
problem.constraintNames.ineqlin
ans = 0×1 empty string array
Input Arguments
mpsfile
— Path to MPS file
character vector | string scalar
Path to MPS file, specified as a character vector or string scalar. mpsfile
should be a file in the MPS
format.
Note
mpsread
does not support semicontinuous constraints or SOS constraints.mpsread
supports “fixed format” files.mpsread
does not support extensions such asobjsense
andobjname
.mpsread
silently ignores variables in theBOUNDS
section that do not previously appear in theCOLUMNS
section of the MPS file.
Example: "documents/optimization/milpproblem.mps"
Data Types: char
| string
ReturnNames
— Name-value pair indicating to return variable and constraint names from the MPS file
false
(default) | true
Name-value pair indicating to return variable and constraint names from
the MPS file, with the value specified as logical. false
indicates not to return the names. true
causes
mpsread
to return two extra fields in the
problem
output structure:
problem.variableNames
— String array of variable namesproblem.constraintNames
— Structure of constraint names:problem.constraintNames.eqlin
String array of linear equality constraint namesproblem.constraintNames.ineqlin
String array of linear inequality constraint names
The problem
structure inequality constraints
problem.Aineq
and problem.bineq
have the same order as the names in
problem.constraintNames.ineqlin
. Similarly, the
constraints problem.Aeq
and
problem.beq
have the same order as the names in
problem.constraintNames.eqlin
. The
problem.variableNames
order is the same as the order
of the solution variables x
after running
linprog
or intlinprog
on the
problem
structure.
Example: mpsread('filename','ReturnNames',true)
Data Types: logical
Output Arguments
problem
— Problem structure
structure
Problem structure, returned as a structure with fields:
f | Vector representing objective f'*x |
intcon | Vector indicating variables that take integer values (empty for LP, nonempty for MILP) |
Aineq | Matrix in linear inequality constraints Aineq*x ≤ bineq |
| Vector in linear inequality constraints Aineq*x ≤ bineq |
| Matrix in linear equality constraints Aeq*x = beq |
| Vector in linear equality constraints Aeq*x = beq |
lb | Vector of lower bounds |
ub | Vector of upper bounds |
solver | 'intlinprog' (if intcon is
nonempty), or 'linprog' (if intcon is
empty) |
|
Default options, as returned by the command optimoptions(solver) |
variableNames | String array containing variable
names from the MPS file. This field appears only if
ReturnNames is
true . |
constraintNames | Structure containing constraint
names from the MPS file. For a description, see ReturnNames . This field appears only if
ReturnNames is
true . |
mpsread
returns problem.Aineq
and problem.Aeq
as
sparse matrices.
Version History
Introduced in R2015bR2024b: mpsread
uses HiGHS software
mpsread
now uses HiGHS open-source software to read MPS files
into a form that intlinprog
and linprog
accept. The mpsread
display now
includes a reference to HiGHS.
