# Illustrating Three Approaches to GPU Computing: The Mandelbrot Set

This example shows how to adapt your MATLAB® code to compute the Mandelbrot Set using a GPU.

Starting with an existing algorithm, this example shows how to adapt your code using Parallel Computing Toolbox™ to make use of GPU hardware in three ways:

1. Using the existing algorithm but with GPU data as input

2. Using `arrayfun` to perform the algorithm on each element independently

3. Using the MATLAB/CUDA interface to run some existing CUDA/C++ code

### Setup

The values below specify a highly zoomed part of the Mandelbrot Set in the valley between the main cardioid and the p/q bulb to its left.

A 1000x1000 grid of real parts (X) and imaginary parts (Y) is created between these limits and the Mandelbrot algorithm is iterated at each grid location. For this particular location 500 iterations will be enough to fully render the image.

```maxIterations = 500; gridSize = 1000; xlim = [-0.748766713922161, -0.748766707771757]; ylim = [ 0.123640844894862, 0.123640851045266];```

### The Mandelbrot Set in MATLAB

Below is an implementation of the Mandelbrot Set using standard MATLAB commands running on the CPU. This is based on the code provided in Cleve Moler's Experiments with MATLAB e-book.

Setup the two-dimensional grid of complex values.

```t = tic; x = linspace(xlim(1),xlim(2),gridSize); y = linspace(ylim(1),ylim(2),gridSize); [xGrid,yGrid] = meshgrid(x,y); z0 = xGrid + 1i*yGrid;```

For 500 iterations, calculate the next value of a point on the complex grid `z` by squaring the previous value and adding its initial value, `z0`. Count the number of iterations for which the magnitude of `z` is less than or equal to two. This calculation is vectorized such that every location is updated at once.

```count = ones(size(z0)); z = z0; for n = 0:maxIterations z = z.*z + z0; inside = abs(z)<=2; count = count + inside; end```

Plot the natural logarithm of the count.

```count = log(count); cpuTime = toc(t); fig = gcf; fig.Position = [200 200 600 600]; imagesc(x,y,count); colormap( [jet;flipud(jet);0 0 0] ); axis off title(sprintf("CPU Execution: %1.3f s",cpuTime));```

### Using `gpuArray`

When MATLAB encounters data on the GPU, calculations with that data are performed on the GPU. The class `gpuArray` provides GPU versions of many functions that you can use to create data arrays, including the `linspace`, `logspace`, and `meshgrid` functions needed here. Similarly, the `count` array is initialized directly on the GPU using the function `ones`.

Ensure that your desired GPU is available and selected.

```gpu = gpuDevice; disp(gpu.Name + " GPU selected.")```
```NVIDIA RTX A5000 GPU selected. ```

Setup the two-dimensional grid of complex values on the GPU.

```t = tic; x = gpuArray.linspace(xlim(1),xlim(2),gridSize); y = gpuArray.linspace(ylim(1),ylim(2),gridSize); [xGrid,yGrid] = meshgrid(x,y); z0 = complex(xGrid,yGrid);```

As above, apply the Mandelbrot algorithm for each point on the grid.

```count = ones(size(z0),"gpuArray"); z = z0; for n = 0:maxIterations z = z.*z + z0; inside = abs(z)<=2; count = count + inside; end```

Plot the natural logarithm of the count.

```count = log(count); count = gather(count); naiveGPUTime = toc(t); imagesc(x,y,count) axis off title(sprintf("Naive GPU Execution: %1.3f s (%1.1fx faster)", ... naiveGPUTime,cpuTime/naiveGPUTime))```

### Element-wise Operation

Noting that the algorithm is operating equally on every element of the input, we can place the code in a function and call it using `arrayfun`. The function `processMandelbrotElement` is provided as a supporting function at the end of this example. For `gpuArray` inputs, the function used with `arrayfun` gets compiled into native GPU code.

An early abort has been introduced into the function `processMandelbrotElement` because this function processes only a single element. For most views of the Mandelbrot Set a significant number of elements stop very early and this can save a lot of processing. The `for`-loop has also been replaced by a `while`-loop because they are usually more efficient. This function makes no mention of the GPU and uses no GPU-specific features.

Using `arrayfun` causes MATLAB to make one call to a parallelized GPU operation that performs the whole calculation, instead of many thousands of calls to separate GPU-optimized operations (at least 6 per iteration). The first time you call `arrayfun` to run a particular function on the GPU, there is some overhead time to set up the function for GPU execution. Subsequent calls of `arrayfun` with the same function can run faster.

Setup the two-dimensional grid of complex values.

```t = tic; x = gpuArray.linspace(xlim(1),xlim(2),gridSize); y = gpuArray.linspace(ylim(1),ylim(2),gridSize); [xGrid,yGrid] = meshgrid(x,y);```

Using `arrayfun`, apply the Mandelbrot algorithm for each point on the grid.

```count = arrayfun(@processMandelbrotElement, ... xGrid,yGrid,maxIterations);```

Plot the natural logarithm of the count.

```count = gather(count); gpuArrayfunTime = toc(t); imagesc(x,y,count) axis off title(sprintf("GPU Execution Using arrayfun: %1.3f s (%1.1fx faster)", ... gpuArrayfunTime,cpuTime/gpuArrayfunTime));```

### Working with CUDA

In Experiments in MATLAB performance is improved by converting the basic algorithm to a C-Mex function. If you are willing to do some work in C/C++, then you can use Parallel Computing Toolbox to call pre-written CUDA kernels using MATLAB data. For more details on using CUDA kernels in MATLAB, see Run CUDA or PTX Code on GPU.

A CUDA/C++ implementation of the element processing algorithm is provided with this example, `pctdemo_processMandelbrotElement.cu`. The part of the CUDA/C++ code that executes the Mandelbrot algorithm for a single location is given below.

```__device__ unsigned int doIterations( double const realPart0, double const imagPart0, unsigned int const maxIters ) { // Initialize: z = z0 double realPart = realPart0; double imagPart = imagPart0; unsigned int count = 0; // Loop until escape while ( ( count <= maxIters ) && ((realPart*realPart + imagPart*imagPart) <= 4.0) ) { ++count; // Update: z = z*z + z0; double const oldRealPart = realPart; realPart = realPart*realPart - imagPart*imagPart + realPart0; imagPart = 2.0*oldRealPart*imagPart + imagPart0; } return count; } ```

Compile this file into a parallel thread execution (PTX) file using `mexcuda`.

`mexcuda -ptx pctdemo_processMandelbrotElement.cu`
```Building with 'NVIDIA CUDA Compiler'. MEX completed successfully. ```

Create a `parallel.gpu.CUDAKernel` object by passing the CUDA file and the PTX file to the `parallel.gpu.CUDAKernel` function.

```cudaFilename = "pctdemo_processMandelbrotElement.cu"; ptxFilename = "pctdemo_processMandelbrotElement.ptx"; kernel = parallel.gpu.CUDAKernel(ptxFilename,cudaFilename);```

Setup the two-dimensional grid of complex values.

```t = tic(); x = gpuArray.linspace(xlim(1),xlim(2),gridSize); y = gpuArray.linspace(ylim(1),ylim(2),gridSize); [xGrid,yGrid] = meshgrid(x,y);```

One GPU thread is required per location in the Mandelbrot Set, with the threads grouped into blocks. The kernel indicates how big a thread-block is. Calculate the number of thread-blocks required, and set the `GridSize` property of the kernel (effectively the number of thread blocks that will be launched independently by the GPU) accordingly.

```numElements = numel(xGrid); kernel.ThreadBlockSize = [kernel.MaxThreadsPerBlock,1,1]; kernel.GridSize = [ceil(numElements/kernel.MaxThreadsPerBlock),1];```

Evaluate the kernel using `feval`.

```count = zeros(size(xGrid),"gpuArray"); count = feval(kernel,count,xGrid,yGrid,maxIterations,numElements);```

Plot the natural logarithm of the count.

```count = gather(count); gpuCUDAKernelTime = toc(t); imagesc(x,y,count) axis off title(sprintf("CUDAKernel Execution: %1.3f s (%1.1fx faster)", ... gpuCUDAKernelTime,cpuTime/gpuCUDAKernelTime));```

### Summary

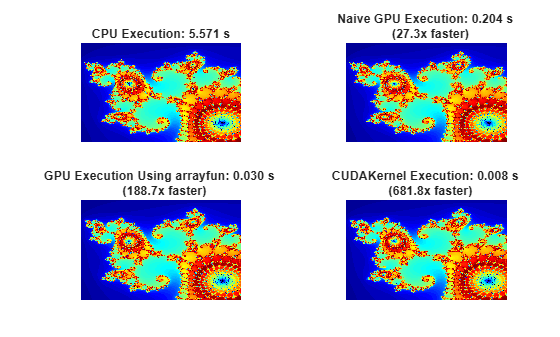

This example has shown three ways in which a MATLAB algorithm can be adapted to make use of GPU hardware:

1. Convert the input data to be on the GPU using `gpuArray`, leaving the algorithm unchanged.

2. Use `arrayfun` on a `gpuArray` input to perform the algorithm on each element of the input independently.

3. Use a `parallel.gpu.CUDAKernel` to run some existing CUDA/C++ code using MATLAB data.

`title('The Mandelbrot Set on a GPU')`

### Supporting Functions

The supporting function `processMandelbrotElement` counts the number of iterations before the complex value number `(x0,y0)` jumps outside a circle of radius 2 on the complex plane. Each iteration involves mapping `z = z^2 + z0` where `z0 = x0 + i*y0`. The function returns the log of the iteration count at escape or `maxIterations` if the point did not escape.

```function count = processMandelbrotElement(x0,y0,maxIterations) z0 = complex(x0,y0); z = z0; count = 1; while (count <= maxIterations) && (abs(z) <= 2) count = count + 1; z = z*z + z0; end count = log(count); end```
