rocsnr
Receiver operating characteristic curves by SNR
Description
[
returns the single-pulse detection probabilities, Pd
,Pfa
]
= rocsnr(SNRdB
)Pd
, and
false-alarm probabilities, Pfa
, for the SNRs in the vector
SNRdB
. By default, for each SNR, the detection
probabilities are computed for 101 false-alarm probabilities between
1e–10
and 1
. The false-alarm probabilities
are logarithmically equally spaced. The ROC curve is constructed assuming a coherent
receiver with a nonfluctuating target.
[
returns detection probabilities and false-alarm probabilities with additional
options specified by one or more name-value arguments.Pd
,Pfa
]
= rocsnr(SNRdB
,Name=Value
)
rocsnr(___)
plots the ROC curves.
Examples
ROC Curves for Different SNRs
Plot ROC curves for different SNRs for a single pulse.

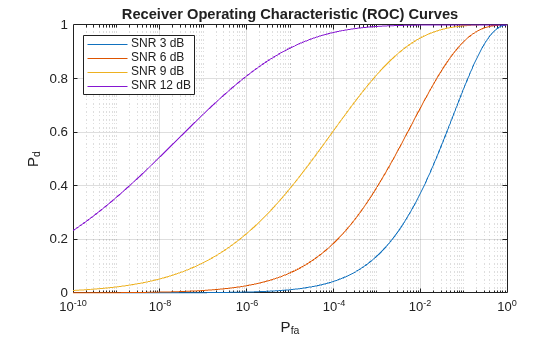

SNRdB = [3 6 9 12]; [Pd,Pfa] = rocsnr(SNRdB,SignalType="NonfluctuatingCoherent"); semilogx(Pfa,Pd) grid on xlabel("P_{fa}") ylabel("P_d") legend("SNR "+SNRdB+" dB",Location="northwest") title("Receiver Operating Characteristic (ROC) Curves")
ROC Curve for Fixed SNR
To achieve a probability of false alarm of 1e-6, the SNR threshold for Neyman-Pearson detection of a single pulse in real-valued Gaussian noise is approximately 13.5 dB. Plot an ROC curve at that SNR.

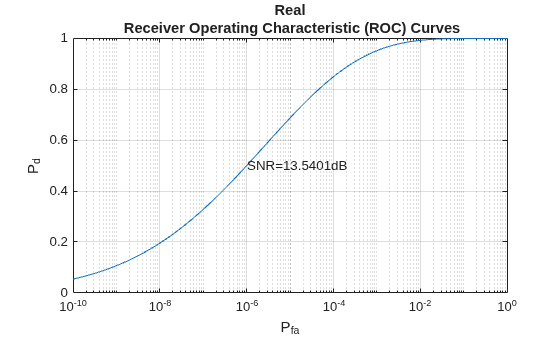

snrthreshold = npwgnthresh(1e-6,1,'real'); rocsnr(snrthreshold,'SignalType','real')
ROC Curves for Different Received Signal Types
Examine detector performance for different received signal types at a fixed SNR.

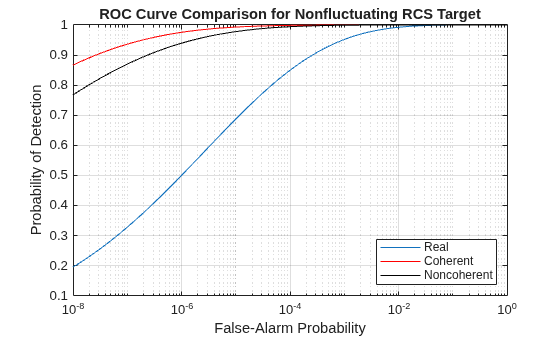

SNR = 13.54; [Pd_real,Pfa_real] = rocsnr(SNR,'SignalType','real',... 'MinPfa',1e-8); [Pd_coh,Pfa_coh] = rocsnr(SNR,... 'SignalType','NonfluctuatingCoherent',... 'MinPfa',1e-8); [Pd_noncoh,Pfa_noncoh] = rocsnr(SNR,'SignalType',... 'NonfluctuatingNoncoherent','MinPfa',1e-8); semilogx(Pfa_real,Pd_real) hold on grid on semilogx(Pfa_coh,Pd_coh,'r') semilogx(Pfa_noncoh,Pd_noncoh,'k') xlabel('False-Alarm Probability') ylabel('Probability of Detection') legend('Real','Coherent','Noncoherent','location','southeast') title('ROC Curve Comparison for Nonfluctuating RCS Target') hold off
The ROC curves clearly demonstrate the superior probability of detection performance for coherent and noncoherent detectors over the real-valued case.
Input Arguments
SNRdB
— Signal-to-noise ratios
vector
Signal-to-noise ratios in decibels, specified as a row or column vector.
Example: [3 6 9 12]
Data Types: double
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: MinPfa=1e-8,NumPoints=64,NumPulses=10
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'MinPfa',1e-8,'NumPoints',64,'NumPulses',10
MaxPfa
— Maximum false-alarm probability to include in the ROC calculation
1
(default) | positive scalar
Maximum false-alarm probability to include in the ROC calculation, specified as a positive scalar.
Data Types: double
MinPfa
— Minimum false-alarm probability to include in the ROC calculation
1e-10
(default) | positive scalar
Minimum false-alarm probability to include in the ROC calculation, specified as a positive scalar.
Data Types: double
NumPulses
— Number of pulses to integrate
1
(default) | positive integer
Number of pulses to integrate when calculating the ROC curves,
specified as a positive integer. A value of 1
indicates no pulse integration.
Data Types: double
NumPoints
— Number of SNR values to use when calculating the ROC curves
101
(default) | positive integer
Number of SNR values to use when calculating the ROC curves, specified
as a positive integer. The actual values are equally spaced between
MinSNR
and MaxSNR
.
Data Types: double
SignalType
— Type of received signal
"NonfluctuatingCoherent"
(default) | "NonfluctuatingNoncoherent"
| "Real"
| "Swerling1"
| "Swerling2"
| "Swerling3"
| "Swerling4"
This property specifies the type of received signal or, equivalently,
the probability density functions (PDF) used to compute the ROC. Valid
values are: "Real"
,
"NonfluctuatingCoherent"
,
"NonfluctuatingNoncoherent"
,
"Swerling1"
, "Swerling2"
,
"Swerling3"
, and "Swerling4"
.
Values are not case sensitive.
The "NonfluctuatingCoherent"
signal type assumes
that the noise in the received signal is a complex-valued, Gaussian
random variable. This variable has independent zero-mean real and
imaginary parts each with variance
σ2/2 under the null
hypothesis. In the case of a single pulse in a coherent receiver with
complex white Gaussian noise, the probability of detection,
PD, for a given
false-alarm probability, PFA is:
where erfc
and
erfc-1
are the
complementary error function and that function’s inverse, and
χ is the SNR not expressed in decibels.
For details about the other supported signal types, see [1].
Data Types: char
| string
Output Arguments
Pd
— Detection probabilities
vector
Detection probabilities corresponding to the false-alarm probabilities,
returned as a vector. For each SNR in SNRdB
,
Pd
contains one column of detection probabilities.
Pfa
— False-alarm probabilities
column vector
False-alarm probabilities, returned as a column vector. By default, the
false-alarm probabilities are 101 logarithmically equally spaced values
between 1e–10
and 1
. To change the
range of probabilities, use the optional MinPfa
or
MaxPfa
input argument. To change the number of
probabilities, use the optional NumPoints
input
argument.
References
[1] Richards, M. A. Fundamentals of Radar Signal Processing. New York: McGraw-Hill, 2005, pp 298–336.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Does not support variable-size inputs.
Supported only when output arguments are specified.
Version History
Introduced in R2011a
