Tune PI Controller Using Reinforcement Learning

This example shows how to tune the two gains of a PI controller using the twin-delayed deep deterministic policy gradient (TD3) reinforcement learning algorithm. The performance of the tuned controller is compared with that of a controller tuned using the Control System Tuner app. Using the Control System Tuner app to tune controllers in Simulink® requires Simulink Control Design™ software.

For relatively simple control tasks with a small number of tunable parameters, model-based tuning techniques can get good results with a faster tuning process compared to model-free RL-based methods. However, RL methods can be more suitable for highly nonlinear systems or adaptive controller tuning. To facilitate the controller comparison, both tuning methods use a linear quadratic Gaussian (LQG) objective function. For an example that uses a DDPG agent to implement an LQR controller, see Compare DDPG Agent to LQR Controller.

This example uses a reinforcement learning (RL) agent to compute the gains for a PI controller. For an example that replaces the PI controller with a neural network controller, see Control Water Level in a Tank Using a DDPG Agent.

Fix Random Number Stream for Reproducibility

The example code might involve computation of random numbers at various stages. Fixing the random number stream at the beginning of various sections in the example code preserves the random number sequence in the section every time you run it, and increases the likelihood of reproducing the results. For more information, see Results Reproducibility.

Fix the random number stream with the seed 0 and random number algorithm Mersenne Twister. For more information on controlling the seed used for random number generation, see rng.

previousRngState = rng(0,"twister");

The output previousRngState is a structure that contains information about the previous state of the stream. You will restore the state at the end of the example.

Environment Model

The environment model for this example is a water tank model. The goal of this control system is to maintain the level of water in a tank to match a reference value.

open_system('watertankLQG')

The model includes process noise with variance $\mathit{E}\left({\mathit{n}}^2\left(\mathit{t}\right)\right)=1$.

To maintain the water level while minimizing control effort u, the controllers in this example use the following LQG criterion.

$$\mathit{J}=\underset{\mathit{T}\Rightarrow \infty }{\lim }\mathit{E}\left(\frac{1}{\mathit{T}}{\int }_0^{\mathit{T}}\left({\left(\mathit{Href}-\mathit{y}\left(\mathit{t}\right)\right)}^2+0.01{\mathit{u}}^2\left(\mathit{t}\right)\right)\mathrm{dt}\right)$$

To simulate the controller in this model, you must specify the simulation time Tf and the controller sample time Ts in seconds.

Ts = 0.1;
Tf = 10;

For more information about the water tank model, see watertank Simulink Model (Simulink Control Design).

Tune PI Controller Using Control System Tuner

To tune a controller in Simulink using Control System Tuner, you must specify the controller block as a tuned block and define the goals for the tuning process. For more information on using Control System Tuner, see Tune a Control System Using Control System Tuner (Simulink Control Design).

For this example, open the saved session ControlSystemTunerSession.mat using Control System Tuner. This session specifies the PID Controller block in the watertankLQG model as a tuned block and contains an LQG tuning goal.

controlSystemTuner("ControlSystemTunerSession")

To tune the controller, on the Tuning tab, click Tune.

The tuned proportional and integral gains are approximately 9.8 and 1e-6, respectively.

Kp_CST = 9.80199999804512;
Ki_CST = 1.00019996230706e-06;

Create Environment for Training Agent

To define the model for training the RL agent, modify the water tank model using the following steps.

1. Delete the PID Controller.

2. Insert an RL Agent block.

3. Create the observation vector ${\left[\begin{array}{ccc}\int \mathit{e}\mathrm{dt}& \mathit{e}& \end{array}\right]}^{\mathit{T}}$ where $\mathit{e}=\mathit{Href}-\mathit{h}$, $\mathit{h}$ is the height of the water in the tank, and $\mathit{Href}$ is the reference water height. Connect the observation signal to the RL Agent block.

4. Define the reward function for the RL agent as the negative of the LQG cost , that is, $\mathrm{Reward}=-\left({\left(\mathit{Href}-\mathit{h}\left(\mathit{t}\right)\right)}^2+0.01{\mathit{u}}^2\left(\mathit{t}\right)\right)$. The RL agent maximizes this reward, thus minimizing the LQG cost.

The resulting model is rlwatertankPIDTune.slx.

mdl = 'rlwatertankPIDTune';
open_system(mdl)

Create the water tank RL environment object using rlSimulinkEnv. To set a reset function for the environment, use localResetFcn, which is defined at the end of this example.

% Define the observation specification obsInfo
% and the action specification actInfo.
obsInfo = rlNumericSpec([2 1]);
obsInfo.Name = 'observations';
obsInfo.Description = 'integrated error and error';

actInfo = rlNumericSpec([1 1]);
actInfo.Name = 'PID output';

% Build the environment object.
env = rlSimulinkEnv(mdl,[mdl '/RL Agent'],obsInfo,actInfo);

% Set a custom reset function that randomizes
% the reference values for the model.
env.ResetFcn = @(in)localResetFcn(in,mdl);

Extract the observation and action dimensions for this environment. Use prod(obsInfo.Dimension) and prod(actInfo.Dimension) to obtain the number of dimensions of the observation and action spaces, respectively, regardless of whether they are arranged as row vectors, column vectors, or matrices.

numObs = prod(obsInfo.Dimension);
numAct = prod(actInfo.Dimension);

Fix the random generator seed for reproducibility.

rng(0)

Create TD3 Agent

Fix the random stream for reproducibility.

rng(0,"twister");

You can model a PI controller as an actor. The actor uses error integral and error observations as inputs.

$$\mathit{u}=\left[\begin{array}{ccc}\int \mathit{e}\mathrm{dt}& \mathit{e}& \end{array}\right]*{\left[\begin{array}{ccc}{\mathit{K}}_{\mathit{i}}& {\mathit{K}}_{\mathit{p}}& \end{array}\right]}^{\mathit{T}}$$

Here:

• u is the output of the actor.

• Ki and Kp are the weights of the actor.

• $\mathit{e}=\mathit{Href}-\mathit{h}\left(\mathit{t}\right)$, $\mathit{h}\left(\mathit{t}\right)$ is the height of the water in the tank, and $\mathit{Href}$ is the reference water height.

To create the actor, use rlContinuousDeterministicActor with a basis function myBasisFcn which is provided as a separate file in the example folder. For more information, see rlContinuousDeterministicActor.

initialGain = single([1e-3 2]);
actor = rlContinuousDeterministicActor( ...
    {@myBasisFcn,initialGain'},obsInfo, actInfo);

The agent in this example is a twin-delayed deep deterministic policy gradient (TD3) agent. TD3 agents rely on actor and critic approximator objects to learn the optimal policy.

A TD3 agent approximates the long-term reward given observations and actions using two critic value-function representations. To create the critics, first create a deep neural network with two inputs, the observation and action, and one output.

Create the critic network. Use the same network structure for both critic representations.

statePath = [
    featureInputLayer(numObs,Name='stateInLyr')
    fullyConnectedLayer(32,Name='fc1')
    ];

actionPath = [
    featureInputLayer(numAct,Name='actionInLyr')
    fullyConnectedLayer(32,Name='fc2')
    ];

commonPath = [
    concatenationLayer(1,2,Name='concat')
    reluLayer
    fullyConnectedLayer(32)
    reluLayer
    fullyConnectedLayer(1,Name='qvalOutLyr')
    ];

criticNet = dlnetwork();
criticNet = addLayers(criticNet,statePath);
criticNet = addLayers(criticNet,actionPath);
criticNet = addLayers(criticNet,commonPath);

criticNet = connectLayers(criticNet,'fc1','concat/in1');
criticNet = connectLayers(criticNet,'fc2','concat/in2');

Create the critic objects using the specified neural network and the environment action and observation specifications. Pass as additional arguments also the names of the network layers to be connected with the observation and action channels.

critic1 = rlQValueFunction(criticNet, ...
    obsInfo,actInfo,...
    ObservationInputNames='stateInLyr', ...
    ActionInputNames='actionInLyr');

critic2 = rlQValueFunction(criticNet, ...
    obsInfo,actInfo,...
    ObservationInputNames='stateInLyr', ...
    ActionInputNames='actionInLyr');

Define vector of critic objects.

critic = [critic1 critic2];

Specify training options for the actor and critic.

actorOpts = rlOptimizerOptions( ...
    LearnRate=1e-3, ...
    GradientThreshold=1);

criticOpts = rlOptimizerOptions( ...
    LearnRate=1e-3, ...
    GradientThreshold=1);

Specify the TD3 agent options using rlTD3AgentOptions. Include the training options for the actor and critic.

• Set the agent to use the controller sample time Ts.

• Set the mini-batch size to 256 experience samples.

• Set the experience buffer length to 1e6.

• Set the exploration model and target policy smoothing model to use Gaussian noise with variance of 0.1.

agentOpts = rlTD3AgentOptions(...
    SampleTime=Ts,...
    MiniBatchSize=256, ...
    ExperienceBufferLength=1e6,...
    ActorOptimizerOptions=actorOpts,...
    CriticOptimizerOptions=criticOpts);

You can also set or modify the agent options using dot notation.

agentOpts.TargetPolicySmoothModel.StandardDeviation = sqrt(0.1);

Create the TD3 agent using the specified actor representation, critic representation, and agent options. For more information, see rlTD3AgentOptions.

agent = rlTD3Agent(actor,critic,agentOpts);

Train Agent

Fix the random stream for reproducibility.

rng(0,"twister");

To train the agent, first specify the following training options.

• Run each training for a maximum of 1000 episodes, with each episode lasting at most 100 time steps.

• Display the training progress in the Reinforcement Learning Training Monitor (set the Plots option) and disable the command-line display (set the Verbose option).

• Evaluate the performance of the greedy policy every 50 training episodes, averaging the cumulative reward of 5 simulations.

• Stop training when the evaluation score reaches -345. At this point, the agent can control the level of water in the tank.

For more information on training options, see rlTrainingOptions.

maxepisodes = 1000;
maxsteps = ceil(Tf/Ts);
trainOpts = rlTrainingOptions(...
    MaxEpisodes=maxepisodes, ...
    MaxStepsPerEpisode=maxsteps, ...
    ScoreAveragingWindowLength=100, ...
    Verbose=false, ...

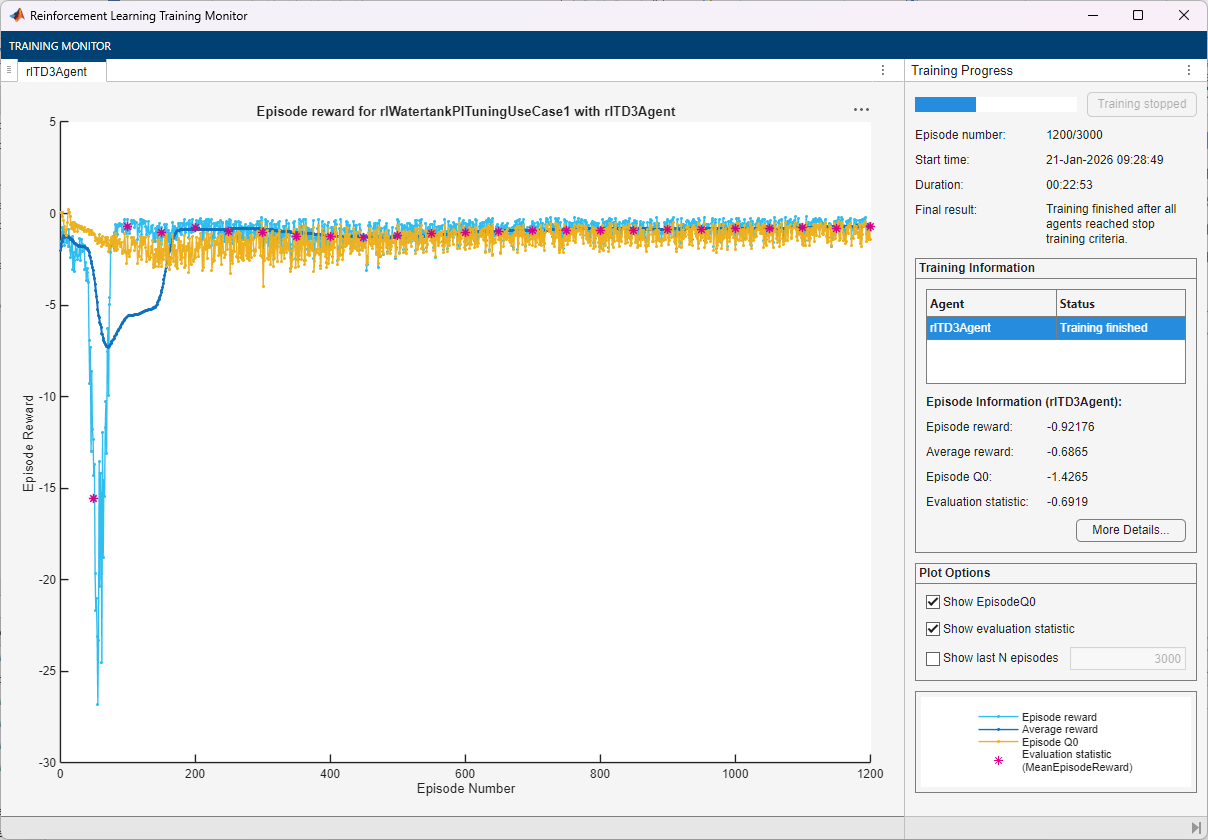

    Plots="training-progress",...
    StopTrainingCriteria="EvaluationStatistic",...
    StopTrainingValue=-345);

% agent evaluator
evaluator = rlEvaluator( ...
    NumEpisodes=5,EvaluationFrequency=50,RandomSeeds=1:5);

Train the agent using the train function. Training this agent is a computationally intensive process that takes several minutes to complete. To save time while running this example, load a pretrained agent by setting doTraining to false. To train the agent yourself, set doTraining to true.

doTraining = false;
if doTraining
    % Train the agent.
    trainingStats = train(agent,env,trainOpts,Evaluator=evaluator);
else
    % Load pretrained agent for the example.
    load("WaterTankPIDtd3.mat","agent")
end

Validate Trained Agent

Fix the random stream for reproducibility.

rng(0,"twister");

Validate the learned agent against the model by simulation.

simOpts = rlSimulationOptions(MaxSteps=maxsteps);
experiences = sim(env,agent,simOpts);

The integral and proportional gains of the PI controller are the weights of the actor representation. To obtain the weights, first extract the learnable parameters from the actor.

actor = getActor(agent);
parameters = getLearnableParameters(actor);

Obtain the controller gains.

Ki = parameters{1}(1)

Ki = single

0.4862

Kp = parameters{1}(2)

Kp = single

8.2851

Apply the gains obtained from the RL agent to the original PI controller block and run a step-response simulation.

mdlTest = 'watertankLQG';
open_system(mdlTest);
set_param([mdlTest '/PID Controller'],'P',num2str(Kp))
set_param([mdlTest '/PID Controller'],'I',num2str(Ki))
sim(mdlTest)

Extract the step response information, LQG cost, and stability margin for the simulation. To compute the stability margin, use localStabilityAnalysis defined at the end of this example.

rlStep = simout;
rlCost = cost;
rlStabilityMargin = localStabilityAnalysis(mdlTest);

Apply the gains obtained using Control System Tuner to the original PI controller block and run a step-response simulation.

set_param([mdlTest '/PID Controller'],'P',num2str(Kp_CST))
set_param([mdlTest '/PID Controller'],'I',num2str(Ki_CST))
sim(mdlTest)
cstStep = simout;
cstCost = cost;
cstStabilityMargin = localStabilityAnalysis(mdlTest);

Compare Controller Performance

Plot the step response for each system.

figure
plot(cstStep)
hold on
plot(rlStep)
grid on
legend('Control System Tuner','RL',Location="southeast")
title('Step Response')

Analyze the step response for both simulations.

rlStepInfo = stepinfo(rlStep.Data,rlStep.Time);
cstStepInfo = stepinfo(cstStep.Data,cstStep.Time);
stepInfoTable = struct2table([cstStepInfo rlStepInfo]);
stepInfoTable = removevars(stepInfoTable,{'SettlingMin', ...
    'TransientTime','SettlingMax','Undershoot','PeakTime'});
stepInfoTable.Properties.RowNames = {'CST','RL'};
stepInfoTable

stepInfoTable=2×4 table
           RiseTime    SettlingTime    Overshoot     Peak
           ________    ____________    _________    ______

    CST    0.77737        1.3278        0.33125     9.9023
    RL     0.95173        1.6188        0.45174     10.103

Analyze the stability for both simulations.

stabilityMarginTable = struct2table( ...
    [cstStabilityMargin rlStabilityMargin]);
stabilityMarginTable = removevars(stabilityMarginTable,{...
    'GMFrequency','PMFrequency','DelayMargin','DMFrequency'});
stabilityMarginTable.Properties.RowNames = {'CST','RL'};
stabilityMarginTable

stabilityMarginTable=2×3 table
           GainMargin    PhaseMargin    Stable
           __________    ___________    ______

    CST      8.1616        84.123       true
    RL       9.6843        83.828       true

Compare the cumulative LQG cost for the two controllers. The RL-tuned controller produces a slightly more optimal solution.

rlCumulativeCost  = sum(rlCost.Data)

rlCumulativeCost =
-375.4192

cstCumulativeCost = sum(cstCost.Data)

cstCumulativeCost =
-376.9373

Both controllers produce stable responses, with the controller tuned using Control System Tuner producing a faster response. However, the RL tuning method produces a higher gain margin and a more optimal solution.

Restore the random number stream using the information stored in previousRngState.

rng(previousRngState);

Local Functions

Function to randomize the reference signal and initial height of the water in the tank at the beginning of each episode.

function in = localResetFcn(in,mdl)

% Randomize reference signal
blk = sprintf([mdl '/Desired \nWater Level']);
hRef = 10 + 4*(rand-0.5);
in = setBlockParameter(in,blk,'Value',num2str(hRef));

% Randomize initial water height
hInit = rand;
blk = [mdl '/Water-Tank System/H'];
in = setBlockParameter(in,blk,'InitialCondition',num2str(hInit));

end

Function to linearize and compute the stability margins of the SISO water tank system.

function margin = localStabilityAnalysis(mdl)

io(1) = linio([mdl '/Sum1'],1,'input');
io(2) = linio([mdl '/Water-Tank System'],1,'openoutput');
op = operpoint(mdl);
op.Time = 5;
linsys = linearize(mdl,io,op);

margin = allmargin(linsys);
end
