Rotate RF PCB shape about z-axis
Since R2021b
c = rotateZ(shape,angle)
c = rotateZ(shape,angle) rotates a shape by the specified angle about the z-axis.
shape
angle
example
collapse all

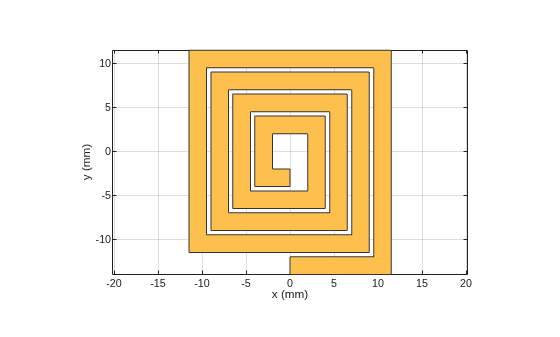

Create and display a spiral trace.
trace = traceSpiral; show(trace)

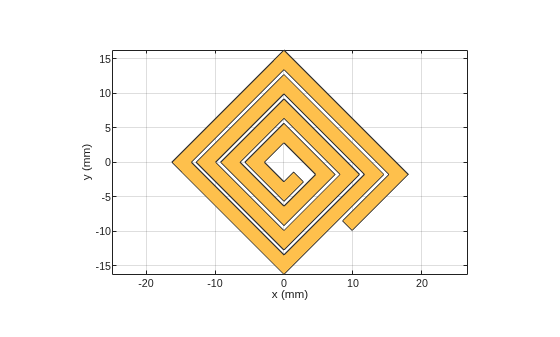

Rotate the spiral trace by 45 degrees about the z-axis.
traceRotZ = rotateZ(trace,45);
Display the rotated shape.
show(traceRotZ)
RF PCB shape created using custom elements and shape objects of RF PCB Toolbox™, specified as an object.
Example: shape = bendCurved; specifies the shape as a bendCurved object.
shape = bendCurved;
bendCurved
Angle of rotation, specified as a scalar in degrees.
Example: 45 rotates the shape around the z-axis by 45 degrees.
45
Data Types: double
double
Introduced in R2021b
add | subtract | area | intersect | rotate | rotateX | rotateY | translate | show | mesh | plot | scale
add
subtract
area
intersect
rotate
rotateX
rotateY
translate
show
mesh
plot
scale
