robotPlatform
Description
The robotPlatform
object represents a robot platform in a given
robot scenario. Use the platform to define and track the trajectory of an object in the
scenario. To simulate sensor readings for the platform, mount sensors such as the gpsSensor
,
insSensor
, and
robotLidarPointCloudGenerator
System object™ to the platform as robotSensor
objects. Add a body mesh to the platform for visualization using the updateMesh
object function.
Creation
Description
creates a platform with a specified name platform
= robotPlatform(name
,scenario
)name
and adds it to the
scenario, specified as a robotScenario
object. Specify the name
argument as a string scalar. The
name
argument sets the Name
property.
specifies options using one or more name-value arguments. You can specify properties as
name-value arguments as well.platform
= robotPlatform(___,Name=Value
)
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: StartTime=10
sets the initial time of the platform
trajectory to 10 seconds.
BaseTrajectory
— Trajectory for robot platform base motion
[]
(default) | waypointTrajectory
object | polynomialTrajectory
object
Trajectory for robot platform base motion, specified as a waypointTrajectory
or polynomialTrajectory
object. By default, the platform is assumed to be
stationary and at the scenario origin. To move the platform at each simulation step
of the scenario, use the move
object function.
Note
The robotPlatform
object must specify the same
ReferenceFrame
property as specified in the trajectory
object.
IsBinaryOccupied
— Occupied state of binary occupancy map
false
(default) | true
Occupied state of binary occupancy map, specified as true
or
false
. Set the value as true
if robot
platform is incorporated in the binary occupancy map.
Data Types: logical
InitialBasePosition
— Initial robot platform base position
[0 0 0]
(default) | vector of form [x
y
z]
Initial robot platform base position, specified as a vector of the form
[x
y
z]
. Only specify this name-value argument if not
specifying the BaseTrajectory property.
Data Types: single
| double
InitialBaseVelocity
— Initial velocity of robot platform base
[0 0 0]
(default) | vector of form [vx
vy
vz]
Initial velocity of robot platform base, specified as a vector of the form
[vx
vy
vz]
. Only specify this name-value argument if not
specifying the BaseTrajectory property.
Data Types: single
| double
InitialBaseAcceleration
— Initial acceleration of robot platform base
[0 0 0]
(default) | vector of form [ax
ay
az]
Initial acceleration of robot platform base, specified as a vector of the form
[ax
ay
az]
. Only specify this name-value argument if not
specifying the BaseTrajectory property.
Data Types: single
| double
InitialBaseOrientation
— Initial robot platform base orientation
[1 0 0 0]
(default) | vector of form [w
x
y
z]
Initial robot platform base orientation, specified as a vector of the form
[w
x
y
z]
, representing a quaternion. Only specify this
name-value argument if not specifying the BaseTrajectory property.
Data Types: single
| double
InitialBaseAngularVelocity
— Initial angular velocity of robot platform base
[0 0 0]
(default) | vector of form [wx
wy
wz]
Initial angular velocity of robot platform base, specified as a vector of the
form [wx
wy
wz]
. The magnitude of the vector defines the angular
speed in radians per second. The xyz-coordinates define the axis
of clockwise rotation. Only specify this name-value argument if not specifying the
BaseTrajectory property.
Data Types: single
| double
InitialJointConfiguration
— Initial joint configuration of rigidBodyTree
-based robot platform
homeConfiguration
(default) | N-element vector
Initial joint configuration of the rigidBodyTree
-based robot
platform, specified as an N-element vector. N
is the total number of joints associated with the rigidBodyTree
object.
Data Types: single
| double
ReferenceFrame
— Reference frame for computing robot platform motion
"ENU"
(default) | "NED"
Reference frame for computing robot platform motion, specified as
"ENU"
or "NED"
, which matches any reference
frame in the robotScenario
. All platform motion is computed relative to this inertial
frame.
Data Types: string
| char
RigidBodyTree
— Rigid body tree robot platform
[]
(default) | rigidBodyTree
object
Rigid body tree robot platform, specified as a rigidBodyTree
object.
StartTime
— Initial time of robot platform trajectory
0
(default) | scalar in seconds
Initial time of the robot platform trajectory, specified as a scalar in seconds.
Data Types: single
| double
Collision
— Add collision object to platform mesh
"default"
(default) | false
| "mesh"
| "capsule"
| collisionBox
object | collisionCapsule
object | collisionCylinder
object | collisionMesh
object | collisionSphere
object
Add collision object to the platform mesh, specified as one of these values:
false
— Keeps the platform mesh collision object free. Clear existing collision forrigidBodyTree
-based platform."default"
— Keeps existing collision mesh forrigidBodyTree
-based platform. For other platforms, keeps the platform mesh collision free."mesh"
— Fits collision object such ascollisionBox
,collisionCylinder
,collisionMesh
, andcollisionSphere
based on the platform mesh type."capsule"
— Fits collision capsule object with the platform mesh.One of these externally created collision objects:
The rigidBodyTree
-based platform accepts externally created
collision mesh only for base body.
CollisionOffset
— Transformation of collision mesh relative to platform mesh
eye(4)
(default) | 4-by-4 homogeneous transformation matrix
Transformation of collision mesh relative to the platform mesh, specified as a
4-by-4 homogeneous transformation matrix. Use the CollisionOffset
input for rigidBodyTree
-based
platforms only when the Collision
input is specified as an externally created collision
object.
Data Types: single
| double
Properties
Name
— Identifier for robot platform
string scalar | character vector
Identifier for the robot platform, specified as a string scalar or character vector. The name must be unique within the scenario.
Data Types: char
| string
BaseTrajectory
— Trajectory for robot platform base motion
[]
(default) | waypointTrajectory
object | polynomialTrajectory
object
Trajectory for the robot platform base motion, specified as a waypointTrajectory
or polynomialTrajectory
object. By default, the object assumes the base of the
platform is stationary and at the scenario origin. When specified as a
waypointTrajectory
or polynomialTrajectory
object,
base of the platform is moved along the trajectory during the scenario simulation. To
move the platform at each simulation step of the scenario, use the move
object function.
Note
The robotPlatform
object must specify the same
ReferenceFrame
property as specified in the trajectory
object.
ReferenceFrame
— Reference frame for computing robot platform motion
"ENU"
(default) | "NED"
Reference frame for computing robot platform motion, specified as
"ENU"
or "NED"
, which matches any reference
frame in the robotScenario
. The object computes all platform motion relative to this
inertial frame.
Data Types: char
| string
RigidBodyTree
— Rigid body tree robot platform
[]
(default) | rigidBodyTree
object
Rigid body tree robot platform, specified as a rigidBodyTree
object.
BaseMesh
— Robot platform base body mesh
[1 0.5 0.3]
(default) | extendedObjectMesh
object
Robot platform base body mesh, specified as an extendedObjectMesh
object. The body mesh describes the 3-D model of the platform for visualization
purposes. The body mesh is used to generate 3-D point cloud. The default mesh is a
cuboid of the form [xlength
ylength
zlength]
in meters.
BaseMeshColor
— Robot platform base body mesh color
[1 0 0]
(default) | RGB triplet
Robot platform base body mesh color when displayed in the scenario, specified as an RGB triplet.
Data Types: single
| double
BaseMeshTransform
— Transform between robot platform base body and mesh frames
eye(4)
(default) | 4-by-4 homogeneous transformation matrix
Transform between robot platform base body and mesh frames, specified as a 4-by-4 homogeneous transformation matrix that maps points in the platform mesh frame to points in the body frame.
Data Types: single
| double
IsBinaryOccupied
— Status of robot platform in binary occupancy map
false
(default) | true
Status of robot platform in binary occupancy map, specified as
true
or false
.
Data Types: logical
CollisionMesh
— Robot platform base collision mesh
[]
(default) | collisionBox
object | collisionCapsule
object | collisionCylinder
object | collisionMesh
object | collisionSphere
object
Collision mesh associated with the robot platform base body mesh, specified as a
collision object. The supported collision object types are: collisionBox
, collisionCapsule
, collisionCylinder
, collisionMesh
, and collisionSphere
.
CollisionMeshOffset
— Transform between robot platform base body and collision mesh
eye(4)
(default) | 4-by-4 homogeneous transformation matrix
Transform between the robot platform base body and collision mesh, specified as a 4-by-4 homogeneous transformation matrix.
Data Types: single
| double
Sensors
— Sensors mounted on robot platform
[]
(default) | array of robotSensor
objects
Sensors mount on robot platform, specified as an array of robotSensor
objects.
Object Functions
attach | Attach target robot platform to source robot platform |
checkCollision | Check collision between robot platform and target bodies |
detach | Detach target robot platform from source robot platform |
move | Move robot platform in scenario |
read | Read robot platform in scenario |
updateMesh | Update robot platform body mesh |
Examples
Create and Simulate Robot Scenario
Create a robot scenario.
scenario = robotScenario(UpdateRate=100,StopTime=1);
Add the ground plane and a box as meshes.
addMesh(scenario,"Plane",Size=[3 3],Color=[0.7 0.7 0.7]); addMesh(scenario,"Box",Size=[0.5 0.5 0.5],Position=[0 0 0.25], ... Color=[0 1 0])
Create a waypoint trajectory for the robot platform using an ENU reference frame.
waypoint = [0 -1 0; 1 0 0; -1 1 0; 0 -1 0]; toa = linspace(0,1,length(waypoint)); traj = waypointTrajectory("Waypoints",waypoint, ... "TimeOfArrival",toa, ... "ReferenceFrame","ENU");
Create a rigidBodyTree
object of the TurtleBot 3 Waffle Pi robot with loadrobot
.
robotRBT = loadrobot("robotisTurtleBot3WafflePi");
Create a robot platform with trajectory.
platform = robotPlatform("TurtleBot",scenario, ... BaseTrajectory=traj);
Set up platform mesh with the rigidBodyTree
object.
updateMesh(platform,"RigidBodyTree",Object=robotRBT)
Create an INS sensor object and attach the sensor to the platform.
ins = robotSensor("INS",platform,insSensor("RollAccuracy",0), ... UpdateRate=scenario.UpdateRate);
Visualize the scenario.
[ax,plotFrames] = show3D(scenario); axis equal hold on
In a loop, step through the trajectory to output the position, orientation, velocity, acceleration, and angular velocity.
count = 1; while ~isDone(traj) [Position(count,:),Orientation(count,:),Velocity(count,:), ... Acceleration(count,:),AngularVelocity(count,:)] = traj(); count = count+1; end
Create a line plot for the trajectory. First create the plot with plot3
, then manually modify the data source properties of the plot. This improves the performance of the plotting.
trajPlot = plot3(nan,nan,nan,"Color",[1 1 1],"LineWidth",2); trajPlot.XDataSource = "Position(:,1)"; trajPlot.YDataSource = "Position(:,2)"; trajPlot.ZDataSource = "Position(:,3)";
Set up the simulation. Then, iterate through the positions and show the scene each time the INS sensor updates. Advance the scene, move the robot platform, and update the sensors.
setup(scenario) for idx = 1:count-1 % Read sensor readings. [isUpdated,insTimestamp(idx,1),sensorReadings(idx)] = read(ins); if isUpdated % Use fast update to move platform visualization frames. show3D(scenario,FastUpdate=true,Parent=ax); % Refresh all plot data and visualize. refreshdata drawnow limitrate end % Advance scenario simulation time. advance(scenario); % Update all sensors in the scene. updateSensors(scenario) end hold off
Perform Pick and Place in Robot Scenario
Create a robotScenario
object.
scenario = robotScenario(UpdateRate=1,StopTime=10);
Create a rigidBodyTree
object of the Franka Emika Panda manipulator using loadrobot
.
robotRBT = loadrobot("frankaEmikaPanda");
Create a rigidBodyTree
-based robotPlatform
object using the manipulator model.
robot = robotPlatform("Manipulator",scenario, ... RigidBodyTree=robotRBT);
Create a non-rigidBodyTree
-based robotPlatform
object of a box to manipulate. Specify the mesh type and size.
box = robotPlatform("Box",scenario,Collision="mesh", ... InitialBasePosition=[0.5 0.15 0.278]); updateMesh(box,"Cuboid",Collision="mesh",Size=[0.06 0.06 0.1])

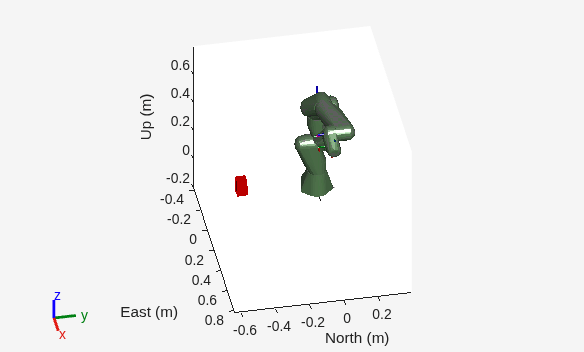

Visualize the scenario.
ax = show3D(scenario,Collisions="on");
view(79,36)
light
Specify the initial and the pick-up joint configuration of the manipulator, to move the manipulator from its initial pose to close to the box.
initialConfig = homeConfiguration(robot.RigidBodyTree);
pickUpConfig = [0.2371 -0.0200 0.0542 -2.2272 0.0013 ...
2.2072 -0.9670 0.0400 0.0400];
Create an RRT path planner using the manipulatorRRT
object, and specify the manipulator model.
planner = manipulatorRRT(robot.RigidBodyTree,scenario.CollisionMeshes); planner.IgnoreSelfCollision = true;
Plan the path between the initial and the pick-up joint configurations. Then, to visualize the entire path, interpolate the path into small steps.
rng("default")
path = plan(planner,initialConfig,pickUpConfig);
path = interpolate(planner,path,25);
Set up the simulation.
setup(scenario)
Check the collision before manipulator picks up the box.
checkCollision(robot,"Box", ... IgnoreSelfCollision="on")
ans = logical
0
Move the joints of the manipulator along the path and visualize the scenario.
helperRobotMove(path,robot,scenario,ax)
Check the collision after manipulator picks up the box.
checkCollision(robot,"Box", ... IgnoreSelfCollision="on")
ans = logical
1
Use the attach
function to attach the box to the gripper of the manipulator.
attach(robot,"Box","panda_hand", ... ChildToParentTransform=trvec2tform([0 0 0.1]))
Specify the drop-off joint configuration of the manipulator to move the manipulator from its pick-up pose to the box drop-off pose.
dropOffConfig = [-0.6564 0.2885 -0.3187 -1.5941 0.1103 ...
1.8678 -0.2344 0.04 0.04];
Plan the path between the pick-up and drop-off joint configurations.
path = plan(planner,pickUpConfig,dropOffConfig); path = interpolate(planner,path,25);
Move the joints of the manipulator along the path and visualize the scenario.
helperRobotMove(path,robot,scenario,ax)
Use the detach
function to detach the box from the manipulator gripper.
detach(robot)
Plan the path between the drop-off and initial joint configurations to move the manipulator from its box drop-off pose to its initial pose.
path = plan(planner,dropOffConfig,initialConfig); path = interpolate(planner,path,25);
Move the joints of the manipulator along the path and visualize the scenario.
helperRobotMove(path,robot,scenario,ax)
Helper function to move the joints of the manipulator.
function helperRobotMove(path,robot,scenario,ax) for idx = 1:size(path,1) jointConfig = path(idx,:); move(robot,"joint",jointConfig) show3D(scenario,fastUpdate=true,Parent=ax,Collisions="on"); drawnow advance(scenario); end end
Version History
Introduced in R2022a
Commande MATLAB
Vous avez cliqué sur un lien qui correspond à cette commande MATLAB :
Pour exécuter la commande, saisissez-la dans la fenêtre de commande de MATLAB. Les navigateurs web ne supportent pas les commandes MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
