writefile

Generate URDF file for rigid body tree robot model

Since R2023b

collapse all in page

Syntax

writefile(exporter)
writefile(___,Name=Value)

Description

writefile(exporter) generates a unified robot description format (URDF) file for the rigid body tree robot model specified in the urdfExporter object exporter.

example

writefile(___,Name=Value) specifies additional options using one or more name-value pair arguments in addition to the input argument in the previous syntax.

Examples

collapse all

Open Live Script

This example shows how to load a robot as a rigidBodyTree model and export the robot details as a URDF file.

Load a rigidBodyTree robot model. The rigidBodyTree object contains kinematic and dynamic constraints and visual meshes for the specified robot geometry.

robotRBT = loadrobot("abbIrb120");

Create a rigidBody object with a unique name.

body1 = rigidBody("link1");

By default, the rigidBody object comes with a fixed joint. Replace the joint by assigning a new rigidBodyJoint object to the body1.Joint property.

body1.Joint = rigidBodyJoint(jnt1="revolute");

Add the rigidBody object to the rigidBodyTree robot model. Specify the body name to which you are attaching the rigid body. Use the base name of the tree for the first body.

basename = robotRBT.BaseName;
addBody(robotRBT,body1,basename);

Confirm that the rigid body and joint are correct by using showdetails.

showdetails(robotRBT)
--------------------
Robot: (9 bodies)

 Idx     Body Name            Joint Name            Joint Type     Parent Name(Idx)   Children Name(s)
 ---     ---------            ----------            ----------     ----------------   ----------------
   1          base        base_link-base                 fixed         base_link(0)
   2        link_1               joint_1              revolute         base_link(0)   link_2(3)
   3        link_2               joint_2              revolute            link_1(2)   link_3(4)
   4        link_3               joint_3              revolute            link_2(3)   link_4(5)
   5        link_4               joint_4              revolute            link_3(4)   link_5(6)
   6        link_5               joint_5              revolute            link_4(5)   link_6(7)
   7        link_6               joint_6              revolute            link_5(6)   tool0(8)
   8         tool0          joint6-tool0                 fixed            link_6(7)
   9         link1                  jnt1              revolute         base_link(0)
--------------------

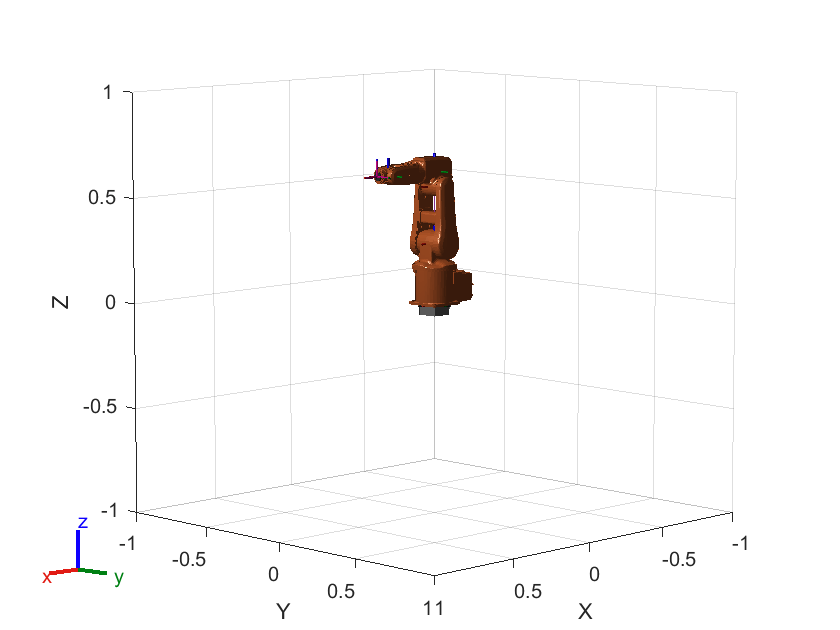

Visualize the robot model.

show(robotRBT)

ans =
  Axes (Primary) with properties:

             XLim: [-1 1]
             YLim: [-1 1]
           XScale: 'linear'
           YScale: 'linear'
    GridLineStyle: '-'
         Position: [0.1300 0.1100 0.7750 0.8150]
            Units: 'normalized'

  Show all properties

Add visuals to the robot model.

body9 = robotRBT.Bodies{9};
addVisual(body9,box=[0.1 0.1 0.1]);

Visualize the robot model with the added visuals.

show(robotRBT)

ans =
  Axes (Primary) with properties:

             XLim: [-1 1]
             YLim: [-1 1]
           XScale: 'linear'
           YScale: 'linear'
    GridLineStyle: '-'
         Position: [0.1300 0.1100 0.7750 0.8150]
            Units: 'normalized'

  Show all properties

Create a URDF exporter object. Package the mesh and URDF details in one folder.

exporter = urdfExporter(robotRBT);
exporter.ExportMesh = true;

Write the packaged mesh and URDF details into the specified file.

writefile(exporter,OutputfileName="abbIrb120.urdf")

Input Arguments

collapse all

URDF exporter specified as a urdfExporter object.

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: writefile(exporter, OutputfileName="abbIrb120.urdf")

Name of the generated URDF file, specified as a string scalar or character vector. You can also specify this input as a pathname corresponding to the location at which you want to generate the URDF file.

Example: "abbIrb120.urdf", "C:/URDF/abbIrb120.urdf"

Data Types: char | string

Robot name attribute corresponding to the robot name tag in the generated URDF file, specified as a string scalar or character vector. The function returns as a valid robot model name such as "abbIrb120", "abbIrb120T", "abbIrb1600".

Example: "abbIrb120"

Data Types: char | string

Option to enable mesh file export, specified as a numeric or logical value of 0 (false) or 1 (true). The generated ZIP package contains the output URDF files and mesh files.

Data Types: logical | numeric

Maximum permissible difference in the values under tags in exported URDF, specified as a positive scalar. The default value is sqrt(eps), where eps returns the distance from 1.0 to the next largest double-precision number, which is equal to 2-52. For more information, see eps.

Data Types: single | double

Version History

Introduced in R2023b
