Sample Uncertain Systems
The command usample
randomly samples the uncertain system at a specified number of points. Randomly sample an uncertain system at 20 points in its modeled uncertainty range. This gives a 20-by-1 ss
array. Consequently, all analysis tools from Control System Toolbox™ are available.
p1 = ureal('p1',10,'Percentage',50); p2 = ureal('p2',3,'PlusMinus',[-.5 1.2]); p3 = ureal('p3',0); A = [-p1 p2; 0 -p1]; B = [-p2; p2+p3]; C = [1 0; 1 1-p3]; D = [0; 0]; sys = ss(A,B,C,D) % Create uncertain state-space model
Uncertain continuous-time state-space model with 2 outputs, 1 inputs, 2 states. The model uncertainty consists of the following blocks: p1: Uncertain real, nominal = 10, variability = [-50,50]%, 2 occurrences p2: Uncertain real, nominal = 3, variability = [-0.5,1.2], 2 occurrences p3: Uncertain real, nominal = 0, variability = [-1,1], 2 occurrences Type "sys.NominalValue" to see the nominal value and "sys.Uncertainty" to interact with the uncertain elements.
manysys = usample(sys,20); size(manysys)
20x1 array of state-space models. Each model has 2 outputs, 1 inputs, and 2 states.

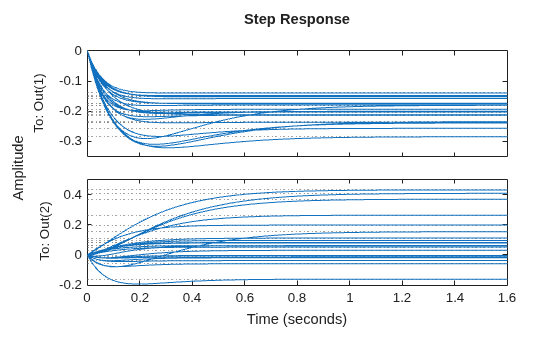

stepplot(manysys)
The command stepplot
can be called directly on a uss
object. The default behavior samples the uss
object at 20 instances, and plots the step responses of these 20 models, as well as the nominal value.
The same features are available for other analysis commands such as bodeplot
, bodemag
, impulse
, and nyquist
.
