Display and Navigate Through Web Views

Display Web Views After Export

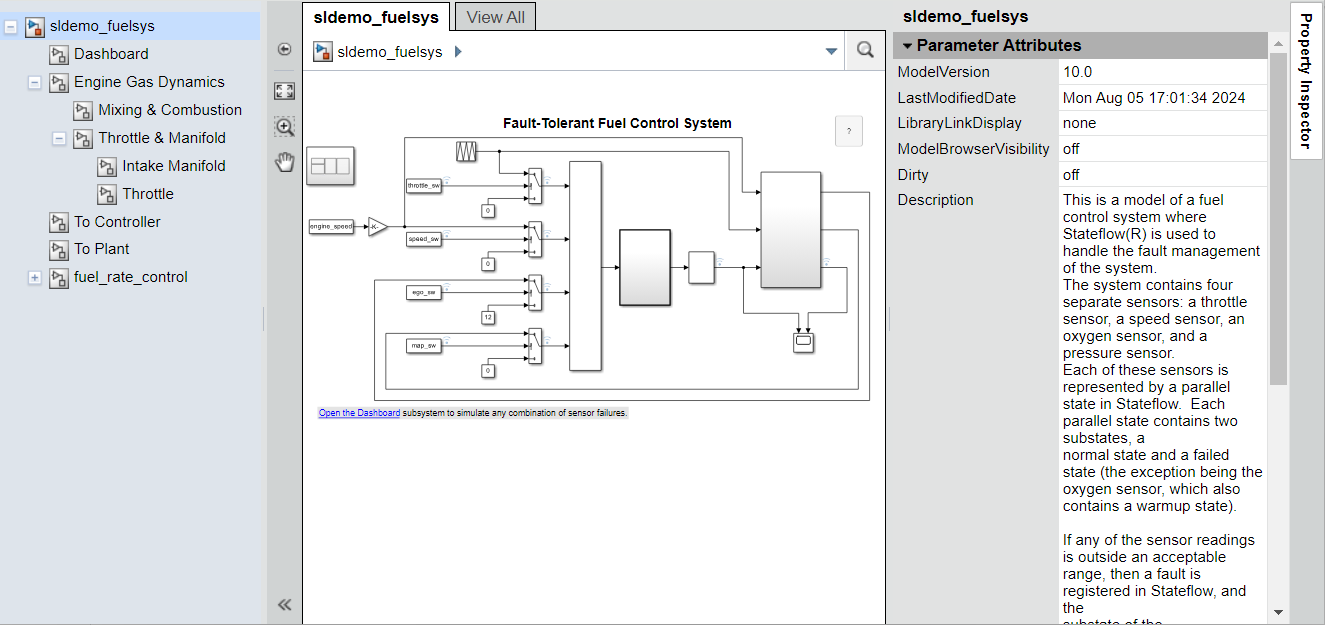

When you export a Web view using the Web View dialog box or from the Report Explorer Web View pane, the Web view appears in your system web browser.

Open Generated Web Views in Web Browser

To open a Web view file in a web browser, navigate to the folder that contains the Web view files, then open the webview.html file. For details about where the files are located and how they are packaged, see Web View Files. You might need to configure your browser to open Web views.

 MATLAB Web Browser

You do not need to configure the built-in MATLAB^® web browser to view Web views. To open a Web view using the built-in MATLAB web browser:

1. Navigate to the folder containing your Web view package.

2. In the Command Window, enter:

   rptview webview.html


 Google Chrome

You need to run the Google Chrome^® browser with an execution flag that allows the Web view file to access other local files in the same folder.

On Macintosh, open a terminal window and enter:

open /Applications Google Chrome.app --allow-file-access-from-files

On Linux^®, open a terminal window and enter:

./chromium-browser --allow-file-access-from-files

On Windows^®, follow these steps to create a custom shortcut:

1. Locate and copy an existing Google Chrome shortcut. For example, to locate a shortcut file on Windows 10, click the Start button and type Chrome. Then right-click Google Chrome in the search results and select Open file location.

2. Right-click the new shortcut, select Properties, then select the Shortcut tab.

3. In the Target field, add a space after the existing text and append:

   --allow-file-access-from-files


4. Click OK.

Note

You must close all instances of Google Chrome for the settings to take effect.

 Microsoft Edge

Follow these steps to create a custom shortcut:

1. Locate and copy an existing Microsoft Edge^® shortcut. For example, to locate a shortcut file on Windows 10, click the Start button and type Edge. Then right-click on Microsoft Edge in the search results and select Open file location.

2. Right-click the new shortcut, select Properties, then select the Shortcut tab.

3. In the Target field, add a space after the existing text and append:

   --allow-file-access-from-files


4. Click OK.

Note

You must close all instances of Microsoft Edge for the settings to take effect.

 Safari

Follow these steps to configure Safari to allow the Web view file to access other local files in the same folder:

1. In the menu bar, click Safari.

2. Click Preferences, then click Advanced.

3. Select the Show Develop menu in menu bar. The Develop menu appears in the menu bar.



4. In the menu bar, click Develop.

5. Select Disable Local File Restrictions.



Note

If you open the Web view and the Safari browser displays the Unsupported Browser message, reload the page after you configure Safari.

 Firefox

Follow these steps to configure Firefox^® to allow the Web view file to access other local files in the same folder:

1. In the address bar, enter about:config and press Enter.

   • If the browser displays the Proceed with Caution warning message, click Accept the Risk and Continue.



2. In the search box, enter security.fileuri.strict_origin_policy and press Enter.

3. Ensure the value of the property is false. If necessary, click the Toggle button to set the value to false.



Note

If you open the Web view and the Firefox browser displays the Unsupported Browser message, reload the page after you configure Firefox.

 Internet Explorer

You cannot open Web view projects in the Internet Explorer^® browser.

View Contents of Systems

To see a thumbnail of the contents of all of systems in the Web view, click the View All tab.

To view the contents of a specific system, use one of these approaches:

• In the model viewer, double-click the system.

• In the model browser, select a system. To expose this pane, click Hide/Show Model Browser .

• Click the View All tab and click the thumbnail of a system.

To open a system in a separate tab, press CTRL and click the system.

View Block Parameters and Signal Properties

Click a block or signal in the model to see its parameters or properties in the Object Inspector pane.

Access Optional Web View Information

To view the model coverage optional Web view information in a Web view, you must have Simulink^® Coverage™ installed. To view the requirements optional Web view information in a Web view, you must have Requirements Toolbox™ installed. To access the information, click a highlighted block (for example, blocks with an orange border have requirements information). The information for that block appears in the Informer pane below the model.
