scaleFilterSections
Description
Examples
Scale Second-Order Section Matrix
Design a 14th-order elliptic bandpass filter with a lower passband frequency of rad/sample and a higher passband frequency of rad/sample. Specify 10 dB of passband ripple and 40 dB of stopband attenuation. Convert the zeros, poles, and gain to a cascaded transfer function format.
N = 14; [z,p,k] = ellip(N/2,10,40,[0.2 0.6]); [sos,g] = zp2sos(z,p,k);
Use scaleFilterSections

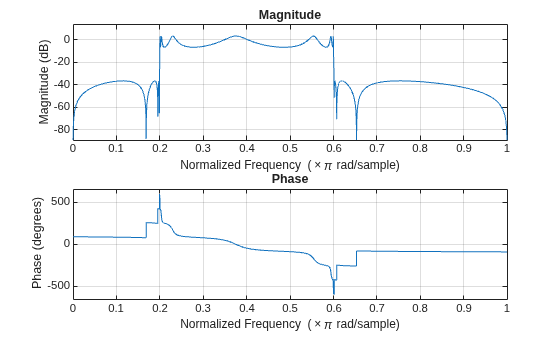

to scale the filter numerator coefficients so that the gain is uniformly distributed across all sections. Visualize the magnitude response of the filter.
ctfNum = sos(:,1:3); ctfDen = sos(:,4:end); ctfNumG = scaleFilterSections(ctfNum,g); sosG = [ctfNum ctfDen]; [h,f] = freqz(sosG,4096); plot(f/pi,mag2db(abs(h))) xlabel("Frequency (\times\pi rad/sample)") ylabel("Magnitude (dB)") ylim([-40 40]) grid
Input Arguments
ctf
— Cascade of numerator filter coefficients
matrix
Cascade of numerator filter coefficients, specified as a matrix. The number of rows
of ctf
equals L, the number of filter sections
in the cascade. The number of columns of ctf
equals N + 1, where N is the section order.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Complex Number Support: Yes
g
— Scale values
scalar | vector
Scale values, specified as a scalar or a vector with L + 1 elements, where L is the number of filter sections in the cascade.
If
g
is a scalar,scaleFilterSections
applies the value uniformly to all the cascade filter sections.If
g
is a vector,scaleFilterSections
applies each of the first L scale values to the corresponding filter section and the last scale value uniformly to all the filter sections.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Output Arguments
ctfg
— Scaled numerator filter coefficients
matrix
Scaled numerator filter coefficients, returned as a matrix.
ctfg
has the same size as ctf
.
Version History
Introduced in R2023b
