sbiosampleparameters
Generate parameters by sampling covariate model (requires Statistics and Machine Learning Toolbox software)
Syntax
Description
Examples
Sample Parameter Values from a Covariate Model
This example uses data collected on 59 preterm infants given phenobarbital during the first 16 days after birth. Each infant received an initial dose followed by one or more sustaining doses by intravenous bolus administration. A total of between 1 and 6 concentration measurements were obtained from each infant at times other than dose times, for a total of 155 measurements. Infant weights and APGAR scores (a measure of newborn health) were also recorded. Data was described in [1], a study funded by the NIH/NIBIB grant P41-EB01975.
Load the data.
load pheno.mat ds
Visualize the data.
t = sbiotrellis(ds,'ID','TIME','CONC','marker','o','markerfacecolor',[.7 .7 .7],'markeredgecolor','r','linestyle','none'); t.plottitle = 'States versus Time';
Create a one-compartment PK model with bolus dosing and linear clearance to model such data.
pkmd = PKModelDesign; pkmd.addCompartment('Central','DosingType','Bolus','EliminationType','linear-clearance',... 'HasResponseVariable',true,'HasLag',false); onecomp = pkmd.construct;
Suppose there is a correlation between the volume of the central compartment (Central
) and the weight of infants. You can define this parameter-covariate relationship using a covariate model that can be described as
,
where, for each ith infant, V
is the volume, θs (thetas) are fixed effects, η (eta) represents random effects, and WEIGHT
is the covariate.
covM = CovariateModel;
covM.Expression = {'Central = exp(theta1+theta2*WEIGHT+eta1)'};
Define the fixed and random effects. The column names of each table must have the names of fixed effects and random effects, respectively.
thetas = table(1.4,0.05,'VariableNames',{'theta1','theta2'}); eta1 = table(0.2,'VariableNames',{'eta1'});
Change the group label ID to GROUP as required by the sbiosampleparameters
function.
ds.Properties.VariableNames{'ID'} = 'GROUP';
Generate parameter values for the volumes of central compartments Central based on the covariate model for all infants in the data set.
phi = sbiosampleparameters(covM.Expression,thetas,eta1,ds);
You can then simulate the model using the sampled parameter values. For convenience, use the function-like interface provided by a SimFunction object.
First, construct a SimFunction object using the createSimFunction method, specifying the volume (Central) as the parameter, and the drug concentration in the compartment (Drug_Central) as the output of the SimFunction object, and the dosed species.
f = createSimFunction(onecomp,covM.ParameterNames,'Drug_Central','Drug_Central');
The data set ds contains dosing information for each infant, and the groupedData object provides a convenient way to extract such dosing information. Convert ds to a groupedData object and extract dosing information.
grpData = groupedData(ds);
doses = createDoses(grpData,'DOSE');

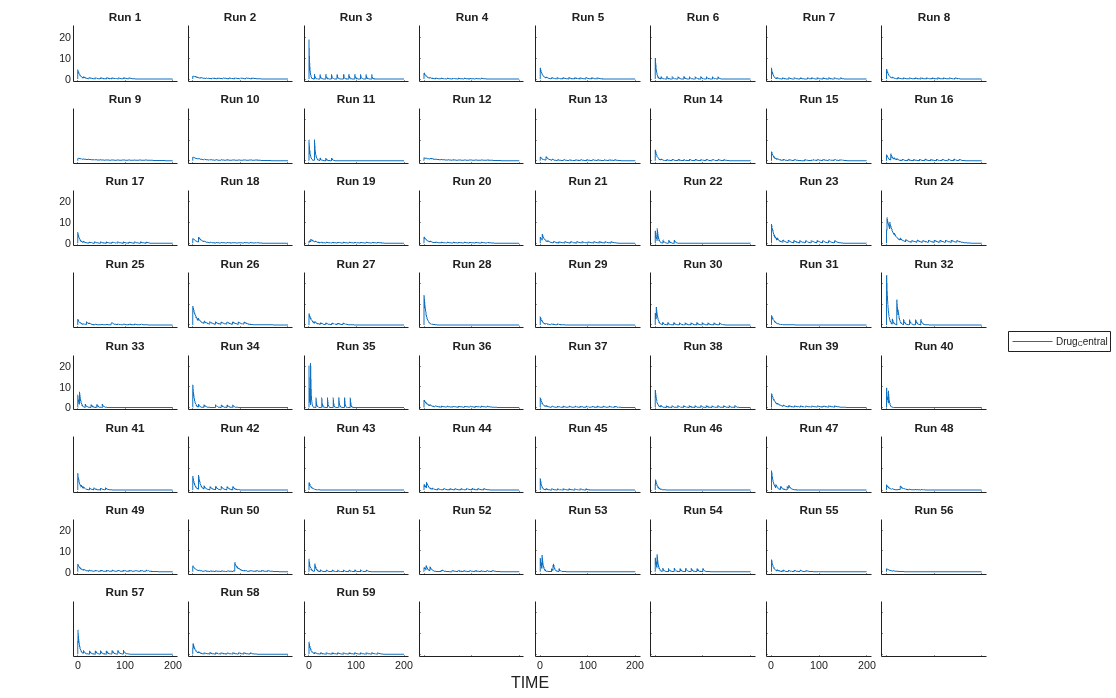

Simulate the model using the sampled parameter values from phi and the extracted dosing information of each infant, and plot the results. The ith run uses the ith parameter value in phi and dosing information of the ith infant.
t = sbiotrellis(f(phi,200,doses.getTable),[],'TIME','Drug_Central'); % Resize the figure. t.hFig.Position(:) = [100 100 1280 800];
Input Arguments
covexpr
— Covariate expressions
cell array of character vectors | string vector
Covariate expressions, specified as a cell array of character vectors or string vector that defines the parameter-covariate relationships.
If a model component name or covariate name is not a valid
MATLAB® variable name, surround it by square brackets when referring to it in the
expression. For example, if the name of a species is DNA
polymerase+, write [DNA polymerase+]
. If a covariate name
itself contains square brackets, you cannot use it in the expression.
See CovariateModel
to learn more
about covariate expressions.
thetas
— Fixed effects
table | groupedData
| dataset | numeric vector
Fixed effects, specified as a table, groupedData
, dataset, or
numeric vector containing values for fixed effect parameters defined in the
covariate expressions covexpr
. Fixed effect parameter
names must start with 'theta'
.
If
thetas
is a table,thetas.Properties.VariableNames
must match the names of the fixed effects.For example, suppose that you have three thetas:
thetaOne = 0.1
,theta2 = 0.2
, andtheta3 = 0.3
. You can create the corresponding table.thetas = table(0.1,0.2,0.3); thetas.Properties.VariableNames = {'thetaOne','theta2','theta3'}
thetas = 1×3 table thetaOne theta2 theta3 ________ ______ ______ 0.1 0.2 0.3
If
thetas
is a dataset,thetas.Properties.VarNames
must match the names of the fixed effects.If
thetas
is a numeric vector, the order of the values in the vector must be the same ascending ASCII dictionary order as the fixed effect names.Use the
sort
function to sort a cell array of character vectors to see the order.sort({'thetaOne','theta2','theta3'})
ans = 1×3 cell array {'theta2'} {'theta3'} {'thetaOne'}
Then specify the value of each theta in the same order.
thetas = [0.2 0.3 0.1];
omega
— Covariance matrix of random effects
table | groupedData
| dataset | matrix
Covariance matrix of random effects, specified as a table, groupedData
, dataset, or
matrix. Random effect parameter names must start with
'eta'
.
If
omega
is a table,omega.Properties.VariableNames
must match the names of the random effects. Specifying the row names (RowNames
) is optional, but if you do, they must also match the names of random effects.Suppose that you want to define a diagonal covariance matrix with three random effect parameters
eta1
,eta2
, andeta3
with the values0.1
,0.2
, and0.3
, respectively.You can construct the corresponding table.
eta1 = [0.1;0;0]; eta2 = [0;0.2;0]; eta3 = [0;0;0.3]; omega = table(eta1,eta2,eta3,'VariableNames',{'eta1','eta2','eta3'})
omega = 3×3 table eta1 eta2 eta3 ____ ____ ____ 0.1 0 0 0 0.2 0 0 0 0.3
If
omega
is a dataset,omega.Properties.VarNames
must match the names of the random effects. Specifying the row names (ObsNames
) is optional, but if you do, they must also match the names of random effects.If
omega
is a matrix, the rows and columns must have the same ascending ASCII dictionary order as the random effect names.Use the
sort
function to sort a cell array of character vectors to see the order.sort({'eta1','eta2','eta3'})
ans = 1×3 cell array {'eta1'} {'eta2'} {'eta3'}
ds
— Covariate data
dataset | table | groupedData
Covariate data, specified as a dataset, table, or groupedData
containing the
covariate data for all groups.
ds
must have a column for each covariate used in the
covariate model. The column names must match the names of the corresponding
covariates used in the covariate expressions.
n
— Number of rows in phi
scalar
Number of rows in phi
, specified as a scalar.
Output Arguments
covmodel
— Covariate model
CovariateModel
object
Covariate model, returned as a CovariateModel
object which
represents the model defined by covexpr
.
References
[1] Grasela Jr, T.H., Donn, S.M. (1985) Neonatal population pharmacokinetics of phenobarbital derived from routine clinical data. Dev Pharmacol Ther. 8(6), 374–83.
Version History
Introduced in R2014aR2022b: Covariate data no longer requires group column
The covariate data (the ds
input argument) no longer requires
a group column that specifies the group labels.
R2018b: Support for numeric vector and matrix inputs for fixed and random effects will be removed
Support for specifying a numeric vector for the fixed effects
(thetas
) or a matrix for the covariance matrix of random
effects (omega
) will be removed in a future release. Use a
table instead.
See Also
sbiosampleerror
| createSimFunction
| SimFunction object
| CovariateModel
