Force Sensor (PB)

Force sensor in position-based mechanical translational systems

Since R2024b

•

Libraries:
Simscape / Foundation Library / Translational / Sensors

Description

The Force Sensor (PB) block measures force in a position-based translational network. The sensor represents a rigid load cell. There is no position or velocity change across the sensor. The length of the sensor is 0 m.

Connections B and F are position-based mechanical translational conserving ports. The physical signal port f outputs the force applied in the direction from port B to port F.

Connect this sensor in series with the block where you want to measure the force, because force is a Through variable. For more information, see Through and Across Variables.

The Force Sensor (PB) block positive direction is from port B to port F. When you align the sensor positive direction with the network positive direction, then:

• A positive output signal indicates that the measured point in the network is in a state of compression.

• A negative output signal indicates that the measured point in the network is in a state of tension.

Alternatively, if the sensor positive direction is opposite of the network positive direction, then a positive output signal indicates that the network is in a state of tension and a negative output signal indicates that the network is in a state of compression.

Examples

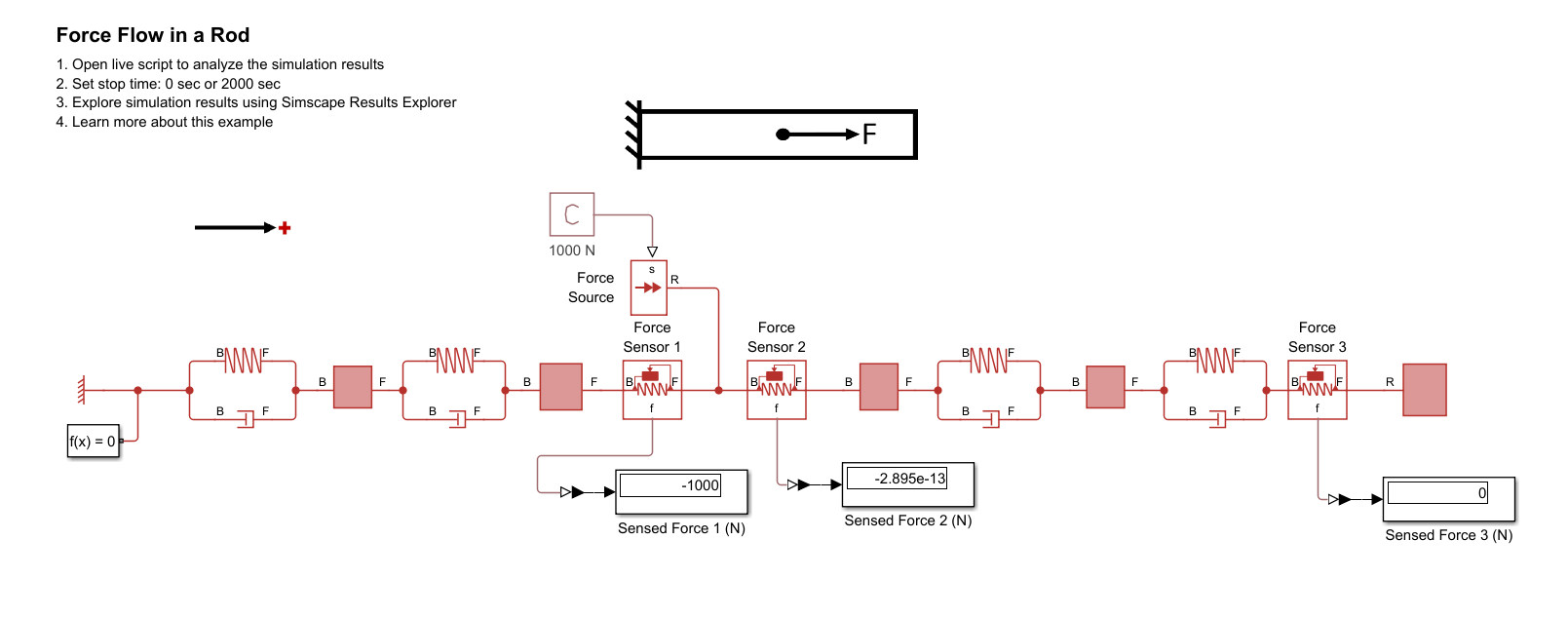

Force Flow in the Position-Based Translational Domain

Describes how to interpret forces in a Simscape™ position-based mechanical translational network. The example summarizes rules for interpreting the signs of logged forces and then considers forces in three types of systems: springs being pulled or pushed from different ends, simple systems with external forces applied at a mid-point, and a more complex system with an external force applied at the mid-point.

• Open Live Script

Ports

Output

f — Force, N

physical signal

Physical signal output port for force.

Conserving

B — Base port

position-based mechanical translational

Position-based mechanical translational conserving port that represents the base connection.

F — Follower port

position-based mechanical translational

Position-based mechanical translational conserving port that represents the follower connection.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2024b
