Transmission Line

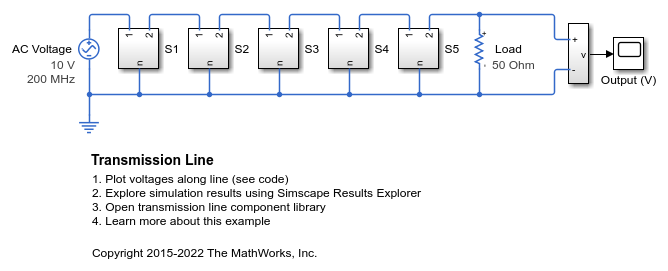

This example shows a lumped parameter transmission line model. It is built from a custom Simscape™ component that defines a single T-section segment. The model concatenates 50 segments, each of length 0.1m, thereby modeling a 5m length of coaxial cable. The transmission delay can be observed from the simulation results.

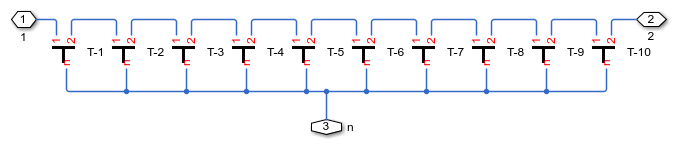

S1 Subsystem

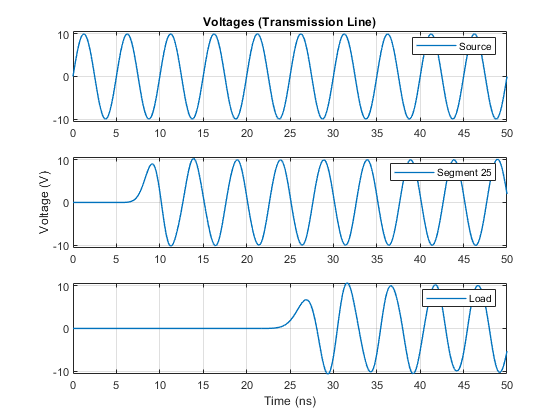

Simulation Results from Simscape Logging
