Simulink.Bus.cellToObject

Create Simulink.Bus objects from cell array of bus information

Syntax

Simulink.Bus.cellToObject(C)

Simulink.Bus.cellToObject(C,scope)

Description

Simulink.Bus.cellToObject(C) creates Simulink.Bus objects in the MATLAB^® base workspace from the cell array of bus information specified by C.

Simulink.Bus.cellToObject(C,scope) creates Simulink.Bus objects in the data dictionary specified by scope.

Examples

Create Simulink.Bus Object from Cell Array of Bus Information

This example shows how to create and use a cell array to generate Simulink.Bus objects in the base workspace.

To define the elements that the Simulink.Bus object contains, create an array of Simulink.BusElement objects or a cell array of the property values for the Simulink.BusElement objects.

When you define the elements in an array, specify the values that differ from the default.

elementsArray(1) = Simulink.BusElement;

elementsArray(2) = Simulink.BusElement;
elementsArray(2).Name = "b";
elementsArray(2).Min = -3;
elementsArray(2).Max = 3;
elementsArray(2).Unit = "m";

When you define the elements in a cell array of property values, specify the element name, dimensions, data type, complexity, and sampling mode. Optionally, specify the dimensions mode, minimum, maximum, units, and description.

elementsCellArray = {{'a',1,'double','real','Sample'}; ...
    {'b',1,'double','real','Sample','Fixed',-3,3,'m',''}};

In this example, elementsArray and elementsCellArray create identical Simulink.BusElement objects.

To create multiple Simulink.Bus objects at once, create a cell array with two subordinate cell arrays that define the Simulink.Bus objects. For each Simulink.Bus object, specify the bus name, header file, description, data scope, alignment, preservation of element dimensions, and elements.

busCell = {{'BusObjArray','','','Auto','-1','0',elementsArray}, ...
    {'BusObjCellArray','','','Auto','-1','0',elementsCellArray}};

Create the Simulink.Bus objects in the base workspace from the cell array of cell arrays.

Simulink.Bus.cellToObject(busCell)

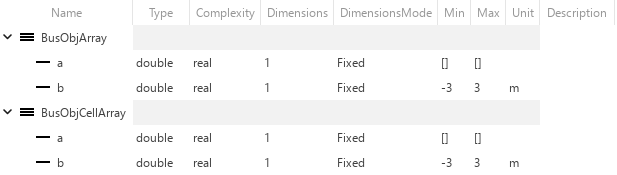

To compare the Simulink.Bus objects, open the Type Editor.

typeeditor

The Simulink.Bus objects are identical other than their names.

Input Arguments

C — Bus information

cell array of cell arrays

Bus information, specified as a cell array of cell arrays. Each subordinate cell array must contain this Simulink.Bus object information:

1. Bus name

2. Header file

3. Description

4. Data scope

5. Alignment

6. Preserve element dimensions

7. Elements

The elements field must contain arrays or cell arrays with this information for each of the Simulink.BusElement objects that the Simulink.Bus object references:

1. Element name

2. Dimensions

3. Data type

4. Sample time (optional) — If you specify a sample time, specify an inherited sample time (-1). A noninherited sample time causes an error during model compilation. For more information, see Simulink.BusElement objects no longer support the SampleTime property.

5. Complexity

6. Sampling mode

The elements field arrays or cell arrays can also contain this information:

7. Dimensions mode

8. Minimum

9. Maximum

10. Units

11. Description

scope — Data dictionary

Simulink.data.Dictionary object

Data dictionary, specified as a Simulink.data.Dictionary object. Before you use this argument, represent the dictionary with a Simulink.data.Dictionary object by using, for example, the Simulink.data.dictionary.create or Simulink.data.dictionary.open function.

If scope is empty, the function uses the MATLAB base workspace as the source of the Simulink.Bus objects.

Tips

The inverse function is Simulink.Bus.objectToCell.

Version History

Introduced before R2006a

R2020b: Simulink.BusElement objects no longer support the SampleTime property

The SampleTime property of Simulink.BusElement objects is no longer supported.

BusElement objects that specify a sample time cause an error during compile. To remove the sample time specification from a BusElement object, set its SampleTime to -1.

Simulink.Bus.cellToObject continues to accept cell arrays that specify sample time for bus elements. Simulink.Bus.objectToCell, Simulink.Bus.save, and Simulink.Bus.createObject continue to return cell arrays or arrays that include the sample time when it is noninherited. When the sample time is inherited (-1), they omit it. Similarly, the Type Editor and Model Explorer omit the sample time when it is inherited.

To specify the sample time for an element of a bus, use the SampleTime block parameter of corresponding blocks. For example, you can use In Bus Element, Out Bus Element, and Signal Specification blocks to specify sample time.

R2016b: Simulink.BusElement objects will no longer support the SamplingMode property

The SamplingMode property of Simulink.BusElement objects has been removed. Scripts that use the SamplingMode property of Simulink.BusElement objects continue to work. The Simulink.Bus.cellToObject function continues to require the SamplingMode field. The Simulink.Bus.objectToCell function continues to include the sampling mode in the output cell arrays. When you save Simulink.Bus object definitions to functions that use cell arrays, the cell arrays continue to include the sampling mode.

In a future release, support for the SamplingMode property will be removed.

To specify whether a signal is sample-based or frame-based, define the sampling mode of input signals at the block level instead of at the signal level.
