This example shows how to use the
linearize command to batch linearize a model at varying operating points.
Obtain the plant transfer function, modeled by the Water-Tank System block, for the
watertank model. You can analyze the batch linearization results to study the operating point effects on the model behavior.

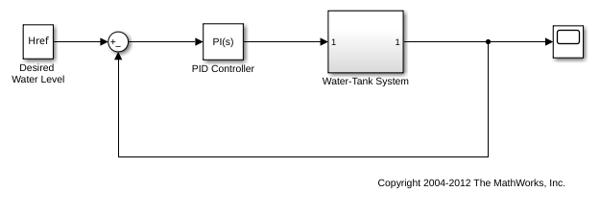

Open the model.
Specify the linearization I/Os.
ios(1) = linio('watertank/PID Controller',1,'input'); ios(2) = linio('watertank/Water-Tank System',1,'openoutput');
ios(2) specifies an open-loop output point; the loop opening eliminates the effects of feedback.
You can linearize the model using trimmed operating points, the model initial condition, or simulation snapshot times. For this example, linearize the model at specified simulation snapshot times.
ops_tsnapshot = [1,20];
Obtain the transfer function for the Water-Tank System block, linearizing the model at the specified operating points.
T = linearize('watertank',ios,ops_tsnapshot);
T is a 2 x 1 array of linearized continuous-time state-space models. The software computes the
T(:,:,1) model by linearizing
T(:,:,2) by linearizing
Use Control System Toolbox analysis commands to examine the properties of the linearized models in

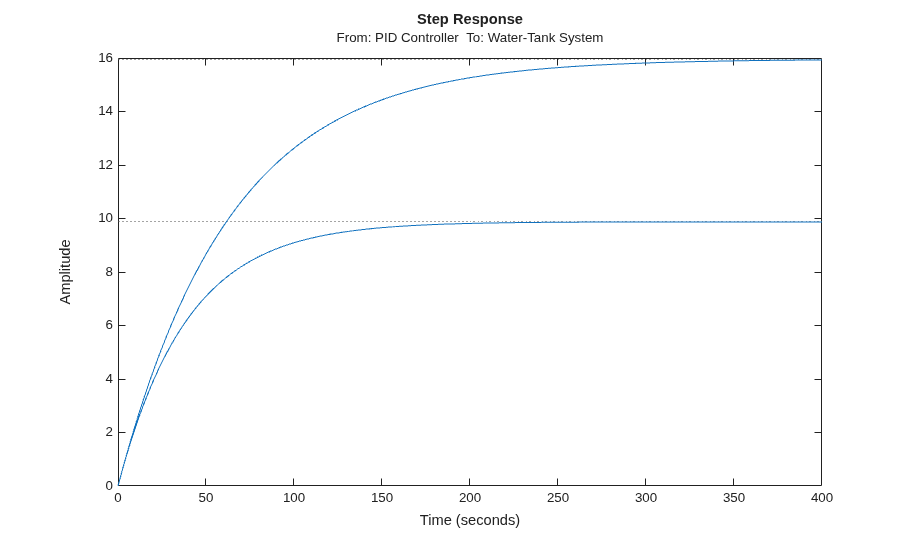

T. For example, examine the step response of the plant at both snapshot times.
