Validate Linearization in Time Domain

This example shows how to validate linearization results by comparing the simulated output of the nonlinear model and the linearized model.

Linearize Simulink® model. For example:

sys = 'watertank';
load_system(sys)
sys_io(1) = linio('watertank/PID Controller',1,'input');
sys_io(2) = linio('watertank/Water-Tank System',1,'openoutput');
opspec = operspec(sys);
op = findop(sys,opspec,findopOptions('DisplayReport','off'));
linsys = linearize(sys,op,sys_io);

If you linearized your model in Model Linearizer, you must export the linear model to the MATLAB® workspace. To do so in the Linear Analysis Workspace, right-click the model and select Export to MATLAB Workspace.

For time-domain validation of linearization, use frest.createStep to create a step signal.

input = frest.createStep(...
    'Ts',0.1,...T
    'StepTime',1,...
    'StepSize',1e-5,...
    'FinalTime',500);

Simulate the Simulink model using the input signal. simout is the simulated output of the nonlinear model.

[~,simout] = frestimate(sys,op,sys_io,input);

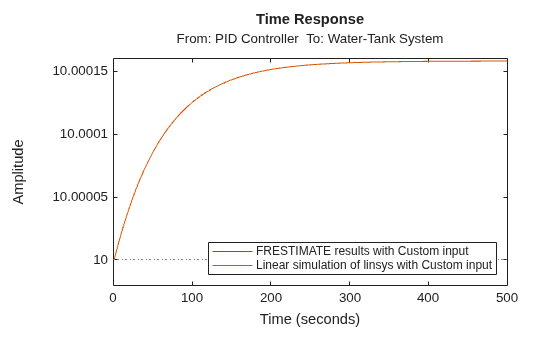

Simulate the linear model sys, and compare the time-domain responses of the linear and nonlinear Simulink model. The step response of the nonlinear model and linearized model are close, which validates that the linearization is accurate.

frest.simCompare(simout,linsys,input)
legend('FRESTIMATE results with Custom input',...
			'Linear simulation of linsys with Custom input',...
			'Location','SouthEast')

MATLAB figure

ans =
  Legend (FRESTIMATE results with Custom input with Custom input, Linear simulation of Linear simulation of linsys with Custom input with Custom input) with properties:

         String: {'FRESTIMATE results with Custom input with Custom input'  'Linear simulation of Linear simulation of linsys with Custom input with Custom input'}
       Location: 'southeast'
    Orientation: 'vertical'
       FontSize: 9
       Position: [-0.1118 0.1564 0.9977 0.0789]
          Units: 'normalized'

  Use GET to show all properties

Increase the amplitude of the step signal from 1.0e-5 to 1.

input = frest.createStep(...
    'Ts',0.1,...
    'StepTime',1,...
    'StepSize',1,...
    'FinalTime',500);

Repeat the frequency response estimation with the increased amplitude of the input signal, and compare this time response plot to the exact linearization results.

[~,simout2] = frestimate(sys,op,sys_io,input);

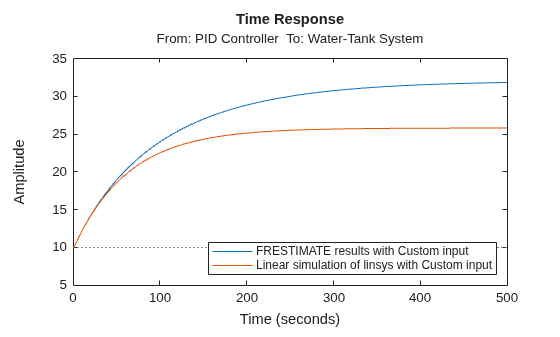

Using frest.simCompare, compare this time response plot to the exact linearization results. The step response of linear system you obtained using exact linearization does not match the step response of the estimated frequency response with large input signal amplitude. The linear model obtained using exact linearization does not match the full nonlinear model at amplitudes large enough to deviate from the specified operating point.

frest.simCompare(simout2,linsys,input)
legend('FRESTIMATE results with Custom input',...
			'Linear simulation of linsys with Custom input',...
			'Location','SouthEast')

MATLAB figure

ans =
  Legend (FRESTIMATE results with Custom input with Custom input, Linear simulation of Linear simulation of linsys with Custom input with Custom input) with properties:

         String: {'FRESTIMATE results with Custom input with Custom input'  'Linear simulation of Linear simulation of linsys with Custom input with Custom input'}
       Location: 'southeast'
    Orientation: 'vertical'
       FontSize: 9
       Position: [-0.1118 0.1564 0.9977 0.0789]
          Units: 'normalized'

  Use GET to show all properties
