slvnvharnessopts
Generate default options for
slvnvmakeharness
Description
generates the default configuration for running harnessopts
= slvnvharnessoptsslvnvmakeharness
.
Examples

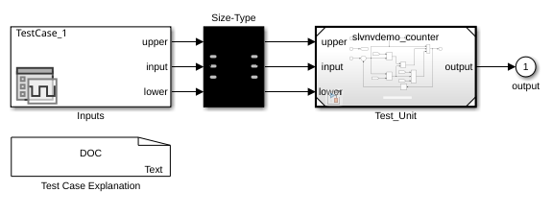

This example shows how to set harness options for a coverage harness.
Open the model using open_system
.

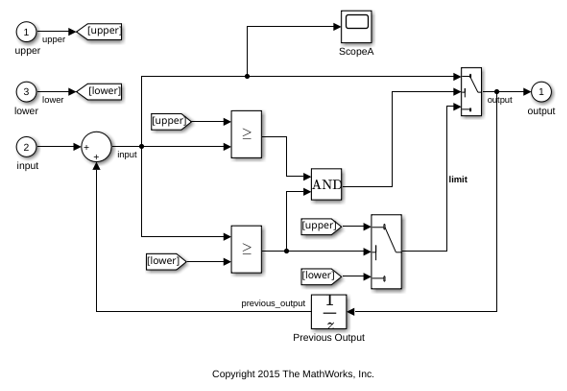

open_system('slvnvdemo_counter')
Create the harness options object using slvnvharnessopts
.
harnessOpts = slvnvharnessopts
harnessOpts = struct with fields: harnessFilePath: '' modelRefHarness: 1 usedSignalsOnly: 0 harnessSource: 'Signal Editor'
Use the harnessOpts
to create the harness file using slvnvmakeharness
.
harnessFile = slvnvmakeharness('slvnvdemo_counter', ... '', harnessOpts);
Output Arguments
Default harness options, returned as a structure. The
harnessopts
structure has the following
fields. If you do not specify
any values, default values
are used.
Field | Description |
---|---|
harnessFilePath | Specifies the file path for creating
the harness model. If an invalid path is
specified, Default:
|
modelRefHarness | Generates the test harness model that
includes Default:
|
usedSignalsOnly | When Default:
|
Version History
Introduced in R2010b
