sltest.testsequence.useScenario

Convert Test Sequence block to scenario mode

Syntax

sltest.testsequence.useScenario(blockPath,scenarioName)

Description

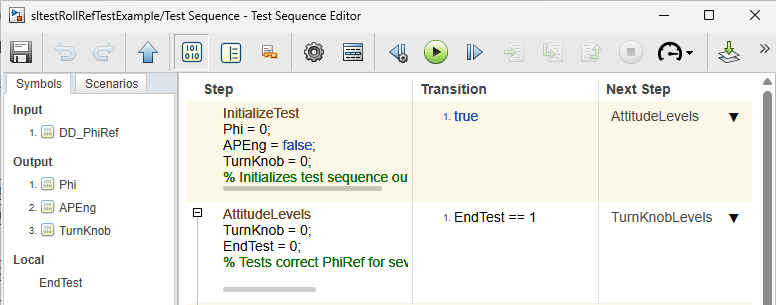

sltest.testsequence.useScenario(blockPath,scenarioName) converts the Test Sequence block, specified by blockPath, to use scenarios. Scenarios are tabs in the Test Sequence editor that enable you to define and run separate test sequences in a single Test Sequence block. After conversion, all existing steps in the block are moved to a scenario tab named scenarioName. If you convert a Test Sequence block to use scenarios, you cannot revert the block to non-scenario mode, even if it contains only one scenario.

Examples

Enable Scenarios in Test Sequence Block

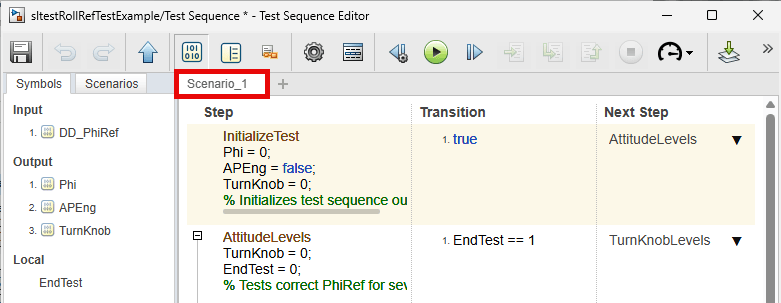

Change the Test Sequence block in the sltestRollRefTestModel to use scenarios and name the first scenario Scenario_1. Then, close the model without saving it.

openExample('sltestRollRefTestExample');

sltest.testsequence.useScenario...
   ('sltestRollRefTestExample/Test Sequence',...
   'Scenario_1');

close_system(Model,0)

Input Arguments

blockPath — Test Sequence block path or handle

string | character vector

Path to a Test Sequence block, including the block name, specified as a string or character vector. Instead of the block path, you can use a block handle.

Example: 'FanSpeedTestHarness/Test Sequence'

scenarioName — Name of scenario

character vector | string

Name of the scenario, specified as a string or character vector.

Example: 'Name','Scenario_1'

Version History

Introduced in R2020b
