Set Jumper Switches

Configure the jumpers or switches on the Zynq® SoC or Versal® board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card.

The jumper settings are different for each board. To learn more about the settings, see the board documentation.

Hardware Board Setup

To begin setting up board connection, make sure to:

  • Plug in the power cord.

  • Connect the hardware board to the host computer using a JTAG cable if you are using a JTAG connection.

  • Connect the hardware board to the host computer using an Ethernet cable if you are using an Ethernet connection.

  • Insert SD card to the SD card slot.

  • Connect USB cable to the USB-UART port.

Hardware Configuration

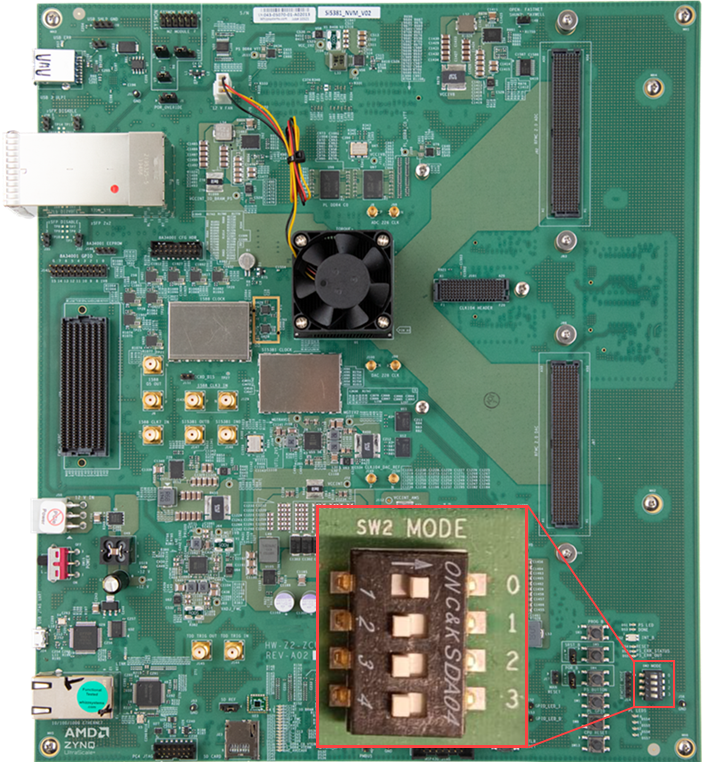

When you make the jumper or switch settings for the board, make sure that the board is turned off. To boot the board the from SD card, make the jumper or switch setting for the respective board as given below.

 Set Jumpers on ZC702

 Set Jumpers on ZC706

 Set Jumpers on ZedBoard

 Set Jumpers on ZCU102

 Set Jumpers on ZCU111

 Set Jumpers on ZCU216

 Set Jumpers on ZCU208

 Set Jumpers on VCK190

 Set Jumpers on ZCU106

 Set Jumpers on PicoZed 7030

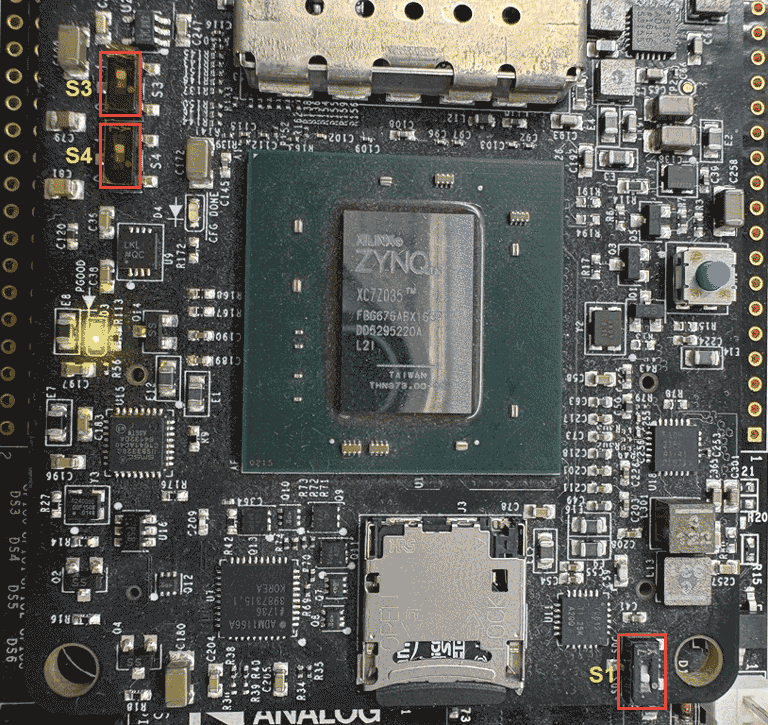

 Set Jumpers on ADI RF SOM
