fitted

Class: GeneralizedLinearMixedModel

Fitted responses from generalized linear mixed-effects model

Syntax

mufit = fitted(glme)

mufit = fitted(glme,Name,Value)

Description

mufit = fitted(glme) returns the fitted conditional response of the generalized linear mixed-effects model glme.

mufit = fitted(glme,Name,Value) returns the fitted response with additional options specified by one or more name-value pair arguments. For example, you can specify to compute the marginal fitted response.

Input Arguments

glme — Generalized linear mixed-effects model

GeneralizedLinearMixedModel object

Generalized linear mixed-effects model, specified as a GeneralizedLinearMixedModel object. For properties and methods of this object, see GeneralizedLinearMixedModel.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Conditional — Indicator for conditional response

true (default) | false

Indicator for conditional response, specified as the comma-separated pair consisting of 'Conditional' and one of the following.

Value	Description
true	Contributions from both fixed effects and random effects (conditional)
false	Contribution from only fixed effects (marginal)

To obtain fitted marginal response values, fitted computes the conditional mean of the response with the empirical Bayes predictor vector of random effects b set equal to 0. For more information, see Conditional and Marginal Response

Example: 'Conditional',false

Output Arguments

mufit — Fitted response values

n-by-1 vector

Fitted response values, returned as an n-by-1 vector, where n is the number of observations.

Examples

Plot Observed Versus Fitted Values

Load the sample data.

load mfr

This simulated data is from a manufacturing company that operates 50 factories across the world, with each factory running a batch process to create a finished product. The company wants to decrease the number of defects in each batch, so it developed a new manufacturing process. To test the effectiveness of the new process, the company selected 20 of its factories at random to participate in an experiment: Ten factories implemented the new process, while the other ten continued to run the old process. In each of the 20 factories, the company ran five batches (for a total of 100 batches) and recorded the following data:

• Flag to indicate whether the batch used the new process (newprocess)

• Processing time for each batch, in hours (time)

• Temperature of the batch, in degrees Celsius (temp)

• Categorical variable indicating the supplier (A, B, or C) of the chemical used in the batch (supplier)

• Number of defects in the batch (defects)

The data also includes time_dev and temp_dev, which represent the absolute deviation of time and temperature, respectively, from the process standard of 3 hours at 20 degrees Celsius.

Fit a generalized linear mixed-effects model using newprocess, time_dev, temp_dev, and supplier as fixed-effects predictors. Include a random-effects term for intercept grouped by factory, to account for quality differences that might exist due to factory-specific variations. The response variable defects has a Poisson distribution, and the appropriate link function for this model is log. Use the Laplace fit method to estimate the coefficients. Specify the dummy variable encoding as 'effects', so the dummy variable coefficients sum to 0.

The number of defects can be modeled using a Poisson distribution

$${\text{defects}}_{ij}\sim \text{Poisson}({\mu }_{ij})$$

This corresponds to the generalized linear mixed-effects model

$$\log ({\mu }_{ij})={\beta }_0+{\beta }_1{\text{newprocess}}_{ij}+{\beta }_2{\text{time}\text{\_}\text{dev}}_{ij}+{\beta }_3{\text{temp}\text{\_}\text{dev}}_{ij}+{\beta }_4{\text{supplier}\text{\_}\text{C}}_{ij}+{\beta }_5{\text{supplier}\text{\_}\text{B}}_{ij}+b_i,$$

where

• $${\text{defects}}_{ij}$$ is the number of defects observed in the batch produced by factory $$i$$ during batch $$j$$.

• $${\mu }_{ij}$$ is the mean number of defects corresponding to factory $$i$$ (where $$i=1,2,...,20$$) during batch $$j$$ (where $$j=1,2,...,5$$).

• $${\text{newprocess}}_{ij}$$, $${\text{time}\text{\_}\text{dev}}_{ij}$$, and $${\text{temp}\text{\_}\text{dev}}_{ij}$$ are the measurements for each variable that correspond to factory $$i$$ during batch $$j$$. For example, $${\text{newprocess}}_{ij}$$ indicates whether the batch produced by factory $$i$$ during batch $$j$$ used the new process.

• $${\text{supplier}\text{\_}\text{C}}_{ij}$$ and $${\text{supplier}\text{\_}\text{B}}_{ij}$$ are dummy variables that use effects (sum-to-zero) coding to indicate whether company C or B, respectively, supplied the process chemicals for the batch produced by factory $$i$$ during batch $$j$$.

• $$b_i\sim N(0,{\sigma }_b^2)$$ is a random-effects intercept for each factory $$i$$ that accounts for factory-specific variation in quality.

glme = fitglme(mfr,'defects ~ 1 + newprocess + time_dev + temp_dev + supplier + (1|factory)', ...
    'Distribution','Poisson','Link','log','FitMethod','Laplace','DummyVarCoding','effects');

Generate the fitted conditional mean values for the model.

mufit = fitted(glme);

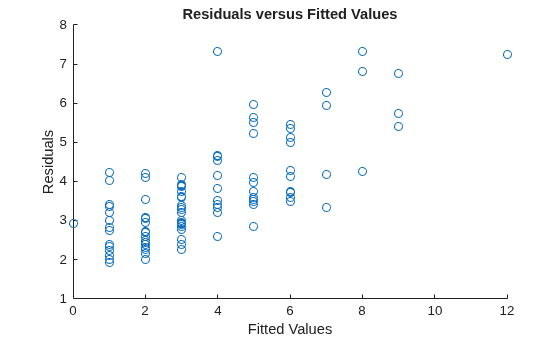

Create a scatterplot of the observed values versus fitted values.

figure
scatter(mfr.defects,mufit)
title('Residuals versus Fitted Values')
xlabel('Fitted Values')
ylabel('Residuals')

More About

Conditional and Marginal Response

A conditional response includes contributions from both fixed- and random-effects predictors. A marginal response includes contribution from only fixed effects.

Suppose the generalized linear mixed-effects model glme has an n-by-p fixed-effects design matrix X and an n-by-q random-effects design matrix Z. Also, suppose the estimated p-by-1 fixed-effects vector is $$\widehat{\beta }$$, and the q-by-1 empirical Bayes predictor vector of random effects is $$\widehat{b}$$.

The fitted conditional response corresponds to the 'Conditional',true name-value pair argument, and is defined as

$${\widehat{\mu }}_{cond}=g^{-1}\left({\widehat{\eta }}_{ME}\right),$$

where $${\widehat{\eta }}_{ME}$$ is the linear predictor including the fixed- and random-effects of the generalized linear mixed-effects model

$${\widehat{\eta }}_{ME}=X\widehat{\beta }+Z\widehat{b}+\delta .$$

The fitted marginal response corresponds to the 'Conditional',false name-value pair argument, and is defined as

$${\widehat{\mu }}_{mar}=g^{-1}\left({\widehat{\eta }}_{FE}\right),$$

where$${\widehat{\eta }}_{FE}$$ is the linear predictor including only the fixed-effects portion of the generalized linear mixed-effects model

$${\widehat{\eta }}_{FE}=X\widehat{\beta }+\delta .$$
