isanomaly

Find anomalies in data using one-class support vector machine (SVM)

    Description

    example

    tf = isanomaly(Mdl,Tbl) finds anomalies in the table Tbl using the OneClassSVM object Mdl and returns the logical array tf, whose elements are true when an anomaly is detected in the corresponding row of Tbl. You must use this syntax if you create Mdl by passing a table to the ocsvm function.

    tf = isanomaly(Mdl,X) finds anomalies in the matrix X. You must use this syntax if you create Mdl by passing a matrix to the ocsvm function.

    example

    tf = isanomaly(___,ScoreThreshold=scoreThreshold) specifies the threshold for the anomaly score using any of the input argument combinations in the previous syntaxes. isanomaly identifies observations with scores above scoreThreshold as anomalies.

    [tf,scores] = isanomaly(___) also returns an anomaly score in the range (–inf,inf) for each observation in Tbl or X. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly.

    Examples

    collapse all

    Create a OneClassSVM object for uncontaminated training observations by using the ocsvm function. Then detect novelties (anomalies in new data) by passing the object and the new data to the object function isanomaly.

    Load the 1994 census data stored in census1994.mat. The data set consists of demographic data from the US Census Bureau to predict whether an individual makes over $50,000 per year.

    load census1994

    census1994 contains the training data set adultdata and the test data set adulttest.

    ocsvm does not use observations with missing values. Remove missing values in the data sets to reduce memory consumption and speed up training.

    adultdata = rmmissing(adultdata);
    adulttest = rmmissing(adulttest);

    Train a one-class SVM for adultdata. Assume that adultdata does not contain outliers. Specify StandardizeData as true to standardize the input data, and set KernelScale to "auto" to let the function select an appropriate kernel scale parameter using a heuristic procedure.

    rng("default") % For reproducibility
    [Mdl,~,s] = ocsvm(adultdata,StandardizeData=true,KernelScale="auto");

    Mdl is a OneClassSVM object. If you do not specify the ContaminationFraction name-value argument as a value greater than 0, then ocsvm treats all training observations as normal observations. The function sets the score threshold to the maximum score value. Display the threshold value.

    Mdl.ScoreThreshold
    ans = 0.0322


    Find anomalies in adulttest by using the trained one-class SVM model.

    [tf_test,s_test] = isanomaly(Mdl,adulttest);

    The isanomaly function returns the anomaly indicators tf_test and scores s_test for adulttest. By default, isanomaly identifies observations with scores above the threshold (Mdl.ScoreThreshold) as anomalies.

    Create histograms for the anomaly scores s and s_test. Create a vertical line at the threshold of the anomaly scores.

    h1 = histogram(s,NumBins=50,Normalization="probability");
    hold on
    h2 = histogram(s_test,h1.BinEdges,Normalization="probability");
    xline(Mdl.ScoreThreshold,"r-",join(["Threshold" Mdl.ScoreThreshold]))
    h1.Parent.YScale = 'log';
    h2.Parent.YScale = 'log';
    legend("Training Data","Test Data",Location="north")
    hold off

    Figure contains an axes object. The axes object contains 3 objects of type histogram, constantline. These objects represent Training Data, Test Data.

    Display the observation index of the anomalies in the test data.

    find(tf_test)
    ans =

      0x1 empty double column vector


    The anomaly score distribution of the test data is similar to that of the training data, so isanomaly does not detect any anomalies in the test data with the default threshold value. You can specify a different threshold value by using the ScoreThreshold name-value argument. For an example, see Specify Anomaly Score Threshold.

    Specify the threshold value for anomaly scores by using the ScoreThreshold name-value argument of isanomaly.

    Load the 1994 census data stored in census1994.mat. The data set consists of demographic data from the US Census Bureau to predict whether an individual makes over $50,000 per year.

    load census1994

    census1994 contains the training data set adultdata and the test data set adulttest.

    ocsvm does not use observations with missing values. Remove missing values in the data sets to reduce memory consumption and speed up training.

    adultdata = rmmissing(adultdata);
    adulttest = rmmissing(adulttest);

    Train a one-class SVM model for adultdata. Specify StandardizeData as true to standardize the input data, and set KernelScale to "auto" to let the function select an appropriate kernel scale parameter using a heuristic procedure.

    rng("default") % For reproducibility
    [Mdl,~,scores] = ocsvm(adultdata, ...
        StandardizeData=true,KernelScale="auto");

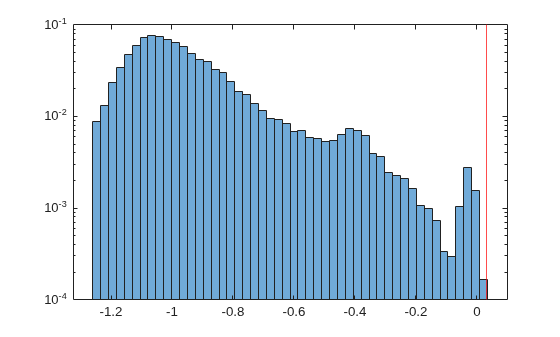

    Plot a histogram of the score values. Create a vertical line at the default score threshold.

    h = histogram(scores,NumBins=50,Normalization="probability");
    h.Parent.YScale = 'log';
    xline(Mdl.ScoreThreshold,"r-",join(["Threshold" Mdl.ScoreThreshold]))

    Figure contains an axes object. The axes object contains 2 objects of type histogram, constantline.

    Find the anomalies in the test data using the trained one-class SVM model. Use a different threshold from the default threshold value obtained when training the model.

    First, determine the score threshold by using the isoutlier function.

    [~,~,U] = isoutlier(scores)
    U = -0.5342


    Specify the value of the ScoreThreshold name-value argument as U. Because you specified StandardizeData as true when you trained Mdl, the isanomaly function standardizes new input data using the means and standard deviations stored in Mdl.Mu and Mdl.Sigma, respectively.

    [tf_test,scores_test] = isanomaly(Mdl,adulttest,ScoreThreshold=U);

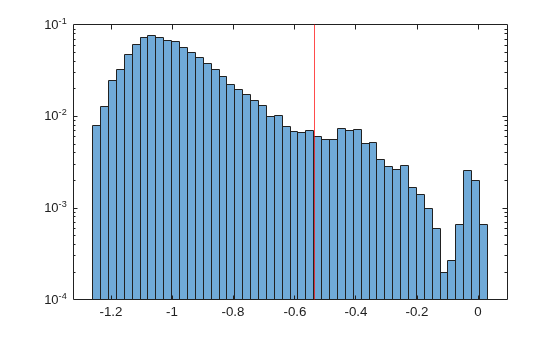

    h = histogram(scores_test,NumBins=50,Normalization="probability");
    h.Parent.YScale = 'log';
    xline(U,"r-",join(["Threshold" U]))

    Figure contains an axes object. The axes object contains 2 objects of type histogram, constantline.

    Input Arguments

    collapse all

    Trained one-class SVM model, specified as a OneClassSVM object.

    Predictor data, specified as a table. Each row of Tbl corresponds to one observation, and each column corresponds to one predictor variable. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

    If you train Mdl using a table, then you must provide predictor data by using Tbl, not X. All predictor variables in Tbl must have the same variable names and data types as those in the training data. However, the column order in Tbl does not need to correspond to the column order of the training data.

    Data Types: table

    Predictor data, specified as a numeric matrix. Each row of X corresponds to one observation, and each column corresponds to one predictor variable.

    If you train Mdl using a matrix, then you must provide predictor data by using X, not Tbl. The variables that make up the columns of X must have the same order as the training data.

    Data Types: single | double

    Threshold for the anomaly score, specified as a numeric scalar in the range (–Inf,Inf). isanomaly identifies observations with scores above the threshold as anomalies.

    The default value is the ScoreThreshold property value of Mdl.

    Example: ScoreThreshold=0.5

    Data Types: single | double

    Output Arguments

    collapse all

    Anomaly indicators, returned as a logical column vector. An element of tf is true when the observation in the corresponding row of Tbl or X is an anomaly, and false otherwise. tf has the same length as Tbl or X.

    isanomaly identifies observations with scores above the threshold (the scoreThreshold value) as anomalies.

    Anomaly scores, returned as a numeric column vector whose values are in the range (–Inf,Inf). scores has the same length as Tbl or X, and each element of scores contains an anomaly score for the observation in the corresponding row of Tbl or X. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly.

    Version History

    Introduced in R2022b
