jacobiDS

Jacobi DS elliptic function

collapse all in page

Syntax

jacobiDS(u,m)

Description

jacobiDS(u,m) returns the Jacobi DS Elliptic Function of u and m. If u or m is an array, then jacobiDS acts element-wise.

example

Examples

collapse all

jacobiDS(2,1)
ans =
    0.2757

Call jacobiDS on array inputs. jacobiDS acts element-wise when u or m is an array.

jacobiDS([2 1 -3],[1 2 3])
ans =
    0.2757    0.4623   -0.0079

Convert numeric input to symbolic form using sym, and find the Jacobi DS elliptic function. For symbolic input where u = 0 or m = 0 or 1, jacobiDS returns exact symbolic output.

jacobiDS(sym(2),sym(1))
ans =
1/sinh(2)

Show that for other values of u or m, jacobiDS returns an unevaluated function call.

jacobiDS(sym(2),sym(3))
ans =
jacobiDS(2, 3)

For symbolic variables or expressions, jacobiDS returns the unevaluated function call.

syms x y
f = jacobiDS(x,y)
f =
jacobiDS(x, y)

Substitute values for the variables by using subs, and convert values to double by using double.

f = subs(f, [x y], [3 5])
f =
jacobiDS(3, 5)
fVal = double(f)
fVal =
   32.0302

Calculate f to higher precision using vpa.

fVal = vpa(f)
fVal =
32.030154607596772037587224629884
Open Live Script

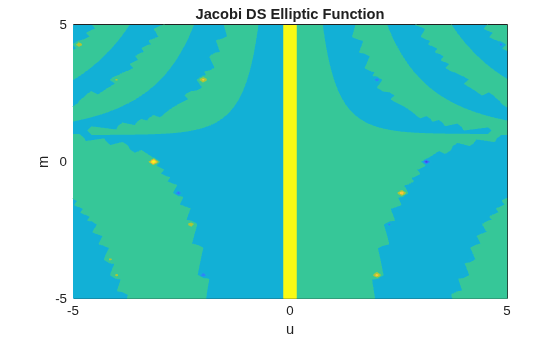

Plot the Jacobi DS elliptic function using fcontour. Set u on the x-axis and m on the y-axis by using the symbolic function f with the variable order (u,m). Fill plot contours by setting Fill to on.

syms f(u,m)
f(u,m) = jacobiDS(u,m);
fcontour(f,'Fill','on')
title('Jacobi DS Elliptic Function')
xlabel('u')
ylabel('m')

Figure contains an axes object. The axes object with title Jacobi DS Elliptic Function, xlabel u, ylabel m contains an object of type functioncontour.

Input Arguments

collapse all

Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.

Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.

More About

collapse all

Version History

Introduced in R2017b
