Deployment on Cube Blue Autopilot from Simulink

This topic helps you to get started with Cube Blue Autopilot. Although Cube blue is not part of the officially supported autopilots, you can still use ‘PX4 Cube Orange’ as the target hardware and deploy code from Simulink to Cube Blue Autopilot. Note that all the supported features on Cube Blue have not been tested.

Before starting with Simulink®, ensure that you install the latest stable version of QGroundControl and able to upload latest stable version of PX4 Firmware from QGroundControl. If you are facing issue with USB connection, It is recommended to install Mission planner and do a clean re-installation of latest drivers as described in this page.

After you successfully upload the PX4® firmware from QGroundControl, get started with UAV Toolbox Support Package for PX4 Autopilots.

Select PX4 Cube Orange in Hardware Setup

  1. If the support package is already installed, start the hardware setup by opening the Add-On Manager.

  2. In the Add-On Manager, start the hardware setup process by clicking the Setup button, .

    After starting, the Hardware Setup window provides instructions for configuring the support package to work with your hardware.

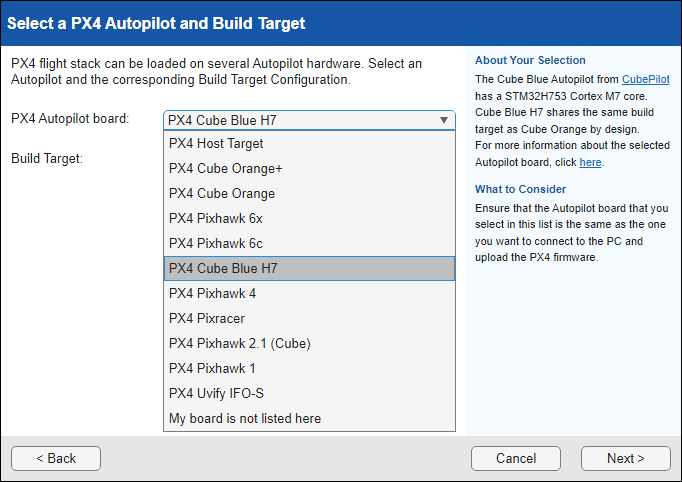

  3. In the Select a PX4 Autopilot and Build Target screen, select PX4 Cube Orange.

    Select PX4 Cube Orange

  4. Select the corresponding CMake Build target (cubepilot_cubeorange_multicopter) from Build Target drop-down list.

    Select PX4 Autopilot board

  5. Click Next and continue with onscreen instructions.

  6. Click Build PX4 Firmware in the Build PX4 Firware screen to complete the setup.

    Select PX4 Autopilot board

Select PX4 Cube Orange as the Simulink Target Hardware

After hardware setup is completed and the PX4 Firmware is successfully built for the selected build target, you can use your Cube Orange autopilot in Simulink by selecting PX4 Cube Orange as Hardware board in the Simulink model configuration settings.

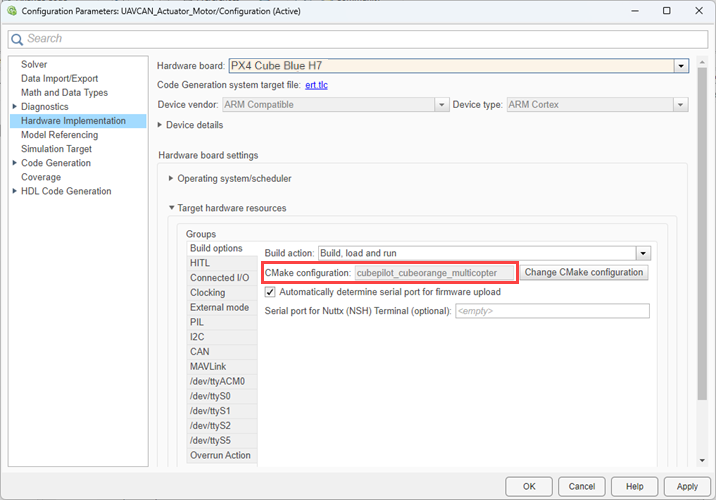

Configuration parameters

The selected CMake build target in hardware setup automatically appears in CMake configuration.

CMake configuration


If you are using Cube Blue autopilot, then use GPS2 for monitor and tune communication over non-USB port connection, as there might be issues using TELEM1 or TELEM2 ports.
