The Vehicle Network Toolbox™ block library includes sets of blocks that allow you to perform CAN or CAN FD communication in Simulink models.
|CAN Configuration||Configure parameters for specified CAN device|

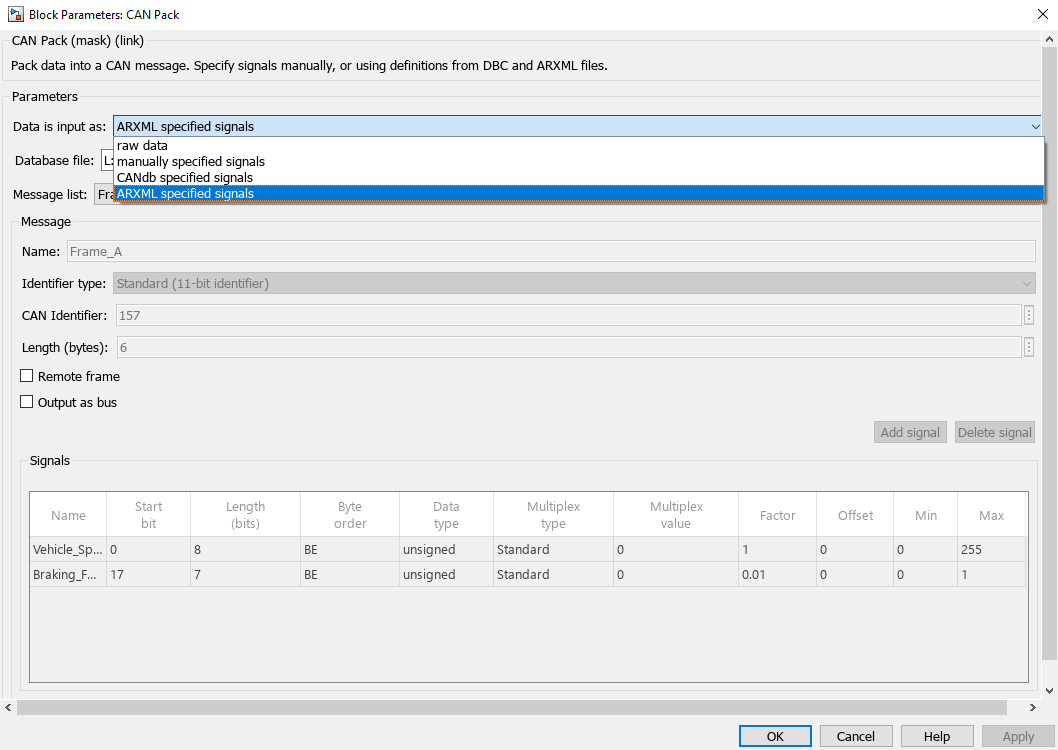

|CAN Pack||Pack individual signals into CAN message|
|CAN Receive||Receive CAN messages from specified CAN device|
|CAN Transmit||Transmit CAN message to selected CAN device|
|CAN Unpack||Unpack individual signals from CAN messages|

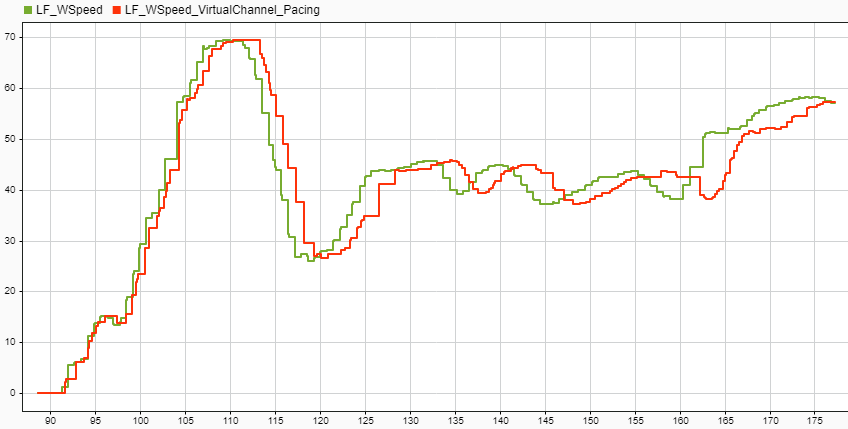

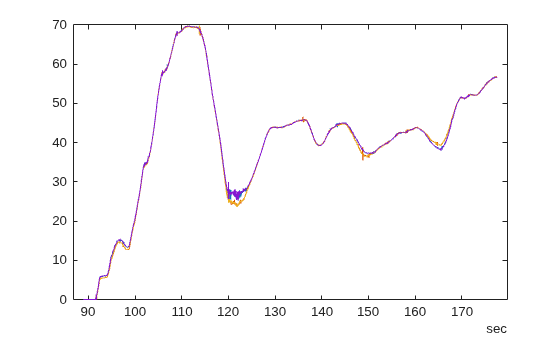

|CAN Replay||Replay logged CAN messages|
|CAN Log||Log received CAN messages|
|CAN FD Configuration||Configure parameters for specified CAN FD device|
|CAN FD Pack||Pack individual signals into message for CAN FD bus|
|CAN FD Unpack||Unpack individual signals from CAN FD messages|
|CAN FD Receive||Receive CAN FD messages from specified CAN FD device|
|CAN FD Transmit||Transmit CAN FD message to selected CAN FD device|
|CAN FD Log||Log received CAN FD messages|

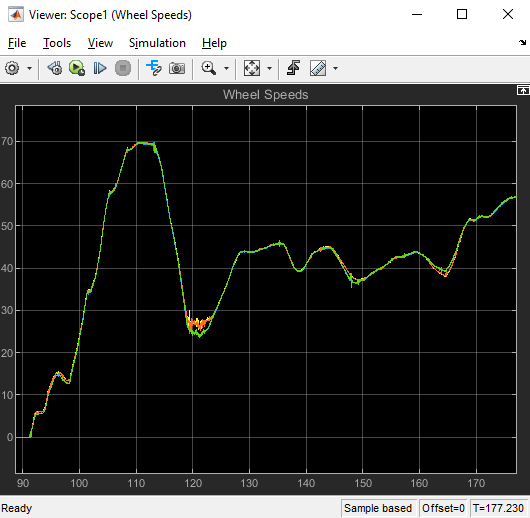

|CAN FD Replay||Replay logged CAN FD messages|
Common CAN model workflows.
Introduction to the Vehicle Network Toolbox block library.
How to access the block library in Simulink.
Examples of using Vehicle Network Toolbox blocks.
Determine block execution frequency and relate to real-world time.
Transmit blocks to
use with hardware not directly supported by the toolbox.
Supported features of blocks in the Vehicle Network Toolbox block library.
