plotThreshold
Add-On Required: This feature requires the Wireless Testbench™ Support Package for NI™ USRP™ Radios add-on.
Description
plotThreshold(
plots preamble detection signals while detecting a preamble in live data
of length pd
,length
)length
from the air using the preamble
detector pd

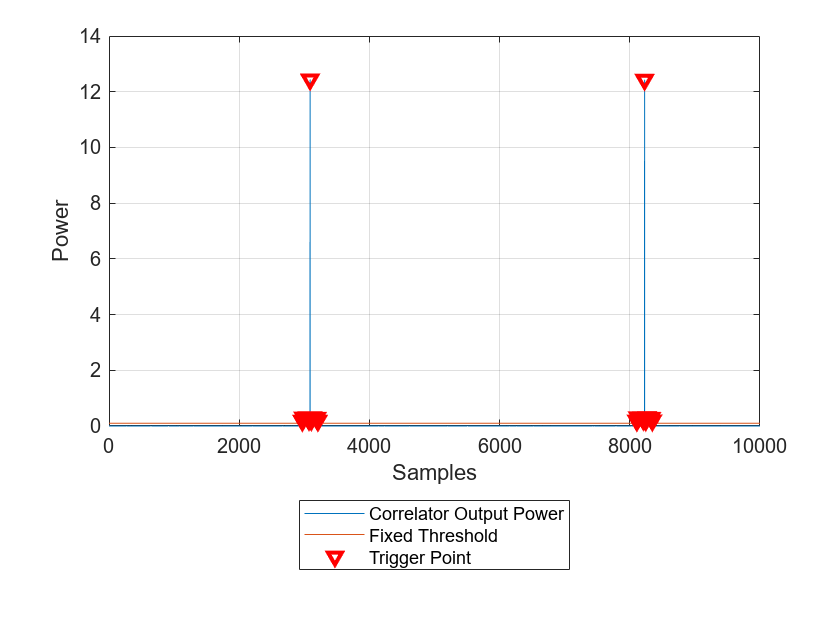

. The plot shows the correlator output
power, threshold, and trigger points of the detection. Use the displayed
information to calibrate the threshold in the preamble detector for
triggering.
returns the status information of dropped samples, in addition to
plotting preamble detection signals.droppedSamples
= plotThreshold(pd
,length
)
Examples
Input Arguments
Output Arguments
Version History
Introduced in R2022a
