Customize Scenes Using Simulink and Unreal Editor

After you install the Aerospace Blockset™ Interface for Unreal Engine® Projects support package as described in Install Support Package and Configure Environment, you can simulate in custom scenes simultaneously from both the Unreal® Editor and Simulink®. By using this co-simulation framework, you can add aircraft and sensors to a Simulink model and then run this simulation in your custom scene.

To use a project that you developed using a prior release of the support package, first migrate the project to the currently supported Unreal Engine. See Migrate Projects Developed Using Prior Support Packages.

Open Unreal Editor

If you open your Unreal project file directly in the Unreal Editor, Simulink is unable to establish a connection with the editor. To establish this connection, you must open your project from a Simulink model or use a MATLAB® function.

The first time that you open the Unreal Editor, you might be asked to rebuild UE4Editor DLL files or the AutoVrtlEnv module. Click Yes to rebuild these files or modules. The editor also prompts you that new plugins are available. Click Manage Plugins or select Edit > Plugins and verify that these two plugins are installed and enabled: MathWorks Interface and MathWorks Aerospace. If one or both of the plugins are not enabled, select the Enabled boxes and agree to restart the editor.

These plugins are the MathWorksSimulation.uplugin and MathWorksAerospace.uplugin files that you copied into your Unreal Editor installation in Install Support Package and Configure Environment.

When the editor opens, you can ignore any warning messages about files with the name '_BuiltData' that failed to load.

If you receive a warning that the lighting needs to be rebuilt, from the toolbar above the editor window, select Build > Build Lighting Only. The editor issues this warning the first time you open a scene or when you add new elements to a scene.

If the MathWorks® plugins are not visible in the editor Content Browser file tree, then click the View Options button in the lower right of the Content Browser window and enable Show Engine Content and Show Plugin Content.

Open Unreal Editor from Simulink

  1. Open a Simulink model configured to simulate in the 3D environment. At a minimum, the model must contain a Simulation 3D Scene Configuration block.

  2. In the Simulation 3D Scene Configuration block of this model, set the Scene source parameter to Unreal Editor.

  3. In the Project parameter, browse for the project file that contains the scenes that you want to customize.

    For example, this sample path specifies the AutoVrtlEnv project that comes installed with the Aerospace Blockset Interface for Unreal Engine Projects support package.

    This sample path specifies a custom project.

  4. Click Open Unreal Editor. The Unreal Editor opens and loads a scene from your project.

Open Unreal Editor Using Command-Line Function

To open the AutoVrtlEnv.uproject file that was copied from the Aerospace Blockset Interface for Unreal Engine Projects support package, specify the path to where you copied this project. For example, if you copied the AutoVrtlEnv.uproject to C:/Local/AutoVrtlEnv, use this code:

path = fullfile('C:','Local','AutoVrtlEnv','AutoVrtlEnv.uproject');
editor = sim3d.Editor(path);

The editor opens the AutoVrtlEnv.uproject file. By default, the project displays the Straight Highway scene whenever you open the editor from the AutoVrtlEnv.uproject.

To open your own project, use the same commands used to open the AutoVrtlEnv.uproject file. Update the path variable with the path to your .uproject file. For example, if you have a project saved to the C:/Local folder, use this code:

path = fullfile('C:','Local','myProject','myProject.uproject');
editor = sim3d.Editor(path);

Reparent Actor Blueprint


If you are using a scene from the AutoVtrlEnv project that comes installed with the Aerospace Blockset Interface for Unreal Engine Projects support package, skip this section. However, if you create a new scene based off of one of the scenes in this project, then you must complete this section.

The first time that you open a custom scene from Simulink, you need to associate, or reparent, this project with the Sim3dLevelScriptActor level blueprint used in Aerospace Blockset. The level blueprint controls how objects interact with the 3D environment once they are placed in it. Simulink returns an error at the start of simulation if the project is not reparented. You must reparent each scene in a custom project separately.

To reparent the level blueprint, follow these steps:

  1. In the Unreal Editor toolbar, select Blueprints > Open Level Blueprint.

  2. In the Level Blueprint window, select File > Reparent Blueprint.

  3. Click the Sim3dLevelScriptActor blueprint. If you do not see the Sim3dLevelScriptActor blueprint listed, use these steps to check that you have the MathWorksSimulation plugin installed and enabled:

    1. In the Unreal Editor toolbar, select Settings > Plugins.

    2. In the Plugins window, verify that the MathWorks Interface plugin is listed in the installed window. If the plugin is not already enabled, select the Enabled check box.

      If you do not see the MathWorks Interface plugin in this window, repeat step 3 in Configure Environment and reopen the editor from Simulink.

    3. Close the editor and reopen it from Simulink.

  4. Close the Level Blueprint window.

Create or Modify Scenes in Unreal Editor

After you open the editor, you can modify the scenes in your project or create new scenes.

Open Scene

In the Unreal Editor, scenes within a project are referred to as levels. Levels come in several types, and scenes have a level type of map.

To open a prebuilt scene from the AutoVrtlEnv.uproject file, in the Content Browser pane below the editor window, navigate to the MathWorksAerospace Content > Maps folder. Then, select the map that corresponds to the scene you want to modify.

Unreal Editor Map

Aerospace Blockset Scene




Griffiss International Airport

To open a scene within your own project, in the Content Browser pane, navigate to the folder that contains your scenes.

Send Data to Scene

The Simulation 3D Message Get block retrieves data from the Unreal Engine 3D visualization environment. To use the block, you must configure scenes in the Unreal Engine environment to send data to the Simulink model.

Receive Data from Scene

The Simulation 3D Message Set block sends data to the Unreal Engine 3D visualization environment. To use the block, you must configure scenes in the Unreal Engine environment to receive data from the Simulink model.

Create New Scene

To create a new scene in your project, from the top-left menu of the editor, select File > New Level.

Alternatively, you can create a new scene from an existing one. This technique is useful if you want to use one of the prebuilt scenes in the AutoVtrlEnv project as a starting point for creating your own scene. To save a version of the currently opened scene to your project, from the top-left menu of the editor, select File > Save Current As. The new scene is saved to the same location as the existing scene.

Add Assets to Scene

In the Unreal Editor, elements within a scene are referred to as assets. To add assets to a scene, you can browse or search for them in the Content Browser pane at the bottom and drag them into the editor window.

When adding assets to a scene that is in the AutoVrtlEnv project, you can choose from a library of aerospace-related assets. These assets are built as static meshes and begin with the prefix SM_. Search for these objects in the Content Browser pane.

For example, to add a hangar to a scene in the AutoVrtlEnv project:

  1. In the Content Browser pane at the bottom of the editor, navigate to the MathWorksAerospace Content folder.

  2. Expand the Hangar > Mesh folder, or search for SM_Hangar. Drag the hangar from the Content Browser into the editing window. You can then change the position of the hangar in the editing window or on the Details pane on the right, in the Transform section.

If you want to override the default weather or use enhanced fog conditions in the scene, add the Exponential Height Fog actor.

Exponential Height Fog actor selection

The Unreal Editor uses a left-hand Z-up coordinate system, where the Y-axis points to the right. The aerospace aircraft blocks in Aerospace Blockset use a right-hand Z-down coordinate system, where the Y-axis points to the right. When positioning objects in a scene, keep this coordinate system difference in mind.

For more information on modifying scenes and adding assets, see Unreal Engine 4 Documentation.

To migrate assets from the AutoVrtlEnv project into your own project file, see the Unreal Engine documentation.

Use AutoVrtlEnv Project Lighting in Custom Scene

To use the lighting that comes installed with the AutoVrtlEnv project in Aerospace Blockset, follow these steps.

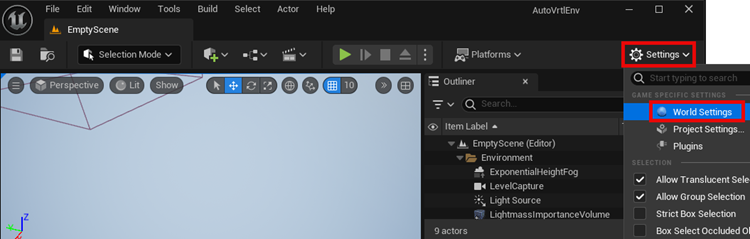

  1. On the World Settings tab, clear Force no precomputed lighting.

  2. Under Build, select Lighting Quality > Production to rebuild the maps with production quality. Rebuilding large maps can take time.

Run Simulation

Verify that the Simulink model and Unreal Editor are configured to co-simulate by running a test simulation.

  1. In the Simulink model, click Run.

    Because the source of the scenes is the project opened in the Unreal Editor, the simulation does not start. Instead, you must start the simulation from the editor.

  2. Verify that the Diagnostic Viewer window in Simulink displays this message:

    In the Simulation 3D Scene Configuration block, you set the scene source to 'Unreal Editor'. In Unreal Editor, select 'Play' to view the scene.

    This message confirms that Simulink has instantiated aircraft and other assets in the Unreal Engine 3D environment.

  3. In the Unreal Editor, click Play. The simulation runs in the scene currently open in the Unreal Editor. If your Simulink model contains aircraft, these aircraft can move around in the scene that is open in the editor.

To control the view of the scene during simulation, in the Simulation 3D Scene Configuration block, select the aircraft name from the Scene view parameter. To change the scene view as the simulation runs, first left-click inside the editor view window, then use the numeric keypad in the editor. The table shows the position of the camera displaying the scene, relative to the aircraft selected in the Scene view parameter.

To smoothly change the camera views, use these key commands.

KeyCamera View


Back left




Back right








Front left




Front right



For additional camera controls, use these key commands.

KeyCamera Control

Cycle the view between all aircraft in the scene.

Mouse scroll wheel

Control the camera distance from the aircraft.


Toggle a camera lag effect on or off. When you enable the lag effect, the camera view includes:

  • Position lag, based on the aircraft translational acceleration

  • Rotation lag, based on the aircraft rotational velocity

This lag enables improved visualization of overall aircraft acceleration and rotation.


Toggle the free camera mode on or off. When you enable the free camera mode, you can use the mouse to change the pitch and yaw of the camera. This mode enables you to orbit the camera around the aircraft.

To restart a simulation, click Run in the Simulink model, wait until the Diagnostic Viewer displays the confirmation message, and then click Play in the editor. If you click Play before starting the simulation in your model, the connection between Simulink and the Unreal Editor is not established, and the editor displays an empty scene.

If you are co-simulating a custom project, to enable the numeric keypad, copy the DefaultInput.ini file from the support package installation folder to your custom project folder. For example, copy DefaultInput.ini from:




After tuning your custom scene based on simulation results, you can then package the scene into an executable. For more details, see Package Custom Scenes into Executable.
