mirrorX

Mirror shape along x-axis

Since R2022a

collapse all in page

Syntax

mirrorX(shape)
mirroredshape = mirrorX(shape)

Description

mirrorX(shape) mirrors the specified shape along x-axis.

example

mirroredshape = mirrorX(shape) stores the mirrored shape in a shape object.

example

Examples

collapse all

Open Live Script

Create a Dumbell shaped patch by performing operations on a circular and a rectangular shape.

Create patch shape and view it

Use antenna.Circle and antenna.Rectangle to create a patch shape and view it.

c1 = antenna.Circle(Center=[0 1],Radius=0.5);
c2 = antenna.Rectangle(Center=[0 0.25],Length=0.3,Width=1);
cm = c1 + c2;
show(cm)

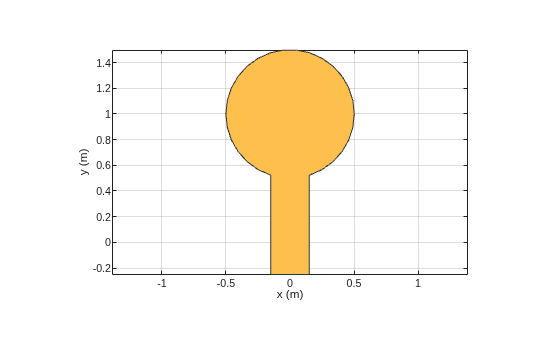

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Mirror the shape along x-axis

Use mirrorX to create a mirror image of the shape along x-axis and view it.

cmm = mirrorX(cm);
show(cmm)

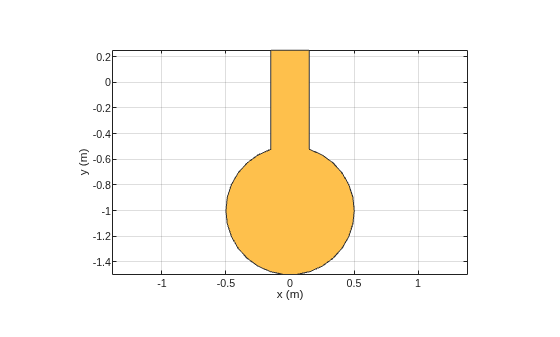

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Add both shapes to create Dumbell shape

Add the original shape and its mirror image along x-axis to create a Dumbell shape and view it.

c3 = c1 + c2 + cmm;
show(c3)

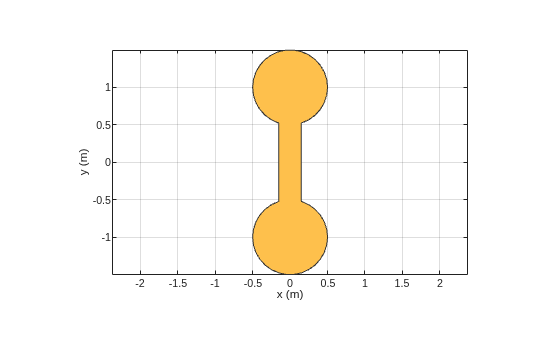

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Input Arguments

collapse all

Shape to mirror, specified as one of the following objects:

You can specify rectangular, circular, elliptical, triangular, or polygon shape.

Example: antenna.Polygon

Output Arguments

collapse all

Mirrored shape stored as an antenna.Shape object.

Version History

Introduced in R2022a
