removeSlivers

Remove sliver outliers from boundary of shape

Since R2020b

Syntax

s = removeSlivers(shapeobject,slivertol)

Description

s = removeSlivers(shapeobject,slivertol) removes sliver outliers from boundary of the shape and returns a polygon object.

example

Examples

collapse all

Remove Slivers from Rectangle Shape for Antenna

Open Live Script

Create two rectangle shapes. Change the length and the center of orientation of the second rectangle to the values shown.

rect1 = antenna.Rectangle;
rect2 = antenna.Rectangle;
rect2.Length = 1e-7;
rect2.Center = [0,0.75];

Add rectangle 1 and rectangle 2.

rect3 = rect1 + rect2

rect3 =
  Polygon with properties:

        Name: 'mypolygon'
    Vertices: [8x3 double]

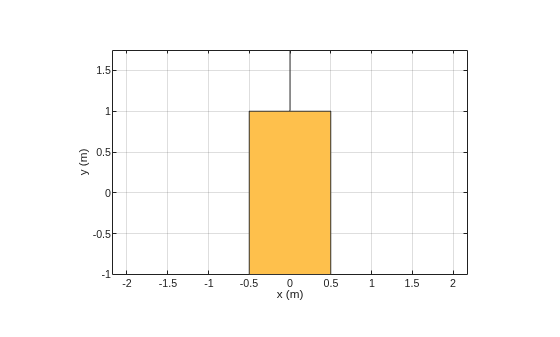

show(rect3)

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Remove slivers.

rect4 = removeSlivers(rect3,1e-6)

rect4 =
  Polygon with properties:

        Name: 'mypolygon'
    Vertices: [4x3 double]

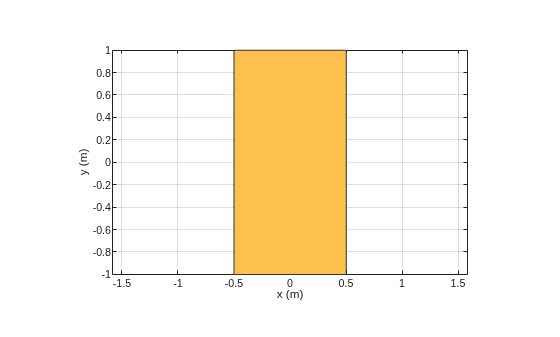

show(rect4)

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.
