shapes
Syntax
Description
Examples
Extract and Modify Metal Layer
Use the gerberRead
function to import top-layer Gerber file.
P = gerberRead('antenna_design_file.gtl');
Extract the metal layer from the file using the shapes
function.
S = shapes(P);

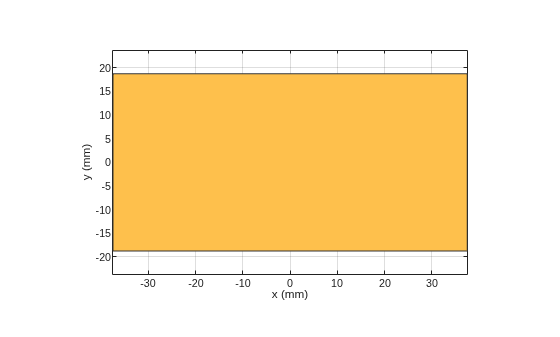

View the metal layer.
figure show(S)
Modify the metal layer.
S.Vertices = [-1 0 0;-0.5 0.2 0;0 0 0;0.0375 -0.0188 0];

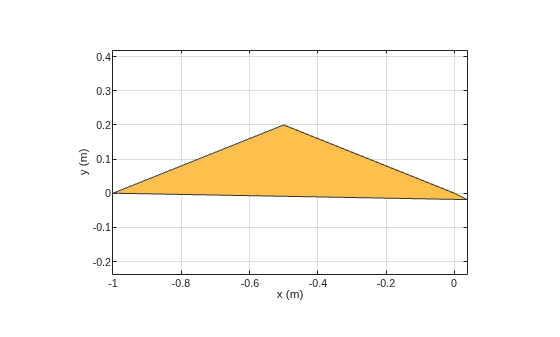

View the modified metal layer.
show(S)
Extract Metal from Two-Layer Design PCBReader
Object
Create a PCBReader
object.
B = PCBReader;
Import a two-layer design.
st = B.StackUp; st.Layer2 = 'UWBVivaldi.gtl'; st.Layer4 = 'UWBVivaldi.gbl'; B.StackUp = st;
Extract shapes from the metal layers.
S = shapes(B);

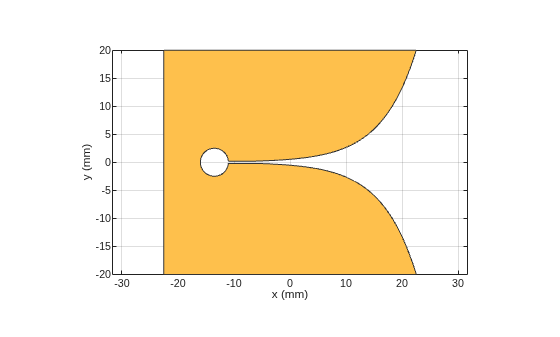

View the top-layer Gerber file.
figure show(S(1))

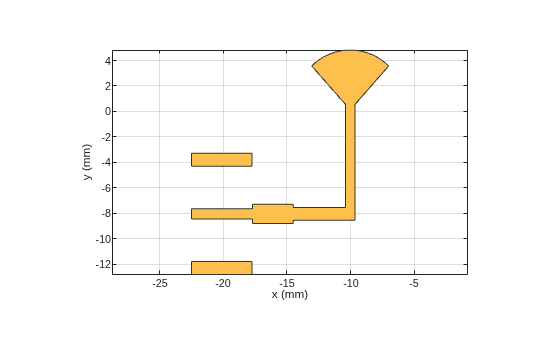

View the bottom-layer Gerber file.
figure show(S(2))
Input Arguments
B
— PCB reader
PCBReader
object
PCB reader, specified as a PCBReader
object.
Example: B = gerberRead('antenna_desgin_file.gbl')
Version History
Introduced in R2020b
