beamwidth

Calculate Half-Power Beamwidth (HPBW) of AI-based antenna

Since R2025a

collapse all in page

    Syntax

    hpbw = beamwidth(aiant,frequency)
    [hpbw,angles,plane] = beamwidth(aiant,frequency)

    Description

    hpbw = beamwidth(aiant,frequency) calculates and returns the half-power beamwidth of AI-based antenna object at the specified frequency. Half-power beamwidth is the angular separation at which the magnitude of the directivity pattern decreases by 3 dB from the peak of the main beam.

    [hpbw,angles,plane] = beamwidth(aiant,frequency) calculates and returns the half-power beamwidth, its lower and upper angular points, and plane of calculation of AI-based antenna object at the specified frequency.

    example

    Examples

    collapse all

    This example uses:

    Open Live Script

    This example shows how to create an AI-based microstrip patch antenna operating at 1.67 GHz and calculate its beamwidth.

    Use the design function with the ForAI argument set to true to create an AI-based microstrip patch antenna.

    pAI = design(patchMicrostrip,1.67e9,ForAI=true)
    pAI =
  AIAntenna with properties:

   Antenna Info
               AntennaType: 'patchMicrostrip'
    InitialDesignFrequency: 1.6700e+09

   Tunable Parameters
                    Length: 0.0862
                     Width: 0.1122
                    Height: 0.0018

Show read-only properties

    Explore the design space by changing its length and width with values within the tunable range of these properties. You can get the tunable range of a property by using tunableRanges function on the AI-based antenna object.

    pAI.Length = 0.0855;
pAI.Width = 0.113;

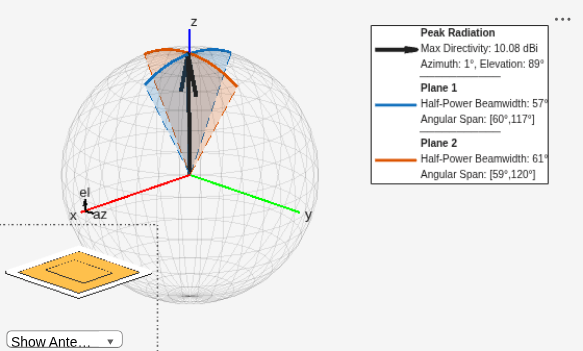

    Calculate half-power beamwidth of the antenna, its lower and upper angular points, and get the information on plane of calculation.

    [hpbw,angles,plane] = beamwidth(pAI,1.67e9)
    hpbw = 2×1

   56.6456
   61.1775


    angles = 2×2

   60.1510  116.7966
   58.9239  120.1013


    plane=2×3 table
       Plane       Slice    SliceValue
    ___________    _____    __________

    "Elevation"    "Az"          0
    "Elevation"    "Az"         90

    Input Arguments

    collapse all

    AI-based antenna, specified as an AIAntenna object created using the design function.

    Example: aiant = design(patchMicrostrip,1.67e9,ForAI=true); hpbw = beamwidth(aiant,1.67e9) calculates and returns the half-power beamwidth of AI-based microstrip patch antenna at 1.67 GHz.

    Frequency to calculate beamwidth, specified as a scalar in Hertz.

    Example: 70e6

    Data Types: double

    Output Arguments

    collapse all

    Half-power beamwidth of AI-based antenna, returned as a 2-by-1 vector in degrees. The rows of this vector correspond to planes 1 and 2 respectively.

    Example: [56; 60]

    Data Types: double

    Angular points encompassing the half-power region of the main beam in the azimuth or elevation plane, returned as a 2-by-2 matrix in degrees. The rows of this matrix correspond to planes 1 and 2 respectively.

    Example: [60 116; 60 120]

    Data Types: double

    Planes used for beamwidth calculation, returned as 2-by-3 table. These planes are defined by the azimuth or elevation slices.

    Beamwidth is calculated along the horizontal and vertical cross-sections of an ideal radiation pattern of the antenna.

    • For patch antennas, the beamwidth is calculated along:

      • The elevation plane at an azimuth angle of 0 degrees.

      • The elevation plane at an azimuth angle of 90 degrees.

    • For waveguide and horn antenna, the beamwidth is calculated along:

      • The elevation plane at an azimuth angle of 0 degrees.

      • The azimuth plane at an elevation angle of 0 degrees.

    Data Types: table

    Version History

    Introduced in R2025a
