Design Series-Fed Patch Antenna Array for 5G Base Station

This example shows how to design and analyze a series fed patch antenna array at 28 GHz. The array has 64 antenna elements arranged in 8-by-8 configuration and is used as a 5G mobile base station antenna at 28 GHz. The phased array steers its beam along the horizontal axis to provide coverage in different directions.

Create Variables

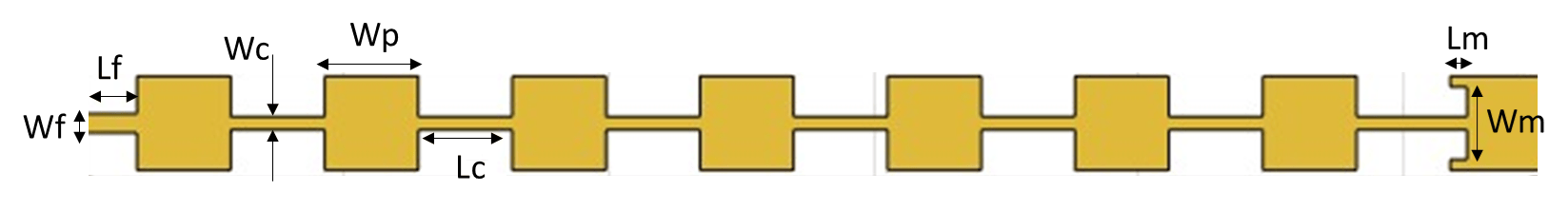

Create the variables and assign the values as per [2].

Wp = 3.539e-3;
Wc = 0.494e-3;
Lc = 3.539e-3;
Wm = 2.727e-3;
Lm = 0.6269e-3;
Wf = 0.72e-3;
Lf = 2.215e-3;

Create Geometry

Use the antenna.Rectangle shape object to create all the rectangles in the structure and then join them. Visualize the structure using the show function.

a = antenna.Rectangle(Length=Lf,Width=Wf,Center=[Lf/2,0]);
transVec = Lf;
for i =1:7
b = antenna.Rectangle(Length=Wp,Width=Wp,Center=[transVec+Wp/2,0]);
transVec = transVec+Wp;
c = antenna.Rectangle(Length=Lc,Width=Wc,Center=[transVec+Lc/2,0]);
transVec = transVec+Lc;
a = a+b+c;
last = antenna.Rectangle(Length=Wp,Width=Wp,Center=[transVec+Wp/2,0]);
lastsub = antenna.Rectangle(Length=Lm,Width=Wm,Center=[transVec+Lm/2,0]);
last = last-lastsub;
conn = antenna.Rectangle(Length=Lc,Width=Wc,Center=[transVec+Lc/2,0]);
a = a+last+conn;

Figure contains an axes object. The axes object contains 2 objects of type patch. This object represents PEC.

Design PCB Board

Use the pcbStack object to create the PCB stack. Create the ground plane and dielectric layers, and set the BoardShape to be the same shape as the ground plane. Visualize the PCB stack.

ant = pcbStack;
gnd = antenna.Rectangle(Length=57e-3,Width=10e-3,Center=[57e-3/2,0]);
d = dielectric('Teflon');
d.EpsilonR = 2.2;
ant.BoardThickness = 0.254e-3;
d.Thickness = ant.BoardThickness;
ant.BoardShape = gnd;
ant.FeedDiameter = Wf/2;
ant.FeedLocations = [0,0,1,3];

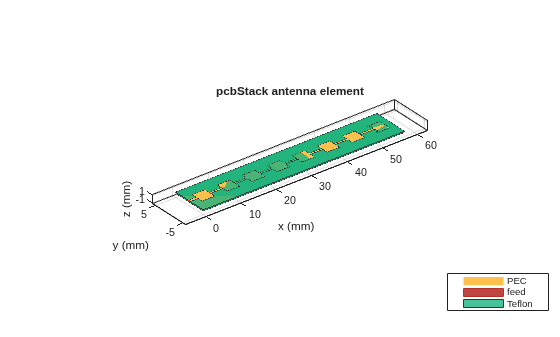

Figure contains an axes object. The axes object with title pcbStack antenna element contains 6 objects of type patch, surface. These objects represent PEC, feed, Teflon.

Analyze Array Performance

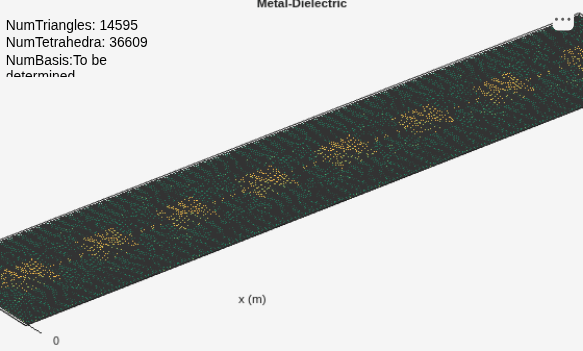

Use the mesh function to manually generate the mesh and set the MaxEdgeLength property to 0.4 mm to ensure there are 30 triangles per wavelength.


{"String":"Figure contains an axes object and an object of type uicontrol. The axes object with title Metal-Dielectric contains 31883 objects of type patch, surface. These objects represent PEC, feed, Teflon.","Tex":"Metal-Dielectric","LaTex":[]}

Use the memoryEstimate function to calculate the memory required to solve the structure.

memEst = memoryEstimate(ant,28e9)
memEst =
'38 GB'

As the memory requirement is very high, time required to calculate the S-parameters and plot the antenna pattern is quite high. This example includes a MAT file containing the return loss and pattern data computations. The code used to compute the results is available in the Return Loss and Pattern Data Computations section. On the machine with 64 GB of RAM and Intel(R) Xeon(R) W-2133 CPU processor it takes around 50 minutes to solve one frequency.

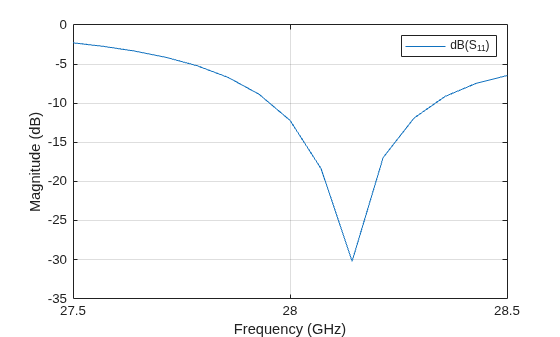

Load the MAT file and plot the return loss using the rfplot function.

load seriesPatchData.mat

Figure contains an axes object. The axes object contains an object of type line. This object represents dB(S_{11}).

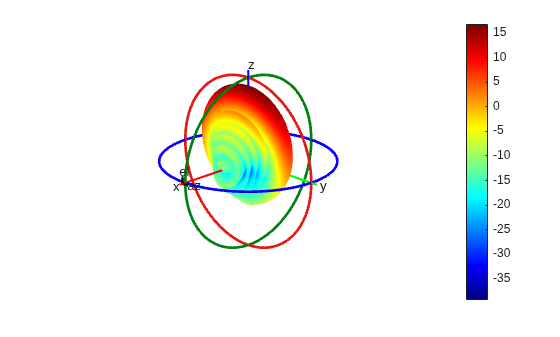

Use the patternCustom to plot the 2-D or 3-D radiation pattern of the antenna.

phi = az';
theta = (90-el);
MagE = pat';

Plot Radiation Pattern Using Pattern Multiplication

Use pattern multiplication to plot the radiation pattern of the 8-by-8 array instead of solving the entire structure using the MoM solver. You need a license to the Phased Array System Toolbox™ to use pattern multiplication.

Use the phased.CustomAntennaElement System object™ to build the custom antenna element using the pattern data from the loaded MAT file.

antenna = phased.CustomAntennaElement;
antenna.FrequencyVector = [0 28e9];
antenna.AzimuthAngles = az;
antenna.ElevationAngles = el;
antenna.MagnitudePattern = pat;
antenna.PhasePattern = zeros(size(pat));

Use the phased.ULA System object™ to create the 8-by-8 array. Specify the custom element as the array element. Set the number of elements to 8, and set the element spacing to 3.5 mm.

array = phased.ULA;
array.Element = antenna;
array.NumElements = 8;
array.ElementSpacing = 3.5e-3;

Pattern Multiplication

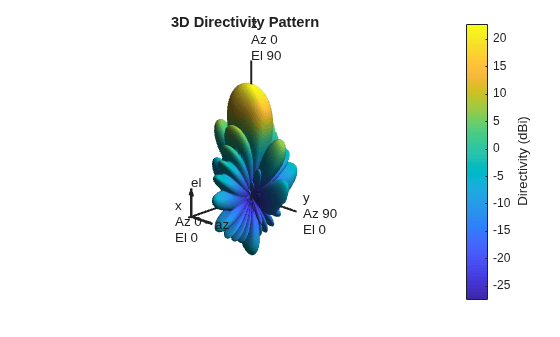

Use the pattern function to plot the 3-D radiation pattern.

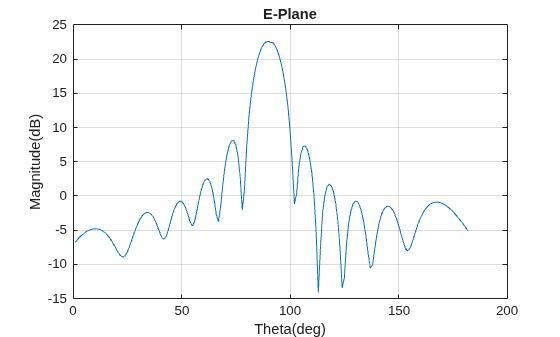

Use the pattern function to plot the radiation pattern in the E-plane

pat1 = pattern(array,28e9,0,0:1:90,CoordinateSystem='rectangular');
pat2 = pattern(array,28e9,180,0:1:90,CoordinateSystem='rectangular');
data1 = [pat1;flip(pat2)];
grid on;

Figure contains an axes object. The axes object with title E-Plane contains an object of type line.

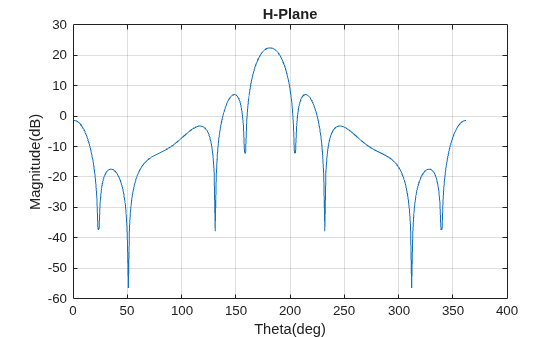

Use the pattern function to plot the radiation pattern in the H-plane

pat3 = pattern(array,28e9,90,-90:1:90,CoordinateSystem='rectangular');
data2 = [pat3;flip(pat3)];
grid on;

Figure contains an axes object. The axes object with title H-Plane contains an object of type line.

Return Loss and Pattern Data Computations

The following code was used to generate 'seriesPatchData.mat' file used in this example.

type RLpatDataComputation.m
out = sparameters(ant,linspace(27.5e9,28.5e9,11));
pattern(ant, 28e9)


[1] “EM Simulation of 28 GHz Series-Fed Patch Antenna Array for 5G | 2019-02-01 | Microwave Journal.” Accessed January 21, 2022.

[2] Ishfaq, Muhammad Kamran, Tharek Abd Rahman, Yoshihide Yamada, and Kunio Sakakibara. “8×8 Phased Series Fed Patch Antenna Array at 28 GHz for 5G Mobile Base Station Antennas.” In 2017 IEEE-APS Topical Conference on Antennas and Propagation in Wireless Communications (APWC), 160–62. Verona, Italy: IEEE, 2017.
