openl3

OpenL3 neural network

    Description

    example

    net = openl3 returns a pretrained OpenL3 model.

    This function requires both Audio Toolbox™ and Deep Learning Toolbox™.

    net = openl3(Name,Value) specifies options using one or more Name, Value arguments. For example, net = openl3('EmbeddingLength',6144) specifies the output embedding length as 6144.

    Examples

    collapse all

    Download and unzip the Audio Toolbox™ model for OpenL3.

    Type openl3 at the Command Window. If the Audio Toolbox model for OpenL3 is not installed, the function provides a link to the location of the network weights. To download the model, click the link. Unzip the file to a location on the MATLAB path.

    Alternatively, execute these commands to download and unzip the OpenL3 model to your temporary directory.

    downloadFolder = fullfile(tempdir,'OpenL3Download');
    loc = websave(downloadFolder,'https://ssd.mathworks.com/supportfiles/audio/openl3.zip');
    OpenL3Location = tempdir;
    unzip(loc,OpenL3Location)
    addpath(fullfile(OpenL3Location,'openl3'))

    Check that the installation is successful by typing openl3 at the Command Window. If the network is installed, then the function returns a DAGNetwork (Deep Learning Toolbox) object.

    openl3
    ans =
      DAGNetwork with properties:

             Layers: [30×1 nnet.cnn.layer.Layer]
        Connections: [29×2 table]
         InputNames: {'in'}
        OutputNames: {'out'}



    Load a pretrained OpenL3 convolutional neural network and examine the layers and classes.

    Use openl3 to load the pretrained OpenL3 network. The output net is a DAGNetwork (Deep Learning Toolbox) object.

    net = openl3
    net =
      DAGNetwork with properties:

             Layers: [30×1 nnet.cnn.layer.Layer]
        Connections: [29×2 table]
         InputNames: {'in'}
        OutputNames: {'out'}



    View the network architecture using the Layers property. The network has 30 layers. There are 16 layers with learnable weights, of which eight are batch normalization layers and eight are convolutional layers.

    net.Layers
    ans =
      30×1 Layer array with layers:

         1   'in'                       Image Input           128×199×1 images
         2   'batch_normalization_81'   Batch Normalization   Batch normalization with 1 channels
         3   'conv2d_71'                Convolution           64 3×3×1 convolutions with stride [1  1] and padding 'same'
         4   'batch_normalization_82'   Batch Normalization   Batch normalization with 64 channels
         5   'activation_71'            ReLU                  ReLU
         6   'conv2d_72'                Convolution           64 3×3×64 convolutions with stride [1  1] and padding 'same'
         7   'batch_normalization_83'   Batch Normalization   Batch normalization with 64 channels
         8   'activation_72'            ReLU                  ReLU
         9   'max_pooling2d_41'         Max Pooling           2×2 max pooling with stride [2  2] and padding [0  0  0  0]
        10   'conv2d_73'                Convolution           128 3×3×64 convolutions with stride [1  1] and padding 'same'
        11   'batch_normalization_84'   Batch Normalization   Batch normalization with 128 channels
        12   'activation_73'            ReLU                  ReLU
        13   'conv2d_74'                Convolution           128 3×3×128 convolutions with stride [1  1] and padding 'same'
        14   'batch_normalization_85'   Batch Normalization   Batch normalization with 128 channels
        15   'activation_74'            ReLU                  ReLU
        16   'max_pooling2d_42'         Max Pooling           2×2 max pooling with stride [2  2] and padding [0  0  0  0]
        17   'conv2d_75'                Convolution           256 3×3×128 convolutions with stride [1  1] and padding 'same'
        18   'batch_normalization_86'   Batch Normalization   Batch normalization with 256 channels
        19   'activation_75'            ReLU                  ReLU
        20   'conv2d_76'                Convolution           256 3×3×256 convolutions with stride [1  1] and padding 'same'
        21   'batch_normalization_87'   Batch Normalization   Batch normalization with 256 channels
        22   'activation_76'            ReLU                  ReLU
        23   'max_pooling2d_43'         Max Pooling           2×2 max pooling with stride [2  2] and padding [0  0  0  0]
        24   'conv2d_77'                Convolution           512 3×3×256 convolutions with stride [1  1] and padding 'same'
        25   'batch_normalization_88'   Batch Normalization   Batch normalization with 512 channels
        26   'activation_77'            ReLU                  ReLU
        27   'audio_embedding_layer'    Convolution           512 3×3×512 convolutions with stride [1  1] and padding 'same'
        28   'max_pooling2d_44'         Max Pooling           16×24 max pooling with stride [16  24] and padding 'same'
        29   'flatten'                  Keras Flatten         Flatten activations into 1-D assuming C-style (row-major) order
        30   'out'                      Regression Output     mean-squared-error

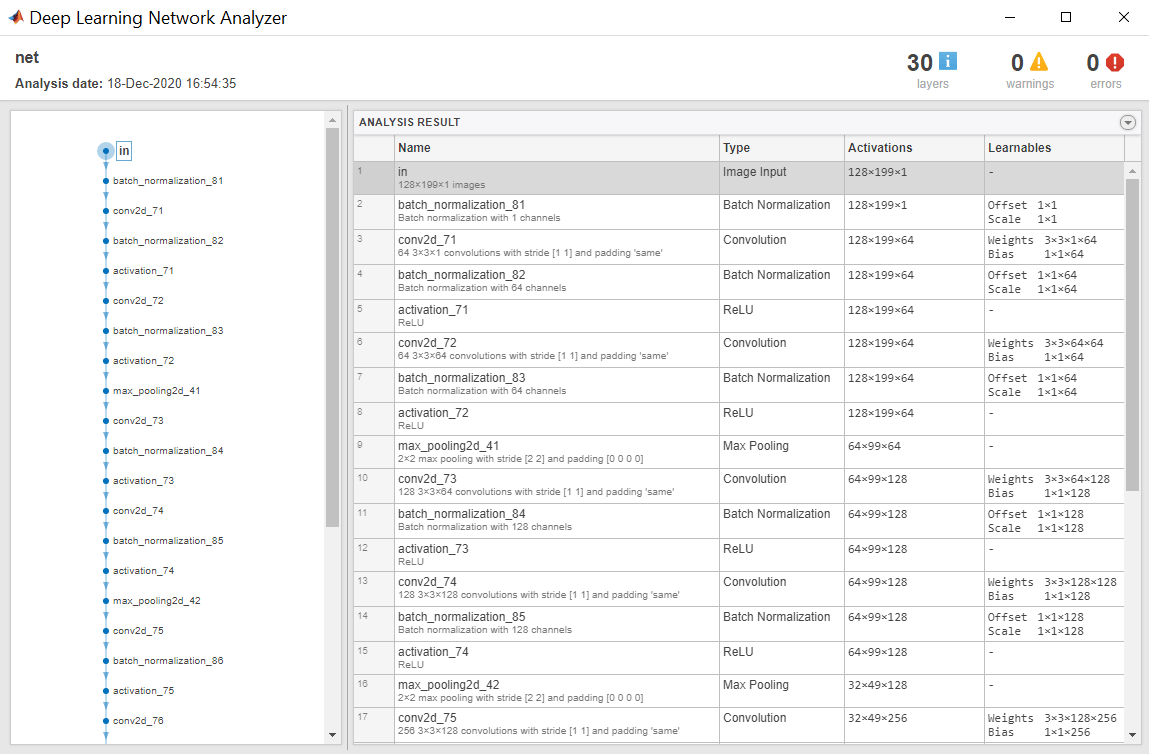

    Use analyzeNetwork (Deep Learning Toolbox) to visually explore the network.

    analyzeNetwork(net)

    Use openl3Preprocess to extract embeddings from an audio signal.

    Read in an audio signal.

    [audioIn,fs] = audioread('Counting-16-44p1-mono-15secs.wav');

    To extract spectrograms from the audio, call the openl3Preprocess function with the audio and sample rate. Use 50% overlap and set the spectrum type to linear. The openl3Preprocess function returns an array of 30 spectrograms produced using an FFT length of 512.

    features = openl3Preprocess(audioIn,fs,'OverlapPercentage',50,'SpectrumType','linear');
    [posFFTbinsOvLap50,numHopsOvLap50,~,numSpectOvLap50] = size(features)
    posFFTbinsOvLap50 = 257

    numHopsOvLap50 = 197

    numSpectOvLap50 = 30


    Call openl3Preprocess again, this time using the default overlap of 90%. The openl3Preprocess function now returns an array of 146 spectrograms.

    features = openl3Preprocess(audioIn,fs,'SpectrumType','linear');
    [posFFTbinsOvLap90,numHopsOvLap90,~,numSpectOvLap90] = size(features)
    posFFTbinsOvLap90 = 257

    numHopsOvLap90 = 197

    numSpectOvLap90 = 146


    Visualize one of the spectrograms at random.

    randSpect = randi(numSpectOvLap90);
    viewRandSpect = features(:,:,:,randSpect);
    N = size(viewRandSpect,2);
    binsToHz = (0:N-1)*fs/N;
    nyquistBin = round(N/2);
    semilogx(binsToHz(1:nyquistBin),mag2db(abs(viewRandSpect(1:nyquistBin))))
    xlabel('Frequency (Hz)')
    ylabel('Power (dB)');
    title([num2str(randSpect),'th Spectrogram'])
    axis tight
    grid on

    Create an OpenL3 network (this requires Deep Learning Toolbox) using the same 'SpectrumType'.

    net = openl3('SpectrumType','linear');

    Extract and visualize the audio embeddings.

    embeddings = predict(net,features);
    surf(embeddings,'EdgeColor','none')
    view([90,-90])
    axis([1 numSpectOvLap90 1 numSpectOvLap90])
    xlabel('Embedding Length')
    ylabel('Spectrum Number')
    title('OpenL3 Feature Embeddings')
    axis tight

    Input Arguments

    collapse all

    Name-Value Pair Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: openl3('EmbeddingLength',6144)

    Spectrum type generated from audio and used as input to the neural network, specified as 'mel128', 'mel256', or 'linear'.

    When using 'SpectrumType' and:

    • 'mel128' –– The network accepts mel spectrograms with 128 mel bands as input. The input dimensions to the network are 128-by-199-by-1-by-K, where 128 is the number of mel bands and 199 is the number of time hops.

    • 'mel256' –– The network accepts mel spectrograms with 256 mel bands as input. The input dimensions to the network are 256-by-199-by-1-by-K, where 256 is the number of mel bands and 199 is the number of time hops.

    • 'linear' –– The network accepts positive one-sided spectrograms with an FFT length of 257. The input dimensions to the network are 257-by-197-by-1-by-K, where 257 is the positive one-sided FFT length and 197 is the number of time hops.

    K represents the number of spectrograms. When preprocessing your data with openl3Preprocess, you must use the same 'SpectrumType'.

    Data Types: char | string

    Length of the output audio embedding, specified as 512 or 6144.

    Data Types: single | double

    Audio content type the neural network is trained on, specified as 'env' or 'music'.

    Set ContentType to:

    • 'env' when you want to use a model trained on environmental data.

    • 'music' when you want to use a model trained on musical data.

    Data Types: char | string

    Output Arguments

    collapse all

    Pretrained OpenL3 neural network, returned as a DAGNetwork (Deep Learning Toolbox) object.

    References

    [1] Cramer, Jason, et al. "Look, Listen, and Learn More: Design Choices for Deep Audio Embeddings." In ICASSP 2019 IEEE International Conference on Aoustics, Speech and Signal Processing (ICASSP), IEEE, 2019, pp. 3852-56. DOI.org (Crossref), doi:/10.1109/ICASSP.2019.8682475.

    Introduced in R2021a
