Ideal Rectangular Pulse Filter
Shape input signal using ideal rectangular pulses
Library
Comm Filters
Description
The Ideal Rectangular Pulse Filter block upsamples and shapes the input signal using rectangular pulses. The block replicates each input sample N times, where N is the Pulse length parameter. After replicating input samples, the block can also normalize the output signal and/or apply a linear amplitude gain.
If the Pulse delay parameter is nonzero, then the block outputs that number of zeros at the beginning of the simulation, before starting to replicate any of the input values.
This block accepts a scalar, column vector, or matrix input signal. For information about the data types each block port supports, see the Supported Data Type table on this page.
The vector size, the pulse length, and the pulse delay are mutually independent. They do not need to satisfy any conditions with respect to each other.
SingleRate Processing
When you set the Rate options parameter to Enforce
singlerate processing
, the input and output of the block have the same
sample rate. To generate the output while maintaining the input sample rate, the block
resamples the data in each column of the input such that the frame size of the output
(M_{o}) is L times larger than
that of the input (M_{o} =
M_{i}*L), where
L is the Pulse length (number of samples)
parameter value.
Multirate Processing
When you set the Rate options parameter to Allow
multirate processing
, the input and output of the block are the same size.
However, the sample rate of the output is L times faster than that of the
input (i.e. the output sample time is 1/N times the input sample time). When the block is in
multirate processing mode, you must also specify a value for the Input
processing parameter:
When you set the Input processing parameter to
Elements as channels (sample based)
, the block treats an MbyN matrix input as M*N independent channels, and processes each channel over time. The output sample period (T_{so}) is L times shorter than the input sample period (T_{so} = T_{si}/L), while the input and output sizes remain identical.When you set the Input processing parameter to
Columns as channels (frame based)
, the block treats an M_{i}byN matrix input as N independent channels. The block processes each column of the input over time by keeping the frame size constant (M_{i}=M_{o}), while making the output frame period (T_{fo}) L times shorter than the input frame period (T_{fo} = T_{fi}/L).
Normalization Methods
You determine the block's normalization behavior using the Normalize output signal and Linear amplitude gain parameters.
If you clear Normalize output signal, then the block multiplies the set of replicated values by the Linear amplitude gain parameter. This parameter must be a scalar.
If you select Normalize output signal, then the Normalization method parameter appears. The block scales the set of replicated values so that one of these conditions is true:
The sum of the samples in each pulse equals the original input value that the block replicated.
The energy in each pulse equals the energy of the original input value that the block replicated. That is, the sum of the squared samples in each pulse equals the square of the input value.
After the block applies the scaling specified in the Normalization method parameter, it multiplies the scaled signal by the constant scalar value specified in the Linear amplitude gain parameter.
The output is scaled by $$\sqrt{N}$$. If the output of this block feeds the input to the AWGN Channel block, specify the AWGN signal power parameter to be 1/N.
Parameters
 Pulse length (number of samples)
The number of samples in each output pulse; that is, the number of times the block replicates each input value when creating the output signal.
 Pulse delay (number of samples)
The number of zeros that appear in the output at the beginning of the simulation, before the block replicates any input values.
 Input processing
Specify how the block processes the input signal. You can set this parameter to one of the following options:
Columns as channels (frame based)
— When you select this option, the block treats each column of the input as a separate channel.Elements as channels (sample based)
— When you select this option, the block treats each element of the input as a separate channel.
 Rate options
Specify the method by which the block should upsample and shape the input signal. You can select one of the following options:
Enforce singlerate processing
— When you select this option, the block maintains the input sample rate, and processes the signal by increasing the output frame size by a factor of L. To select this option, you must set the Input processing parameter toColumns as channels (frame based)
.Allow multirate processing
— When you select this option, the block processes the signal such that the output sample rate is L times faster than the input sample rate.
 Normalize output signal
If you select this, then the block scales the set of replicated values before applying the linear amplitude gain.
 Normalization method
The quantity that the block considers when scaling the set of replicated values. Choices are
Sum of samples
andEnergy per pulse
. This field appears only if you select Normalize method. Linear amplitude gain
A positive scalar used to scale the output signal.
 Rounding mode
Use this parameter to specify the rounding method to be used when the result of a fixedpoint calculation does not map exactly to a number representable by the data type and scaling storing the result. The filter coefficients do not obey this parameter; they always round to
Nearest
.For more information, see Rounding Modes or Rounding Mode: Simplest (FixedPoint Designer).
 Saturate on integer overflow
Select the overflow mode for fixedpoint operations. The filter coefficients do not obey this parameter; they are always saturated.
 Coefficients
Choose how you specify the word length and the fraction length of the filter coefficients (numerator and/or denominator). See Filter Structure Diagrams in DSP System Toolbox™ Reference Guide for illustrations depicting the use of the coefficient data types in this block:
When you select
Same word length as input
, the word length of the filter coefficients match that of the input to the block. In this mode, the fraction length of the coefficients is automatically set to the binarypoint only scaling that provides you with the best precision possible given the value and word length of the coefficients.When you select
Specify word length
, you are able to enter the word length of the coefficients, in bits. In this mode, the fraction length of the coefficients is automatically set to the binarypoint only scaling that provides you with the best precision possible given the value and word length of the coefficients.When you select
Binary point scaling
, you are able to enter the word length and the fraction length of the coefficients, in bits. If applicable, you are able to enter separate fraction lengths for the numerator and denominator coefficients.When you select
Slope and bias scaling
, you are able to enter the word length, in bits, and the slope of the coefficients. If applicable, you are able to enter separate slopes for the numerator and denominator coefficients. This block requires poweroftwo slope and a bias of zero.The filter coefficients do not obey the Rounding mode and the Saturate on integer overflow parameters; they are always saturated and rounded to
Nearest
.
 Product output
Use this parameter to specify how you would like to designate the product output word and fraction lengths. See Filter Structure Diagrams and Multiplication Data Types in DSP System Toolbox Reference Guide for illustrations depicting the use of the product output data type in this block:
When you select
Same as input
, these characteristics match those of the input to the block.When you select
Binary point scaling
, you are able to enter the word length and the fraction length of the product output, in bits.When you select
Slope and bias scaling
, you are able to enter the word length, in bits, and the slope of the product output. This block requires poweroftwo slope and a bias of zero.
 Accumulator
Use this parameter to specify how you would like to designate the accumulator word and fraction lengths. See Filter Structure Diagrams and Multiplication Data Types for illustrations depicting the use of the accumulator data type in this block:
When you select
Same as input
, these characteristics match those of the input to the block.When you select
Same as product output
, these characteristics match those of the product output.When you select
Binary point scaling
, you are able to enter the word length and the fraction length of the accumulator, in bits.When you select
Slope and bias scaling
, you are able to enter the word length, in bits, and the slope of the accumulator. This block requires poweroftwo slope and a bias of zero.
 Output
Choose how you specify the output word length and fraction length:
When you select
Same as input
, these characteristics match those of the input to the block.When you select
Same as accumulator
, these characteristics match those of the accumulator.When you select
Binary point scaling
, you are able to enter the word length and the fraction length of the output, in bits.When you select
Slope and bias scaling
, you are able to enter the word length, in bits, and the slope of the output. This block requires poweroftwo slope and a bias of zero.
 Lock scaling against changes by the autoscaling tool
Select this check box to prevent any fixedpoint scaling you specify in the block mask from being overridden by the autoscaling tool in the FixedPoint Tool.
Supported Data Type
Port  Supported Data Types

In

Out

Examples

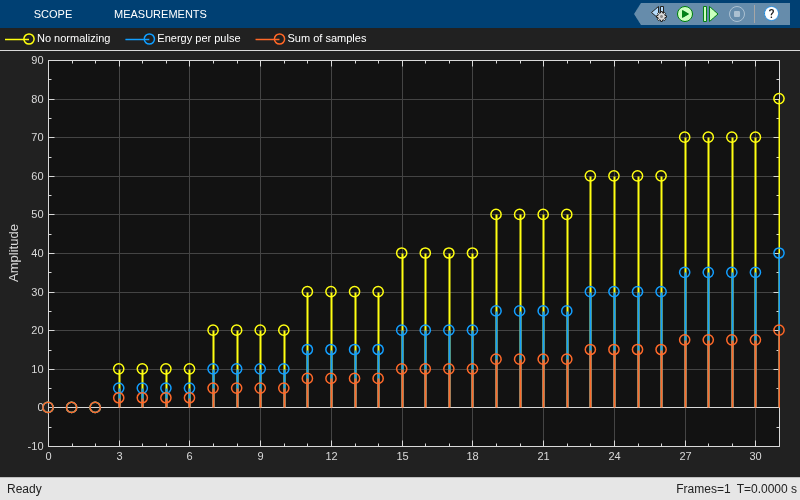

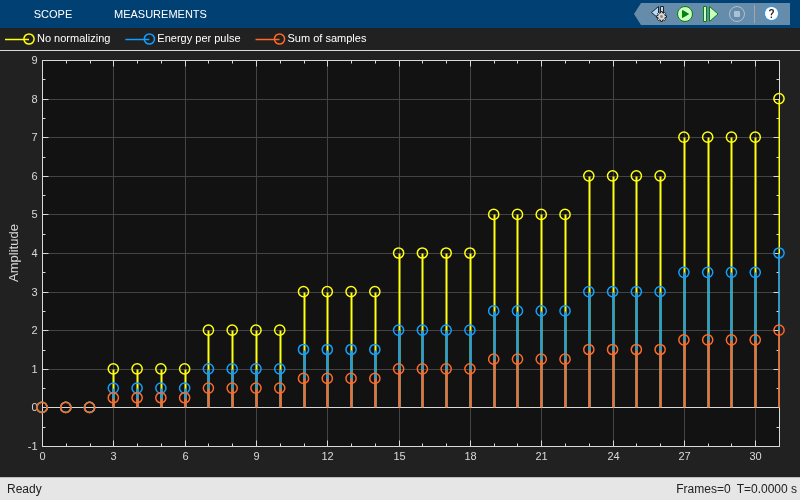

If Pulse length is 4
and Pulse
delay is the scalar 3
, then the table below shows how the
block treats the beginning of a ramp (1
, 2
,
3
,...) in several situations. (The values shown in the table do not
reflect vector sizes but merely indicate numerical values.)
Normalization Method, If Any  Linear Amplitude Gain  First Several Output Values

None (Normalize output signal cleared)  1
 0 , 0 , 0 ,
1 , 1 , 1 ,
1 , 2 , 2 ,
2 , 2 , 3 ,
3 , 3 , 3 ,...
None (Normalize output signal cleared)  10
 0 , 0 , 0 ,
10 , 10 , 10 ,
10 , 20 , 20 ,
20 , 20 , 30 ,
30 , 30 , 30 ,...
Sum of samples
 1
 0 , 0 , 0 ,
0.25 , 0.25 , 0.25 ,
0.25 , 0.5 , 0.5 ,
0.5 , 0.5 , 0.75 ,
0.75 , 0.75 , 0.75 ,..., where
0.25*4=1

Sum of samples
 10
 0 , 0 , 0 ,
2.5 , 2.5 , 2.5 ,
2.5 , 5 , 5 ,
5 , 5 , 7.5 ,
7.5 , 7.5 , 7.5 , ...
Energy per pulse
 1
 0 , 0 , 0 ,
0.5 , 0.5 , 0.5 ,
0.5 , 1.0 , 1.0 ,
1.0 , 1.0 , 1.5 ,
1.5 , 1.5 , 1.5 ,..., where
(0.5)^2*4=1^2

Energy per pulse
 10
 0 , 0 , 0 ,
5 , 5 , 5 ,
5 , 10 , 10 ,
10 , 10 , 15 ,
15 , 15 , 15 ,...
