## Specify Fixed-Point Attributes for Blocks

### Fixed-Point Block Parameters

Toolbox blocks that have fixed-point support usually allow you to specify fixed-point characteristics through block parameters. By specifying data type and scaling information for these fixed-point parameters, you can simulate your target hardware more closely.

**Note**

Floating-point inheritance takes precedence over the settings discussed in this section. When the block has floating-point input, all block data types match the input.

You can find most fixed-point parameters on the **Data Types**
pane of toolbox blocks. The following figure shows a typical **Data
Types** pane.

All toolbox blocks with fixed-point capabilities share a set of common parameters, but each block can have a different subset of these fixed-point parameters. The following table provides an overview of the most common fixed-point block parameters.

Fixed-Point Data Type Parameter | Description |
---|---|

Rounding Mode | Specifies the rounding mode for the block to use when the specified data type and scaling cannot exactly represent the result of a fixed-point calculation. See Rounding Modes for more information on the available options. |

Saturate on integer overflow | When you select this parameter, the block saturates the result of its fixed-point operation. When you clear this parameter, the block wraps the result of its fixed-point operation. For details on saturate and wrap, see Overflow Handling for fixed-point operations. |

Intermediate Product | Specifies the data type and scaling of the intermediate product for fixed-point blocks. Blocks that feed multiplication results back to the input of the multiplier use the intermediate product data type. See the reference page of a specific block to learn about the intermediate product data type for that block. |

Product Output | Specifies the data type and scaling of the product output for fixed-point blocks that must compute multiplication results. See the reference page of a specific block to learn about the product output data type for that block. For or complex-complex multiplication, the multiplication result is in the accumulator data type. See Multiplication Data Types for more information on complex fixed-point multiplication in toolbox software. |

Accumulator | Specifies the data type and scaling of the accumulator (sum) for fixed-point blocks that must hold summation results for further calculation. Most such blocks cast to the accumulator data type before performing the add operations (summation). See the reference page of a specific block for details on the accumulator data type of that block. |

Output | Specifies the output data type and scaling for blocks. |

#### Using the Data Type Assistant

The **Data Type Assistant** is an interactive graphical tool
available on the **Data Types** pane of some fixed-point toolbox
blocks.

To learn more about using the **Data Type Assistant** to help you
specify block data type parameters, see Specify Data Types Using Data Type Assistant (Simulink).

#### Checking Signal Ranges

Some fixed-point toolbox blocks have **Minimum** and
**Maximum** parameters on the **Data Types**
pane. When a fixed-point data type has these parameters, you can use them to specify
appropriate minimum and maximum values for range checking purposes.

To learn how to specify signal ranges and enable signal range checking, see Specify Signal Ranges (Simulink).

### Specify System-Level Settings

You can monitor and control fixed-point settings for toolbox blocks at a system or
subsystem level with the Fixed-Point Tool. For more information, see **Fixed-Point Tool (Fixed-Point Designer)**.

#### Logging

The Fixed-Point Tool logs overflows, saturations, and simulation minimums and
maximums for fixed-point toolbox blocks. The Fixed-Point Tool does not log overflows
and saturations when the `Data overflow`

line in the
**Diagnostics > Data Integrity** pane of the
Configuration Parameters dialog box is set to
`None`

.

#### Autoscaling

You can use the Fixed-Point Tool autoscaling feature to set the scaling for toolbox fixed-point data types.

#### Data type override

toolbox blocks obey the `Use local settings`

,
`Double`

, `Single`

, and
`Off`

modes of the **Data type
override** parameter in the Fixed-Point Tool. The
`Scaled double`

mode is also supported for
toolboxes source and byte-shuffling blocks, and for some arithmetic blocks such as
Difference and Normalization.

Scaled double is a double data type that retains fixed-point scaling information. Using the data type override, you can convert your fixed-point data types to scaled doubles. You can then simulate to determine the ideal floating-point behavior of your system. After you gather that information, you can turn data type override off to return to fixed-point data types, and your quantities still have their original scaling information because it was held in the scaled double data types.

### Inherit via Internal Rule

Selecting appropriate word lengths and scalings for the fixed-point parameters in your
model can be challenging. To aid you, an ```
Inherit via internal
rule
```

choice is often available for fixed-point block data type
parameters, such as the **Accumulator** and **Product
output** signals. The following sections describe how the word and fraction
lengths are selected for you when you choose ```
Inherit via internal
rule
```

for a fixed-point block data type parameter in toolbox
software:

**Note**

In the equations in the following sections, *WL* = word length
and *FL* = fraction length.

#### Internal Rule for Accumulator Data Types

The internal rule for accumulator data types first calculates the ideal,
full-precision result. Where *N* is the number of addends:

$$W{L}_{idealaccumulator}=W{L}_{inputtoaccumulator}+\mathrm{floor}({\mathrm{log}}_{2}(N-1))+1$$

$$F{L}_{idealaccumulator}=F{L}_{inputtoaccumulator}$$

For example, consider summing all the elements of a vector of length 6 and data type sfix10_En8. The ideal, full-precision result has a word length of 13 and a fraction length of 8.

The accumulator can be real or complex. The preceding equations are used for both the real and imaginary parts of the accumulator. For any calculation, after the full-precision result is calculated, the final word and fraction lengths set by the internal rule are affected by your particular hardware. See The Effect of the Hardware Implementation Pane on the Internal Rule for more information.

#### Internal Rule for Product Data Types

The internal rule for product data types first calculates the ideal, full-precision result:

$$W{L}_{idealproduct}=W{L}_{input1}+W{L}_{input2}$$

$$F{L}_{idealproduct}=F{L}_{input1}+F{L}_{input2}$$

For example, multiplying together the elements of a real vector of length 2 and data type sfix10_En8. The ideal, full-precision result has a word length of 20 and a fraction length of 16.

For real-complex multiplication, the ideal word length and fraction length is used for both the complex and real portion of the result. For complex-complex multiplication, the ideal word length and fraction length is used for the partial products, and the internal rule for accumulator data types described above is used for the final sums. For any calculation, after the full-precision result is calculated, the final word and fraction lengths set by the internal rule are affected by your particular hardware. See The Effect of the Hardware Implementation Pane on the Internal Rule for more information.

#### Internal Rule for Output Data Types

A few toolbox blocks have an `Inherit via internal rule`

choice available for the block output. The internal rule used in these cases is
block-specific, and the equations are listed in the block reference page.

As with accumulator and product data types, the final output word and fraction lengths set by the internal rule are affected by your particular hardware, as described in The Effect of the Hardware Implementation Pane on the Internal Rule.

#### The Effect of the Hardware Implementation Pane on the Internal Rule

The internal rule selects word lengths and fraction lengths that are appropriate
for your hardware. To get the best results using the internal rule, you must specify
the type of hardware you are using on the **Hardware
Implementation** pane of the Configuration Parameters dialog box. To
open this dialog box, click **Modeling** > **Model
Settings** in the Simulink^{®} toolstrip.

**ASIC/FPGA. **On an ASIC/FPGA target, the ideal, full-precision word length and fraction
length calculated by the internal rule are used. If the calculated ideal word
length is larger than the largest allowed word length, you receive an
error.

**Other targets. **For all targets other than ASIC/FPGA, the ideal, full-precision word length
calculated by the internal rule is rounded up to the next available word length
of the target. The calculated ideal fraction length is used, keeping the
least-significant bits.

If the calculated ideal word length for a product data type is larger than the largest word length on the target, you receive an error. If the calculated ideal word length for an accumulator or output data type is larger than the largest word length on the target, the largest target word length is used.

The largest word length allowed for Simulink and toolbox software on any target is 128 bits.

#### Internal Rule Examples

The following sections show examples of how the internal rule interacts with the
**Hardware Implementation** pane to calculate accumulator data types
and product data
types.

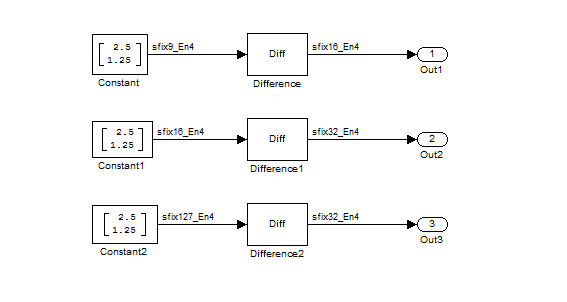

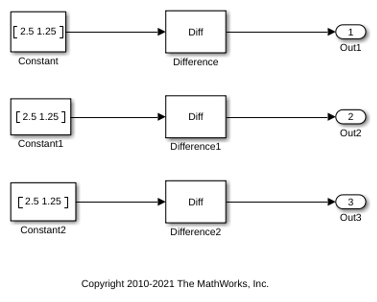

**Accumulator Data Types. **Consider the following model ex_internalRule_accumExp.

In the Difference blocks, the
**Accumulator** parameter is set to ```
Inherit:
Inherit via internal rule
```

, and the **Output**
parameter is set to `Inherit: Same as accumulator`

.
Therefore, you can see the accumulator data type calculated by the internal rule
on the output signal in the model.

In the preceding model, the **Device type** parameter in the
**Hardware Implementation** pane of the Configuration
Parameters dialog box is set to `ASIC/FPGA`

. Therefore,
the accumulator data type used by the internal rule is the ideal, full-precision
result.

Calculate the full-precision word length for each of the Difference blocks in the model:

$$\begin{array}{l}W{L}_{idealaccumulator}=W{L}_{inputtoaccumulator}+\mathrm{floor}({\mathrm{log}}_{2}(numberofaccumulations))+1\\ W{L}_{idealaccumulator}=9+\mathrm{floor}({\mathrm{log}}_{2}(1))+1\\ W{L}_{idealaccumulator}=9+0+1=10\\ \\ W{L}_{idealaccumulator1}=W{L}_{inputtoaccumulator1}+\mathrm{floor}({\mathrm{log}}_{2}(numberofaccumulations))+1\\ W{L}_{idealaccumulator1}=16+\mathrm{floor}({\mathrm{log}}_{2}(1))+1\\ W{L}_{idealaccumulator1}=16+0+1=17\\ \\ W{L}_{idealaccumulator2}=W{L}_{inputtoaccumulator2}+\mathrm{floor}({\mathrm{log}}_{2}(numberofaccumulations))+1\\ W{L}_{idealaccumulator2}=127+\mathrm{floor}({\mathrm{log}}_{2}(1))+1\\ W{L}_{idealaccumulator2}=127+0+1=128\end{array}$$

Calculate the full-precision fraction length, which is the same for each Matrix Sum block in this example:

$$\begin{array}{l}F{L}_{idealaccumulator}=F{L}_{inputtoaccumulator}\\ F{L}_{idealaccumulator}=4\end{array}$$

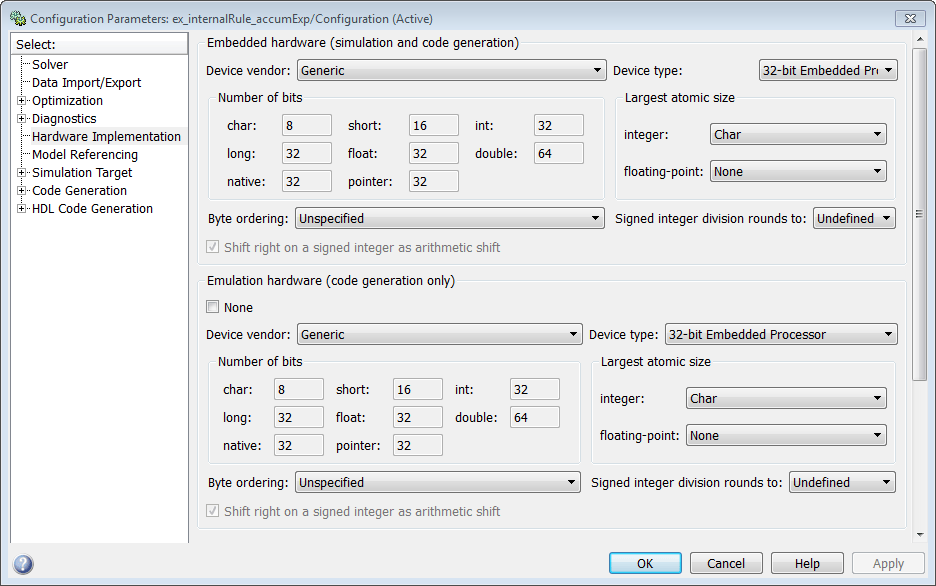

Now change the **Device type** parameter in the
**Hardware Implementation** pane of the Configuration
Parameters dialog box to `32–bit Embedded Processor`

,
by changing the parameters as shown in the following figure.

As you can see in the dialog box, this device has 8-, 16-, and 32-bit word lengths available. Therefore, the ideal word lengths of 10, 17, and 128 bits calculated by the internal rule cannot be used. Instead, the internal rule uses the next largest available word length in each case You can see this if you rerun the model, as shown in the following figure.

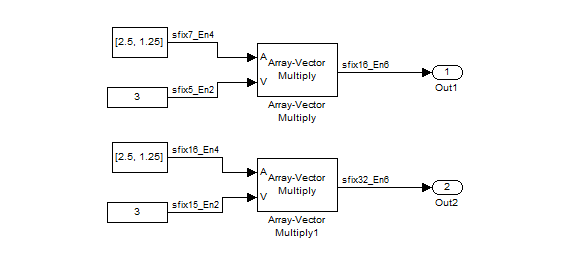

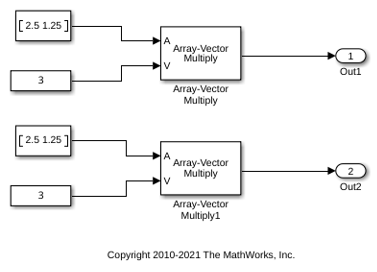

**Product Data Types. **Consider the following model ex_internalRule_prodExp.

In the Array-Vector Multiply blocks, the
**Product Output** parameter is set to
`Inherit: Inherit via internal rule`

, and the
**Output** parameter is set to ```
Inherit: Same
as product output
```

. Therefore, you can see the product output
data type calculated by the internal rule on the output signal in the model. The
setting of the **Accumulator** parameter does not matter
because this example uses real values.

For the preceding model, the **Device type** parameter in the
**Hardware Implementation** pane of the Configuration
Parameters dialog box is set to `ASIC/FPGA`

. Therefore,
the product data type used by the internal rule is the ideal, full-precision
result.

Calculate the full-precision word length for each of the Array-Vector Multiply blocks in the model:

$$\begin{array}{l}W{L}_{idealproduct}=W{L}_{inputa}+W{L}_{inputb}\\ W{L}_{idealproduct}=7+5=12\\ \\ W{L}_{idealproduct1}=W{L}_{inputa}+W{L}_{inputb}\\ W{L}_{idealproduct1}=16+15=31\end{array}$$

Calculate the full-precision fraction length, which is the same for each Array-Vector Multiply block in this example:

$$\begin{array}{l}F{L}_{idealaccumulator}=F{L}_{inputtoaccumulator}\\ F{L}_{idealaccumulator}=4\end{array}$$

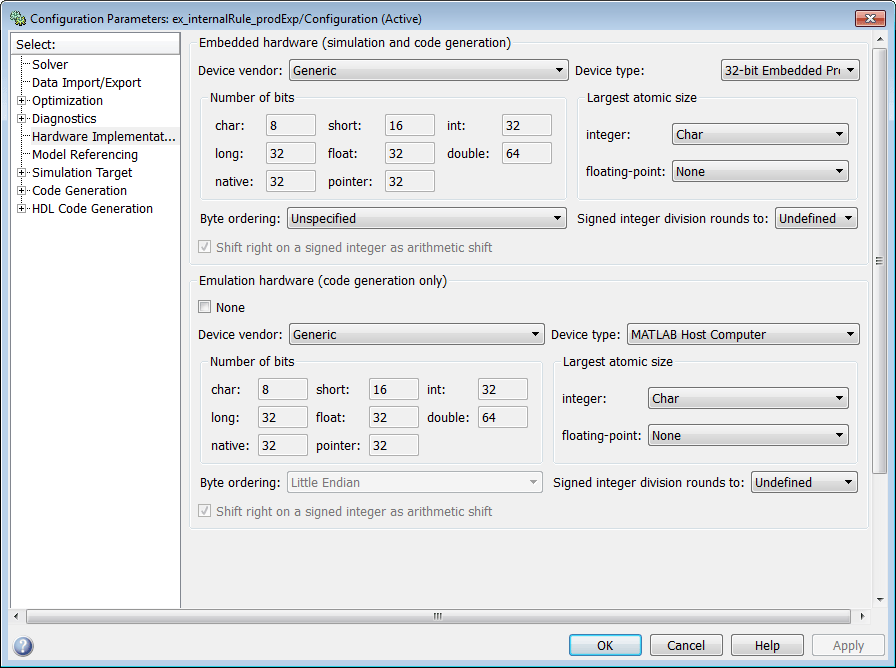

Now change the **Device type** parameter in the
**Hardware Implementation** pane of the Configuration
Parameters dialog box to `32–bit Embedded Processor`

,
as shown in the following figure.

As you can see in the dialog box, this device has 8-, 16-, and 32-bit word lengths available. Therefore, the ideal word lengths of 12 and 31 bits calculated by the internal rule cannot be used. Instead, the internal rule uses the next largest available word length in each case. You can see this if you rerun the model, as shown in the following figure.

### Specify Data Types for Fixed-Point Blocks

The following sections show you how to use the Fixed-Point Tool to select appropriate
data types for fixed-point blocks in the `ex_fixedpoint_tut`

model:

#### Prepare the Model

Open the model by typing ex_fixedpoint_tut at the MATLAB

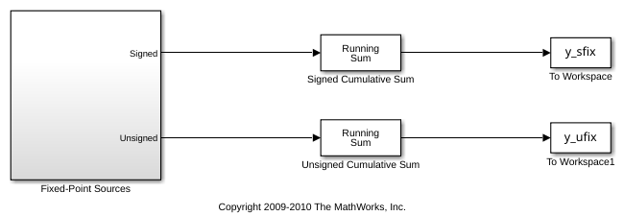

^{®}command line.This model uses the Cumulative Sum block to sum the input coming from the Fixed-Point Sources subsystem. The Fixed-Point Sources subsystem outputs two signals with different data types:

The Signed source has a word length of 16 bits and a fraction length of 15 bits.

The Unsigned source has a word length of 16 bits and a fraction length of 16 bits.

Run the model to check for overflow. MATLAB displays the following warnings at the command line:

Warning: Overflow occurred. This originated from 'ex_fixedpoint_tut/Signed Cumulative Sum'. Warning: Overflow occurred. This originated from 'ex_fixedpoint_tut/Unsigned Cumulative Sum'.

According to these warnings, overflow occurs in both Cumulative Sum blocks.

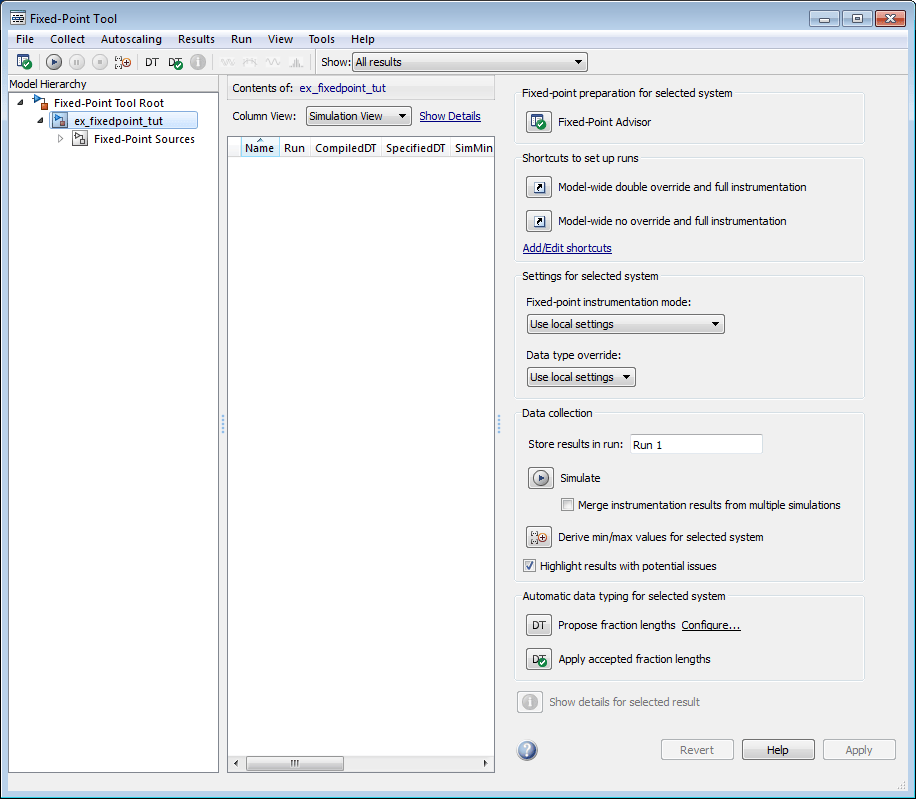

To investigate the overflows in this model, use the Fixed-Point Tool. You can open the Fixed-Point Tool by selecting

**Tools**>**Fixed-Point**>**Fixed-Point Tool**from the model menu. Turn on logging for all blocks in your model by setting the**Fixed-point instrumentation mode**parameter to`Minimums, maximums and overflows`

.Now that you have turned on logging, rerun the model by clicking the Simulation button.

The results of the simulation appear in a table in the central

**Contents**pane of the Fixed-Point Tool. Review the following columns:**Name**— Provides the name of each signal in the following format:`Subsystem Name/Block Name: Signal Name`

.**SimDT**— The simulation data type of each logged signal.**SpecifiedDT**— The data type specified on the block dialog for each signal.**SimMin**— The smallest representable value achieved during simulation for each logged signal.**SimMax**— The largest representable value achieved during simulation for each logged signal.**OverflowWraps**— The number of overflows that wrap during simulation.

You can also see that the

**SimMin**and**SimMax**values for the Accumulator data types range from`0`

to`.9997`

. The logged results indicate that 8,192 overflows wrapped during simulation in the Accumulator data type of the Signed Cumulative Sum block. Similarly, the Accumulator data type of the Unsigned Cumulative Sum block had 16,383 overflows wrap during simulation.To get more information about each of these data types, highlight them in the

**Contents**pane, and click the**Show details for selected result**button ()Assume a target hardware that supports 32-bit integers, and set the Accumulator word length in both Cumulative Sum blocks to

`32`

. To do so, perform the following steps:Right-click the

`Signed Cumulative Sum: Accumulator`

row in the Fixed-Point Tool pane, and select**Highlight Block In Model**.Double-click the block in the model, and select the

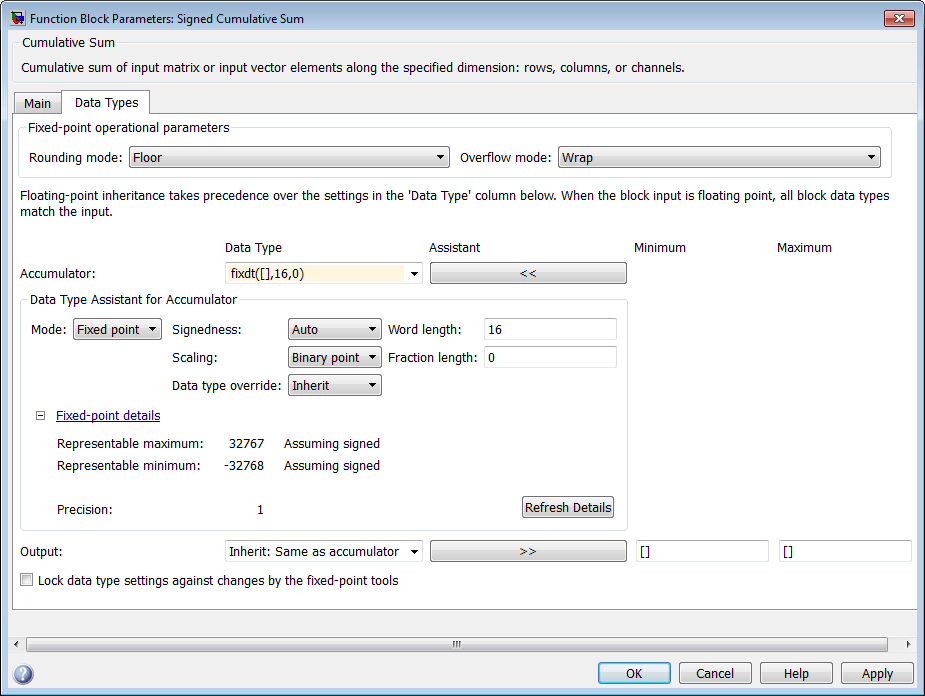

**Data Types**pane of the dialog box.Open the

**Data Type Assistant**for Accumulator by clicking the Assistant button () in the Accumulator data type row.Set the

**Mode**to`Fixed Point`

. To see the representable range of the current specified data type, click the**Fixed-point details**link. The tool displays the representable maximum and representable minimum values for the current data type.Change the

**Word length**to`32`

, and click the**Refresh details**button in the**Fixed-point details**section to see the updated representable range. When you change the value of the**Word length**parameter, the**Data Type**edit box automatically updates.Click

**OK**on the block dialog box to save your changes and close the window.Set the word length of the Accumulator data type of the Unsigned Cumulative Sum block to

`32`

bits. You can do so in one of two ways:Type the data type

`fixdt([],32,0)`

directly into**Data Type**edit box for the Accumulator data type parameter.Perform the same steps you used to set the word length of the Accumulator data type of the Signed Cumulative Sum block to

`32`

bits.

To verify your changes in word length and check for overflow, rerun your model. To do so, click the

**Simulate**button in the Fixed-Point Tool.The

**Contents**pane of the Fixed-Point Tool updates, and you can see that no overflows occurred in the most recent simulation. However, you can also see that the**SimMin**and**SimMax**values range from`0`

to`0`

. This underflow happens because the fraction length of the Accumulator data type is too small. The**SpecifiedDT**cannot represent the precision of the data values. The following sections discuss how to find a floating-point benchmark and use the Fixed-Point Tool to propose fraction lengths.

#### Use Data Type Override to Find a Floating-Point Benchmark

The **Data type override** feature of the Fixed-Point tool allows
you to override the data types specified in your model with floating-point types.
Running your model in `Double`

override mode gives you a
reference range to help you select appropriate fraction lengths for your fixed-point
data types. To do so, perform the following steps:

Open the Fixed-Point Tool and set

**Data type override**to`Double`

.Run your model by clicking the

**Run simulation and store active results**button.Examine the results in the

**Contents**pane of the Fixed-Point Tool. Because you ran the model in`Double`

override mode, you get an accurate, idealized representation of the simulation minimums and maximums. These values appear in the**SimMin**and**SimMax**parameters.Now that you have an accurate reference representation of the simulation minimum and maximum values, you can more easily choose appropriate fraction lengths. Before making these choices, save your active results to reference so you can use them as your floating-point benchmark. To do so, select

**Results**>**Move Active Results To Reference**from the Fixed-Point Tool menu. The status displayed in the**Run**column changes from`Active`

to`Reference`

for all signals in your model.

#### Use the Fixed-Point Tool to Propose Fraction Lengths

Now that you have your `Double`

override results saved as
a floating-point reference, you are ready to propose fraction lengths.

To propose fraction lengths for your data types, you must have a set of

`Active`

results available in the Fixed-Point Tool. To produce an active set of results, simply rerun your model. The tool now displays both the`Active`

results and the`Reference`

results for each signal.Select the

**Use simulation min/max if design min/max is not available**check box. You did not specify any design minimums or maximums for the data types in this model. Thus, the tool uses the logged information to compute and propose fraction lengths. For information on specifying design minimums and maximums, see Specify Signal Ranges (Simulink).Click the

**Propose fraction lengths**button (). The tool populates the proposed data types in the**ProposedDT**column of the**Contents**pane. The corresponding proposed minimums and maximums are displayed in the**ProposedMin**and**ProposedMax**columns.

#### Examine the Results and Accept the Proposed Scaling

Before accepting the fraction lengths proposed by the Fixed-Point Tool, it is important to look at the details of that data type. Doing so allows you to see how much of your data the suggested data type can represent. To examine the suggested data types and accept the proposed scaling, perform the following steps:

In the

**Contents**pane of the Fixed-Point Tool, you can see the proposed fraction lengths for the data types in your model.The proposed fraction length for the Accumulator data type of both the Signed and Unsigned Cumulative Sum blocks is 17 bits.

To get more details about the proposed scaling for a particular data type, highlight the data type in the

**Contents**pane of the Fixed-Point Tool.Open the Autoscale Information window for the highlighted data type by clicking the

**Show autoscale information for the selected result**button ().

When the Autoscale Information window opens, check the

**Value**and**Percent Proposed Representable**columns for the**Simulation Minimum**and**Simulation Maximum**parameters. You can see that the proposed data type can represent 100% of the range of simulation data.To accept the proposed data types, select the check box in the

**Accept**column for each data type whose proposed scaling you want to keep. Then, click the**Apply accepted fraction lengths**button (). The tool updates the specified data types on the block dialog boxes and the**SpecifiedDT**column in the**Contents**pane.To verify the newly accepted scaling, set the

**Data type override**parameter back to**Use local settings**, and run the model. Looking at**Contents**pane of the Fixed-Point Tool, you can see the following details:The

**SimMin**and**SimMax**values of the`Active`

run match the**SimMin**and**SimMax**values from the floating-point`Reference`

run.There are no longer any overflows.

The

**SimDT**does not match the**SpecifiedDT**for the Accumulator data type of either Cumulative Sum block. This difference occurs because the Cumulative Sum block always inherits its**Signedness**from the input signal and only allows you to specify a**Signedness**of`Auto`

. Therefore, the**SpecifiedDT**for both Accumulator data types is`fixdt([],32,17)`

. However, because the Signed Cumulative Sum block has a signed input signal, the**SimDT**for the Accumulator parameter of that block is also signed (`fixdt(1,32,17)`

). Similarly, the**SimDT**for the Accumulator parameter of the Unsigned Cumulative Sum block inherits its**Signedness**from its input signal and thus is unsigned (`fixdt(0,32,17)`

).
