Puncture

Output elements that correspond to 1s in binary puncture vector

  • Library:
  • Communications Toolbox / Sequence Operations

Description

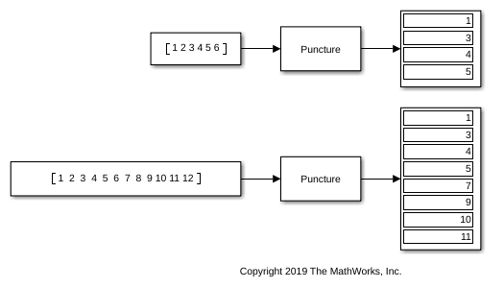

The Puncture block creates an output vector by removing selected elements of the input vector and preserving others. The block determines which elements to remove and preserve by using the binary Puncture vector parameter. The block repeats the puncturing pattern, as necessary, to include all input elements. The preserved elements appear in the output vector in the same order in which they appear in the input vector.

Ports

Input

expand all

Input signal, specified as a numeric column vector. The input length must be an integer multiple of the Puncture vector parameter length.

Data Types: double
Complex Number Support: Yes

Output

expand all

Output signal, returned as a column vector. The length of the output vector is an integer multiple of the number of 1s in the Puncture vector parameter. The output signal contains only elements from the input signal that align with integer multiples of the element location of 1s in the Puncture vector.

Parameters

expand all

Puncture pattern, specified as a column vector of binary values. The input signal length must be an integer multiple of the Puncture vector parameter length. The block repeats the puncturing pattern, as necessary, to include all input elements.

  • The element locations of 0s in Puncture vector indicate which elements are removed from the input signal to construct the output signal.

  • The element locations of 1s in Puncture vector indicate which elements are preserved from the input signal to construct the output signal.

Block Characteristics

Data Types

Boolean | double | enumerated | fixed point | integer | single

Multidimensional Signals

no

Variable-Size Signals

no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Introduced before R2006a
