Integer-Input RS Encoder
Create Reed-Solomon code from integer vector data
Libraries:
Communications Toolbox /
Error Detection and Correction /
Block
Description
The Integer-Input RS Encoder block creates a Reed-Solomon code.
The symbols for the code are integers between 0 and
2M-1, which represent elements of the finite field
GF(2M). The default value of
M is the smallest integer that is greater than or equal to
log2(N+1), that is, ceil(log2(N+1))
. You can change the
default value of M by specifying the primitive polynomial for
GF(2M), as described in Specify the Primitive Polynomial below. Restrictions on
M and N are described in Restrictions on M and the Codeword Length N.
The input and output are integer-valued signals that represent messages and codewords, respectively. For more information, see Input and Output Signal Length in RS Blocks.
An (N, K) Reed-Solomon code can correct up to
floor((N-K)/2)
symbol errors (not bit errors) in each codeword.
Suppose M = 3, N = 23-1 = 7, and K = 5. Then a message is a
vector of length 5 whose entries are integers between 0 and 7. A corresponding codeword is a

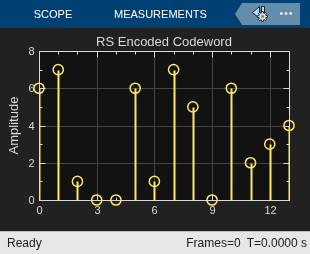

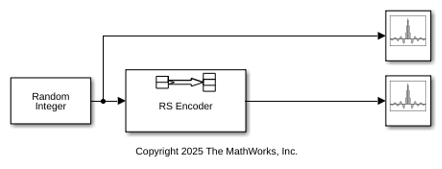

vector of length 7 whose entries are integers between 0 and 7. The following figure illustrates
possible input and output signals to this block when Codeword length N is
set to 7
, Message length K is set to
5
, and the default primitive and generator polynomials are used.
Examples

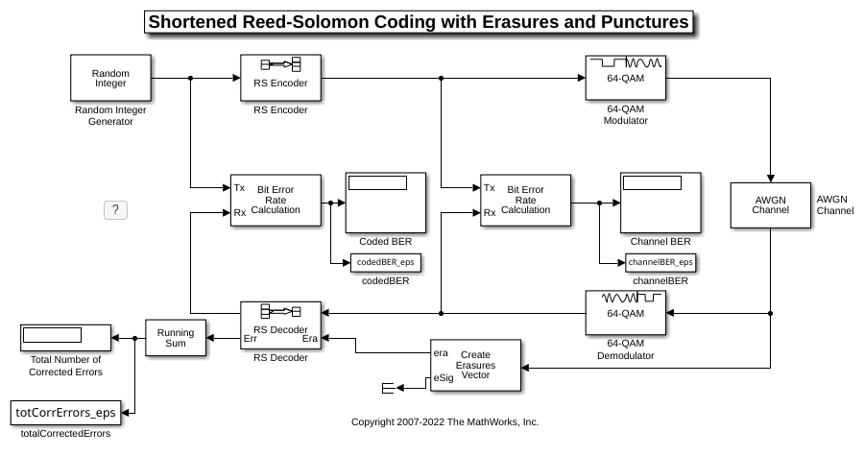

Reed-Solomon Coding with Erasures, Punctures, and Shortening in Simulink
Configure Reed-Solomon (RS) codes to perform block coding with erasures, punctures, and shortening.
Ports
Input
In — Message
integer column vector
Message, specified as one of the following:
When there is no message shortening, a (NC×K)-by-1 integer column vector.
When there is message shortening, a (NC×S)-by-1 integer column vector.
NC is the number of message words, K is the Message length K, and S is the Shortened message length S.
Note
The number of decoded message words equals the number of codewords.
For more information, see Input and Output Signal Length in RS Blocks.
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
Output
Out — Reed-Solomon codeword
integer column vector
Reed-Solomon codeword, returned as an (NC×(N – K + S – P)-by-1 integer column vector. NC is the number of codewords, N is the Codeword length N, K is the Message length K, S is the Shortened message length S, P is the number of punctures per codeword.
For more information, see Input and Output Signal Length in RS Blocks.
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
For more information, see Supported Data Types.
Parameters
To edit block parameters interactively, use the Property Inspector. From the Simulink® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
Codeword length N — Codeword length
7
(default) | integer
Codeword length, specified as an integer.
For more information, see Restrictions on M and the Codeword Length N and Input and Output Signal Length in RS Blocks.
Message length K — Message word length
3
(default) | integer
Message word length, specified as an integer in the range [1, N–2], where N is the codeword length.
Shortened message length S — Shortened message word length
3
(default) | integer
Shortened message word length, specified as an integer, such that S ≤ K. When Shortened message length S < Message length K, the Reed-Solomon code is shortened.
You still specify N and K values for the full-length (N, K) code but the decoding is shortened to an (N–K+S, S) code.
Dependencies
To enable this parameter, select Specify shortened message length.
Generator polynomial — Generator polynomial
rsgenpoly(7, 3, [], [], 'double')
(default) | polynomial character vector | binary row vector | binary Galois row vector
Generator polynomial with values in the range [0 to 2M–1], in order of descending power, specified as one of the following:
A polynomial character vector. For more information, see Representation of Polynomials in Communications Toolbox.
An integer row vector that represents the coefficients of the generator polynomial in order of descending power.
An integer Galois row vector that represents the coefficients of the generator polynomial in order of descending power.
Each coefficient is an element of the Galois field defined by the primitive polynomial. For more information, see Specify the Generator Polynomial.
Example: [1 3 1 2 3]
, which is equivalent to
rsgenpoly(7,3)
Dependencies
To enable this parameter, select Specify generator polynomial.
Primitive polynomial — Primitive polynomial
'X^3 + X + 1'
(default) | polynomial character vector | binary row vector
Primitive polynomial in order of descending power. This polynomial is of order M and defines the finite Galois field GF(2M) corresponding to the integers that form message words and codewords. Specify the primitive polynomial as one of the following:
A polynomial character vector. For more information, see Representation of Polynomials in Communications Toolbox.
A binary row vector that represents the coefficients of the generator polynomial.
For more information, see Specify the Primitive Polynomial.
Example: 'X^3 + X + 1'
, which is the primitive polynomial used for a
(7,3) code, ppoly = primpoly(3,'nodisplay'); int2bit(ppoly,ceil(log2(max(ppoly))))'
Dependencies
To enable this parameter, select Specify primitive polynomial.
Puncture vector — Puncture vector
[ones(2,1); zeros(2,1)]
(default) | binary column vector
Puncture vector, specified as an (N–K)-by-1 binary
column vector. Element indices with 1
s represent data
symbol indices that pass through the block unaltered. Element indices
with 0
s represent data symbol indices that get
punctured, or removed, from the data stream. For more information, see Puncturing and Erasures.
Note
If the encoder is processing multiple codewords per frame, then the same puncture pattern holds for all codewords.
Dependencies
To enable this parameter, select Puncture code.
Block Characteristics
Data Types |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
More About
Input and Output Signal Length in RS Blocks
The Reed-Solomon code has a message word length, K, or shortened message word length, S. The codeword length is N – K + S – P, where N is the full codeword length and P is the number of punctures per codeword. When there is no message shortening, the codeword length expression reduces to N – P, because K = S. If the decoder is processing multiple codewords per frame, then the same puncture pattern holds for all codewords.
This table provides expressions for the input and output signal lengths for the Reed-Solomon encoder and decoder.
The notation y = NC × x denotes that y is an integer multiple of x.
Input, Erasure, and Output Vector Lengths | ||
---|---|---|
RS Block Coder | No Message Shortening Used | Message Shortening Used |
Integer-Input RS Encoder |
Input Length (symbols): NC × K Output Length (symbols): NC × (N–P) |
Input Length (symbols): NC × S Output Length (symbols): NC × (N–K+S–P) |
Integer-Output RS Decoder |
Input Length (symbols): NC × (N–P) Erasures Length (symbols): NC × (N–P) Output Length (symbols): NC × K |
Input Length (symbols): NC × (N–K+S–P) Erasures Length (symbols): NC × (N–K+S–P) Output Length (symbols): NC × S |
N is the codeword length.
K is the message word length.
S is the shortened message word length.
NC is the number of codewords (and message words).
P is the number of punctures, and is equal to the number of zeros in the puncture vector.
M is the degree of the primitive polynomial. Each group of M bits represents an integer between
0
and2M–1
that belongs to the finite Galois fieldGF(2M)
.
For more information on representing data for Reed-Solomon codes, see Integer Format (Reed-Solomon Only).
Restrictions on M and the Codeword Length N
If you do not select Specify primitive polynomial, valid values for the codeword length, N, are from 7 to 65535. In this case, the block uses the default primitive polynomial of degree
M = ceil(log2(N+1))
. You can display the default primitive polynomial by runningprimpoly(ceil(log2(N+1)))
.If you select Specify primitive polynomial, valid values for the primitive polynomial degree, M, are from 3 to 16. The valid values for N in this case are from 7 to 2M–1. Selecting Specify primitive polynomial enables you to specify the primitive polynomial that defines the finite field GF(2M), which corresponds to the values that form message words and codewords.
Specify the Primitive Polynomial
You can specify the primitive polynomial that defines the finite field
GF(2M),
corresponding to the integers that form messages and codewords. To do so, first select
Specify primitive polynomial. Then, in the Primitive
polynomial text box, enter a binary row vector that represents a primitive
polynomial over GF(2M), in
descending order of powers. For example, to specify the polynomial
x3+x+1, enter the vector [1 0 1 1]
.
If you do not select Specify primitive polynomial, the block uses the default primitive polynomial of degree M = ceil(log2(N+1)). You can display the default polynomial by entering primpoly(ceil(log2(N+1)))
at the MATLAB® prompt.
Specify the Generator Polynomial
Select Specify generator polynomial to enable the Generator polynomial parameter for specifying the generator polynomial of the Reed-Solomon code. Enter an integer row vector with element values from 0 to 2M-1. The vector represents a polynomial, in descending order of powers, whose coefficients are elements of GF(2M) represented in integer format. For more information about integer and binary format, see Integer Format (Reed-Solomon Only). The generator polynomial must be equal to a polynomial with this factored form:
g(x) = (x+αb)(x+αb+1)(x+αb+2)...(x+αb+N-K-1)
α is the primitive element of the Galois field over which the input message is defined, and b is an integer.
If you do not select Specify generator polynomial, the block uses the
default generator polynomial, corresponding to b=1, for Reed-Solomon
encoding. You can display the default generator polynomial by running rsgenpoly
.
If you are using the default primitive polynomial (Specify primitive polynomial is not selected), the default generator polynomial is
rsgenpoly(N,K)
, whereN = 2M-1
.If you are not using the default primitive polynomial (Specify primitive polynomial is selected) and you specify the primitive polynomial as
poly
, the generator polynomial isrsgenpoly(N,K,poly)
.
Note
The degree of the generator polynomial is N − K, where N is the codeword length and K is the message word length.
Puncturing and Erasures
1
s and 0
s have
precisely opposite meanings for the puncture and erasure vectors.
In a puncture vector,
1
means that the data symbol is passed through the block unaltered.0
means that the data symbol is to be punctured, or removed, from the data stream.
In an erasure vector,
1
means that the data symbol is to be replaced with an erasure symbol.0
means that the data symbol is passed through the block unaltered.
These conventions apply to both the encoder and the decoder. For more information, see Shortening, Puncturing, and Erasures.
Supported Data Types
Port | Supported Data Types |
---|---|
In |
|
Out |
|
Pair Block
Algorithms
This object implements the algorithm, inputs, and outputs described in Algorithms for BCH and RS Errors-only Decoding.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced before R2006a
