Quantization

Quantization is a process that, in effect, digitizes an analog signal. The process maps input sample values within range partitions to different common values. Quantization mapping requires a partition and a codebook. Use the `quantiz` function to map an input signal to a scalar quantized signal.

Represent Partitions

A quantization partition defines several contiguous, nonoverlapping ranges of values within a set of real numbers. To specify a partition, list the distinct endpoints of the different ranges in a vector.

For example, suppose the partition separates the real number line into the four sets or intervals:

• {x: x ≤ 0}

• {x: 0 < x ≤ 1}

• {x: 1 < x ≤ 3}

• {x: 3 < x}

Then you can represent the partition as a three-element vector:

```partition = [0,1,3]; ```

The length of the partition vector is one less than the number of partition intervals.

Represent Codebooks

A codebook tells the quantizer which common value to assign to inputs that fall into the distinct intervals defined by the partition vector. Represent a codebook as a vector whose length is the same as the number of partition intervals. For example:

```codebook = [-1, 0.5, 2, 3]; ```

This vector is one possible codebook for the partition vector `[0,1,3]`.

Determine Quantization Interval for Each Input Sample

To determine quantization intervals, in this example, you examine the `index` and `quants` vectors returned by the `quantiz` function. The `index` vector indicates the quantization interval for each input sample as specified by the input partition vector and the `quants` vector maps the input samples to quantization values specified by the input codebook vector.

Quantize a set of data by using the `quantiz` function with the specified `partition` and examine the returned vector `index`. If you run `quantiz` without specifying a `codebook` input, the function assigns the `codebook` quantization values based on the `partition` values.

```data = [2 9 8]; partition = [3,4,5,6,7,8,9]; index = quantiz(data,partition)```
```index = 1×3 0 6 5 ```

The `index` vector that indicates the input data samples, `[2 9 8]`, lie within the intervals labeled 0, 6, and 5 because `partition` specifies that

• Interval 0 consists of real numbers less than or equal to 3.

• Interval 6 consists of real numbers greater than 8 but less than or equal to 9.

• Interval 5 consists of real numbers greater than 7 but less than or equal to 8.

Suppose you continue this example by defining a codebook vector as follows:

`codebook = [3,3,4,5,6,7,8,9];`

Then this formula relates the vector `index` to the quantized signal `quants`.

`quants = codebook(index+1)`
```quants = 1×3 3 8 7 ```

This formula for `quants` is exactly what the `quantiz` function uses if you input the `codebook` vector and return the `quants` vector. Examine the returned vector `quants` to see the `partition` vector intervals `[0 6 5]` map to the quantization values `[3 8 7]` as defined by the `codebook` vector.

```partition = [3,4,5,6,7,8,9]; codebook = [3,3,4,5,6,7,8,9]; [index,quants] = quantiz(data,partition,codebook)```
```index = 1×3 0 6 5 ```
```quants = 1×3 3 8 7 ```

Quantize Sampled Sine Wave

To illustrate the nature of scalar quantization, this example shows how to quantize a sine wave. Plot the original and quantized signals to contrast the x symbols that make up the sine curve with the dots that make up the quantized signal. The vertical coordinate of each dot is a value in the vector codebook.

Generate a sine wave sampled at times defined by `t`. Specify the `partition` input by defining the distinct endpoints of the different intervals as the element values of the vector. Specify the `codebook` input with an element value for each interval defined in the `partition` vector. The codebook vector must be one element longer than the partition vector.

```t = [0:.1:2*pi]; sig = sin(t); partition = [-1:.2:1]; codebook = [-1.2:.2:1];```

Perform quantization on the sampled sine wave.

`[index,quants] = quantiz(sig,partition,codebook);`

Plot the quantized sine wave and the sampled sine wave.

```plot(t,sig,'x',t,quants,'.') title('Quantization of Sine Wave') xlabel('Time') ylabel('Amplitude') legend('Original sampled sine wave','Quantized sine wave'); axis([-.2 7 -1.2 1.2])```

Optimize Quantization Parameters

Testing and selecting parameters for large signal sets with a fine quantization scheme can be tedious. One way to produce partition and codebook parameters easily is to optimize them according to a set of training data. The training data should be typical of the kinds of signals to be quantized.

This example uses the `lloyds` function to optimize the partition and codebook according to the Lloyd algorithm. The code optimizes the partition and codebook for one period of a sinusoidal signal, starting from a rough initial guess. Then the example runs the `quantiz` function twice to generate quantized data by using the initial `partition` and `codebook` input values and by using the optimized `partitionOpt` and `codebookOpt` input values. The example also compares the distortion for the initial and the optimized quantization.

Define variables for a sine wave signal and initial quantization parameters. Optimize the partition and codebook by using the `lloyds` function.

```t = 0:.1:2*pi; sig = sin(t); partition = -1:.2:1; codebook = -1.2:.2:1; [partitionOpt,codebookOpt] = lloyds(sig,codebook);```

Generate quantized signals by using the initial and the optimized partition and codebook vectors. The `quantiz` function automatically computes the mean square distortion and returns it as the third output argument. Compare mean square distortions for quantization with the initial and optimized input arguments to see how less distortion occurs when using the optimized quantized values.

```[index,quants,distor] = quantiz(sig,partition,codebook); [indexOpt,quantOpt,distorOpt] = ... quantiz(sig,partitionOpt,codebookOpt); [distor, distorOpt]```
```ans = 1×2 0.0148 0.0022 ```

Plot the sampled sine wave, the quantized sine wave, and the optimized quantized sine wave.

```plot(t,sig,'x',t,quants,'.',t,quantOpt,'s') title('Quantization of Sine Wave') xlabel('Time') ylabel('Amplitude') legend('Original sampled sine wave', ... 'Quantized sine wave', ... 'Optimized quantized sine wave'); axis([-.2 7 -1.2 1.2])```

Quantize and Compand an Exponential Signal

When transmitting signals with a high dynamic range, quantization using equal length intervals can result in signal distortion and a loss of precision. Companding applies a logarithmic computation to compress the signal before quantization on the transmit side and to expand the signal to restore it to full scale on the receive side. Companding avoids signal distortion without the need to specify many quantization levels. Compare distortion when using 6-bit quantization on an exponential signal with and without companding. Plot the original exponential signal, the quantized signal, and the expanded signal.

Create an exponential signal and calculate its maximum value.

```sig = exp(-4:0.1:4); V = max(sig);```

Quantize the signal by using equal-length intervals. Set partition and codebook values, assuming 6-bit quantization. Calculate the mean square distortion.

```partition = 0:2^6 - 1; codebook = 0:2^6; [~,qsig,distortion] = quantiz(sig,partition,codebook);```

Compress the signal by using the `compand` function configured to apply the mu-law method. Apply quantization and expand the quantized signal. Calculate the mean square distortion of the companded signal.

```mu = 255; % mu-law parameter csig_compressed = compand(sig,mu,V,'mu/compressor'); [~,quants] = quantiz(csig_compressed,partition,codebook); csig_expanded = compand(quants,mu,max(quants),'mu/expander'); distortion2 = sum((csig_expanded - sig).^2)/length(sig);```

Compare the mean square distortion for quantization versus combined companding and quantization. The distortion for the companded and quantized signal is an order of magnitude lower than the distortion of the quantized signal. Equal-length intervals are well suited to the logarithm of an exponential signal but not well suited to an exponential signal itself.

`[distortion, distortion2]`
```ans = 1×2 0.5348 0.0397 ```

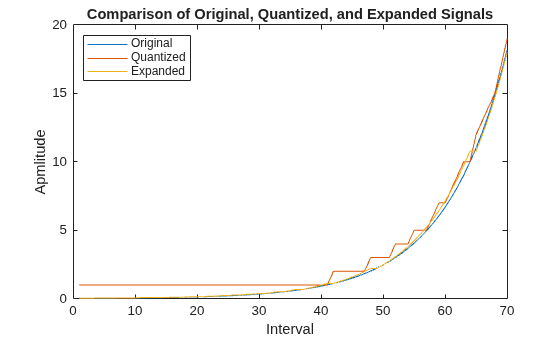

Plot the original exponential signal, the quantized signal, and the expanded signal. Zoom in on the axis to highlight the quantized signal error at lower signal levels.

```plot([sig' qsig' csig_expanded']); title('Comparison of Original, Quantized, and Expanded Signals'); xlabel('Interval'); ylabel('Apmlitude'); legend('Original','Quantized','Expanded','location','nw'); axis([0 70 0 20])```
