Integrate cfit object


int = integrate(fun,x,x0)


int = integrate(fun,x,x0) integrates the cfit object fun at the points specified by the vector x, starting from x0, and returns the result in int. int is a vector the same size as x. x0 is a scalar.


Create a baseline sinusoidal signal:

xdata = (0:.1:2*pi)';
y0 = sin(xdata);

Add response-dependent Gaussian noise to the signal:

noise = 2*y0.*randn(size(y0));
ydata = y0 + noise;

Fit the noisy data with a custom sinusoidal model:

f = fittype('a*sin(b*x)');
fit1 = fit(xdata,ydata,f,'StartPoint',[1 1]);

Find the integral of the fit at the predictors:

int = integrate(fit1,xdata,0);

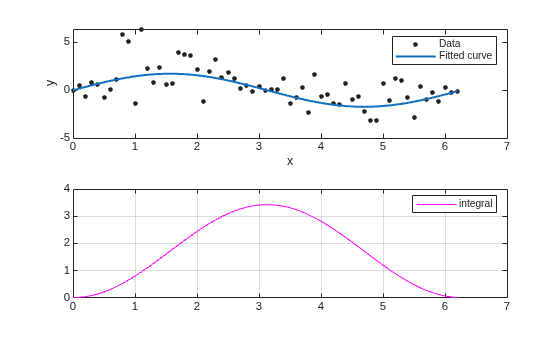

Plot the data, the fit, and the integral:

plot(fit1,xdata,ydata) % cfit plot method
plot(xdata,int,'m') % double plot method
grid on

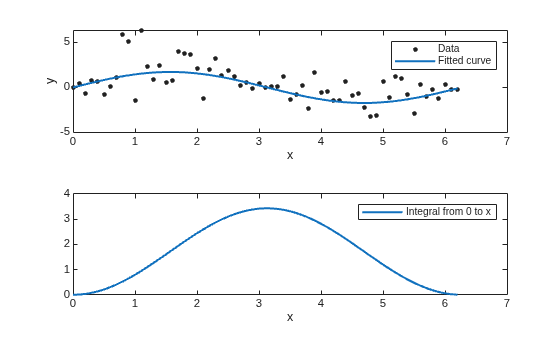

Note that integrals can also be computed and plotted directly with the cfit plot method, as follows:


The plot method, however, does not return data on the integral.

See Also

| |

Introduced before R2006a
