dlupdate
Update parameters using custom function
Syntax
Description
updates the learnable parameters of the netUpdated
= dlupdate(fun
,net
)dlnetwork
object
net
by evaluating the function fun
with each
learnable parameter as an input. fun
is a function handle to a function
that takes one parameter array as an input argument and returns an updated parameter array.
Examples
L1 Regularization with dlupdate
Perform L1 regularization on a structure of parameter gradients.
Create the sample input data.
dlX = dlarray(rand(100,100,3),'SSC');
Initialize the learnable parameters for the convolution operation.
params.Weights = dlarray(rand(10,10,3,50)); params.Bias = dlarray(rand(50,1));
Calculate the gradients for the convolution operation using the helper function convGradients
, defined at the end of this example.
gradients = dlfeval(@convGradients,dlX,params);
Define the regularization factor.
L1Factor = 0.001;
Create an anonymous function that regularizes the gradients. By using an anonymous function to pass a scalar constant to the function, you can avoid having to expand the constant value to the same size and structure as the parameter variable.
L1Regularizer = @(grad,param) grad + L1Factor.*sign(param);
Use dlupdate
to apply the regularization function to each of the gradients.
gradients = dlupdate(L1Regularizer,gradients,params);
The gradients in grads
are now regularized according to the function L1Regularizer
.
convGradients
Function
The convGradients
helper function takes the learnable parameters of the convolution operation and a mini-batch of input data dlX
, and returns the gradients with respect to the learnable parameters.
function gradients = convGradients(dlX,params) dlY = dlconv(dlX,params.Weights,params.Bias); dlY = sum(dlY,'all'); gradients = dlgradient(dlY,params); end
Use dlupdate
to Train Network Using Custom Update Function
Use dlupdate
to train a network using a custom update function that implements the stochastic gradient descent algorithm (without momentum).
Load Training Data
Load the digits training data.
[XTrain,TTrain] = digitTrain4DArrayData; classes = categories(TTrain); numClasses = numel(classes);
Define the Network
Define the network architecture and specify the average image value using the Mean
option in the image input layer.
layers = [ imageInputLayer([28 28 1],'Mean',mean(XTrain,4)) convolution2dLayer(5,20) reluLayer convolution2dLayer(3,20,'Padding',1) reluLayer convolution2dLayer(3,20,'Padding',1) reluLayer fullyConnectedLayer(numClasses) softmaxLayer];
Create a dlnetwork
object from the layer array.
net = dlnetwork(layers);
Define Model Loss Function
Create the helper function modelLoss
, listed at the end of this example. The function takes a dlnetwork
object and a mini-batch of input data with corresponding labels, and returns the loss and the gradients of the loss with respect to the learnable parameters.
Define Stochastic Gradient Descent Function
Create the helper function sgdFunction
, listed at the end of this example. The function takes the parameters and the gradients of the loss with respect to the parameters, and returns the updated parameters using the stochastic gradient descent algorithm, expressed as
where is the iteration number, is the learning rate, is the parameter vector, and is the loss function.
Specify Training Options
Specify the options to use during training.
miniBatchSize = 128; numEpochs = 30; numObservations = numel(TTrain); numIterationsPerEpoch = floor(numObservations./miniBatchSize);
Specify the learning rate.
learnRate = 0.01;
Train Network
Calculate the total number of iterations for the training progress monitor.
numIterations = numEpochs * numIterationsPerEpoch;
Initialize the TrainingProgressMonitor
object. Because the timer starts when you create the monitor object, make sure that you create the object close to the training loop.
monitor = trainingProgressMonitor(Metrics="Loss",Info="Epoch",XLabel="Iteration");

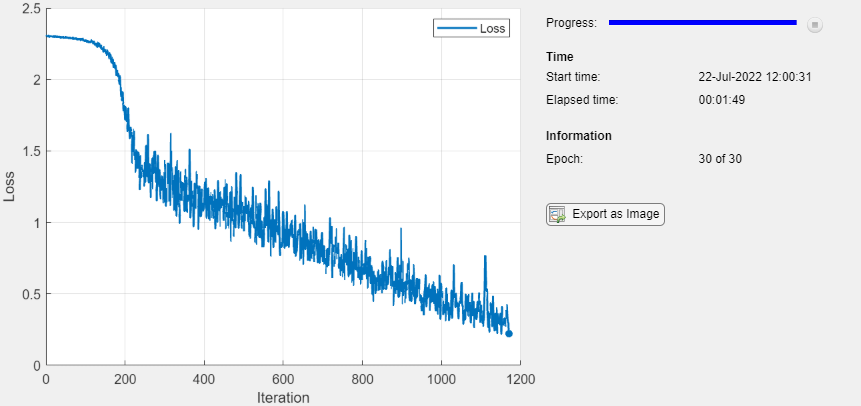

Train the model using a custom training loop. For each epoch, shuffle the data and loop over mini-batches of data. Update the network parameters by calling dlupdate
with the function sgdFunction
defined at the end of this example. At the end of each epoch, display the training progress.
Train on a GPU, if one is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).
iteration = 0; epoch = 0; while epoch < numEpochs && ~monitor.Stop epoch = epoch + 1; % Shuffle data. idx = randperm(numel(TTrain)); XTrain = XTrain(:,:,:,idx); TTrain = TTrain(idx); i = 0; while i < numIterationsPerEpoch && ~monitor.Stop i = i + 1; iteration = iteration + 1; % Read mini-batch of data and convert the labels to dummy % variables. idx = (i-1)*miniBatchSize+1:i*miniBatchSize; X = XTrain(:,:,:,idx); T = zeros(numClasses, miniBatchSize,"single"); for c = 1:numClasses T(c,TTrain(idx)==classes(c)) = 1; end % Convert mini-batch of data to dlarray. X = dlarray(single(X),"SSCB"); % If training on a GPU, then convert data to a gpuArray. if canUseGPU X = gpuArray(X); end % Evaluate the model loss and gradients using dlfeval and the % modelLoss function. [loss,gradients] = dlfeval(@modelLoss,net,X,T); % Update the network parameters using the SGD algorithm defined in % the sgdFunction helper function. updateFcn = @(net,gradients) sgdFunction(net,gradients,learnRate); net = dlupdate(updateFcn,net,gradients); % Update the training progress monitor. recordMetrics(monitor,iteration,Loss=loss); updateInfo(monitor,Epoch=epoch + " of " + numEpochs); monitor.Progress = 100 * iteration/numIterations; end end
Test Network
Test the classification accuracy of the model by comparing the predictions on a test set with the true labels.
[XTest,TTest] = digitTest4DArrayData;
Convert the data to a dlarray
with the dimension format "SSCB"
(spatial, spatial, channel, batch). For GPU prediction, also convert the data to a gpuArray
.
XTest = dlarray(XTest,"SSCB"); if canUseGPU XTest = gpuArray(XTest); end
To classify images using a dlnetwork
object, use the predict
function and find the classes with the highest scores.
YTest = predict(net,XTest); [~,idx] = max(extractdata(YTest),[],1); YTest = classes(idx);
Evaluate the classification accuracy.
accuracy = mean(YTest==TTest)
accuracy = 0.9040
Model Loss Function
The helper function modelLoss
takes a dlnetwork
object net
and a mini-batch of input data X
with corresponding labels T
, and returns the loss and the gradients of the loss with respect to the learnable parameters in net
. To compute the gradients automatically, use the dlgradient
function.
function [loss,gradients] = modelLoss(net,X,T) Y = forward(net,X); loss = crossentropy(Y,T); gradients = dlgradient(loss,net.Learnables); end
Stochastic Gradient Descent Function
The helper function sgdFunction
takes the learnable parameters parameters
, the gradients of the loss with respect to the learnable parameters, and the learning rate learnRate
, and returns the updated parameters using the stochastic gradient descent algorithm, expressed as
where is the iteration number, is the learning rate, is the parameter vector, and is the loss function.
function parameters = sgdFunction(parameters,gradients,learnRate) parameters = parameters - learnRate .* gradients; end
Input Arguments
net
— Network
dlnetwork
object
Network, specified as a dlnetwork
object.
The function updates the Learnables
property of the
dlnetwork
object. net.Learnables
is a table with
three variables:
Layer
— Layer name, specified as a string scalar.Parameter
— Parameter name, specified as a string scalar.Value
— Value of parameter, specified as a cell array containing adlarray
.
params
— Network learnable parameters
dlarray
| numeric array | cell array | structure | table
Network learnable parameters, specified as a dlarray
, a numeric
array, a cell array, a structure, or a table.
If you specify params
as a table, it must contain the following
three variables.
Layer
— Layer name, specified as a string scalar.Parameter
— Parameter name, specified as a string scalar.Value
— Value of parameter, specified as a cell array containing adlarray
.
You can specify params
as a container of learnable parameters
for your network using a cell array, structure, or table, or nested cell arrays or
structures. The learnable parameters inside the cell array, structure, or table must be
dlarray
or numeric values of data type double
or
single
.
The input argument A1,...,An
must be provided with exactly the
same data type, ordering, and fields (for structures) or variables (for tables) as
params
.
Data Types: single
| double
| struct
| table
| cell
A1,...,An
— Additional input arguments
dlarray
| numeric array | cell array | structure | table
Additional input arguments to fun
, specified as
dlarray
objects, numeric arrays, cell arrays, structures, or tables
with a Value
variable.
The exact form of A1,...,An
depends on the input network or
learnable parameters. The following table shows the required format for
A1,...,An
for possible inputs to
dlupdate
.
Input | Learnable Parameters | A1,...,An |
---|---|---|
net | Table net.Learnables containing
Layer , Parameter , and
Value variables. The Value variable
consists of cell arrays that contain each learnable parameter as a
dlarray . | Table with the same data type, variables, and ordering as
net.Learnables . A1,...,An must have a
Value variable consisting of cell arrays that contain the
additional input arguments for the function fun to apply to
each learnable parameter. |
params | dlarray | dlarray with the same data type and ordering as
params . |
Numeric array | Numeric array with the same data type and ordering as
params . | |
Cell array | Cell array with the same data types, structure, and ordering as
params . | |
Structure | Structure with the same data types, fields, and ordering as
params . | |
Table with Layer , Parameter , and
Value variables. The Value variable must
consist of cell arrays that contain each learnable parameter as a
dlarray . | Table with the same data types, variables and ordering as
params . A1,...,An must have a
Value variable consisting of cell arrays that contain the
additional input argument for the function fun to apply to
each learnable parameter. |
Output Arguments
netUpdated
— Updated network
dlnetwork
object
Network, returned as a dlnetwork
object.
The function updates the Learnables
property of the
dlnetwork
object.
params
— Updated network learnable parameters
dlarray
| numeric array | cell array | structure | table
Updated network learnable parameters, returned as a dlarray
, a
numeric array, a cell array, a structure, or a table with a Value
variable containing the updated learnable parameters of the network.
X1,...,Xm
— Additional output arguments
dlarray
| numeric array | cell array | structure | table
Additional output arguments from the function fun
, where
fun
is a function handle to a function that returns multiple
outputs, returned as dlarray
objects, numeric arrays, cell arrays,
structures, or tables with a Value
variable.
The exact form of X1,...,Xm
depends on the input network or
learnable parameters. The following table shows the returned format of
X1,...,Xm
for possible inputs to
dlupdate
.
Input | Learnable parameters | X1,...,Xm |
---|---|---|
net | Table net.Learnables containing
Layer , Parameter , and
Value variables. The Value variable
consists of cell arrays that contain each learnable parameter as a
dlarray . | Table with the same data type, variables, and ordering as
net.Learnables . X1,...,Xm has a
Value variable consisting of cell arrays that contain the
additional output arguments of the function fun applied to
each learnable parameter. |
params | dlarray | dlarray with the same data type and ordering as
params . |
Numeric array | Numeric array with the same data type and ordering as
params . | |
Cell array | Cell array with the same data types, structure, and ordering as
params . | |
Structure | Structure with the same data types, fields, and ordering as
params . | |
Table with Layer , Parameter , and
Value variables. The Value variable must
consist of cell arrays that contain each learnable parameter as a
dlarray . | Table with the same data types, variables. and ordering as
params . X1,...,Xm has a
Value variable consisting of cell arrays that contain the
additional output argument of the function fun applied to
each learnable parameter. |
Extended Capabilities
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The dlupdate
function
supports GPU array input with these usage notes and limitations:
When at least one of the following input arguments is a
gpuArray
or adlarray
with underlying data of typegpuArray
, this function runs on the GPU.params
A1,...,An
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Version History
Introduced in R2019b
See Also
dlnetwork
| dlarray
| adamupdate
| rmspropupdate
| sgdmupdate
| dlgradient
| dljacobian
| dldivergence
| dllaplacian
| dlfeval
Commande MATLAB
Vous avez cliqué sur un lien qui correspond à cette commande MATLAB :
Pour exécuter la commande, saisissez-la dans la fenêtre de commande de MATLAB. Les navigateurs web ne supportent pas les commandes MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
