Predict and Update Network State in Simulink

This example shows how to predict responses for a trained recurrent neural network in Simulink® by using the Stateful Predict block. This example uses a pretrained long short-term memory (LSTM) network.

Load Pretrained Network

Load JapaneseVowelsNet, a pretrained long short-term memory (LSTM) network trained on the Japanese Vowels data set as described in [1] and [2]. This network was trained on the sequences sorted by sequence length with a mini-batch size of 27.

load JapaneseVowelsNet

View the network architecture.


Load Test Data

Load the Japanese Vowels test data. XTest is a cell array containing 370 sequences of dimension 12 of varying length. TTest is a categorical vector of labels "1","2",..."9", which correspond to the nine speakers.

Create a timetable array simin with time-stamped rows and repeated copies of X.

load JapaneseVowelsTestData
X = XTest{94};
numTimeSteps = size(X,2);
simin = timetable(repmat(X,1,4)','TimeStep',seconds(0.2));

Simulink Model for Predicting Responses

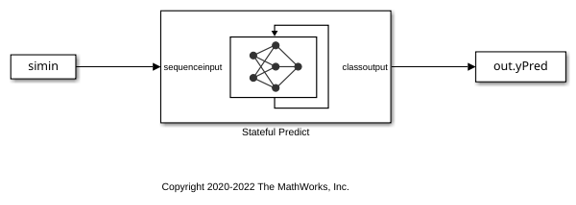

The Simulink model for predicting responses contains a Stateful Predict block to predict the scores and From Workspace block to load the input data sequence over the time steps.

To reset the state of recurrent neural network to its initial state during simulation, place the Stateful Predict block inside a Resettable Subsystem and use the Reset control signal as trigger.


Configure Model for Simulation

Set the model configuration parameters for the Stateful Predict block.

set_param('StatefulPredictExample/Stateful Predict','NetworkFilePath','JapaneseVowelsNet.mat');
set_param('StatefulPredictExample', 'SimulationMode', 'Normal');

Run the Simulation

To compute responses for the JapaneseVowelsNet network, run the simulation. The prediction scores are saved in the MATLAB® workspace.

out = sim('StatefulPredictExample');

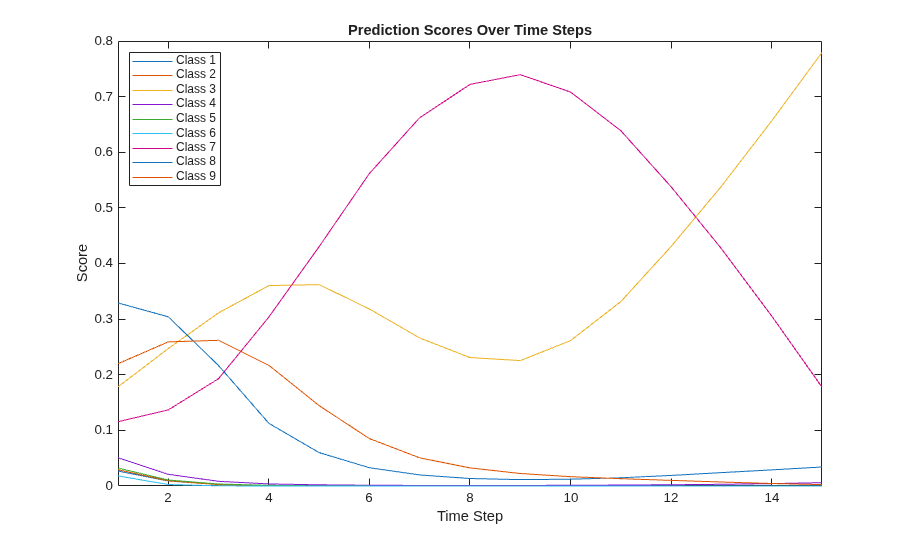

Plot the prediction scores. The plot shows how the prediction scores change between time steps.

scores = squeeze(out.yPred.Data(:,:,1:numTimeSteps));

classNames = string(net.Layers(end).Classes);
lines = plot(scores');
xlim([1 numTimeSteps])
legend("Class " + classNames,'Location','northwest')
xlabel("Time Step")
title("Prediction Scores Over Time Steps")

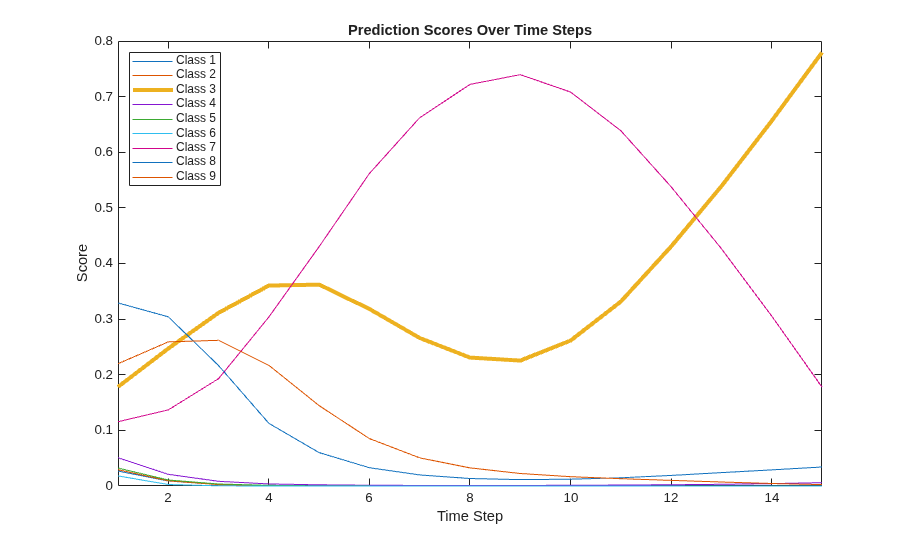

Highlight the prediction scores over time steps for the correct class.

trueLabel = TTest(94);
lines(trueLabel).LineWidth = 3;

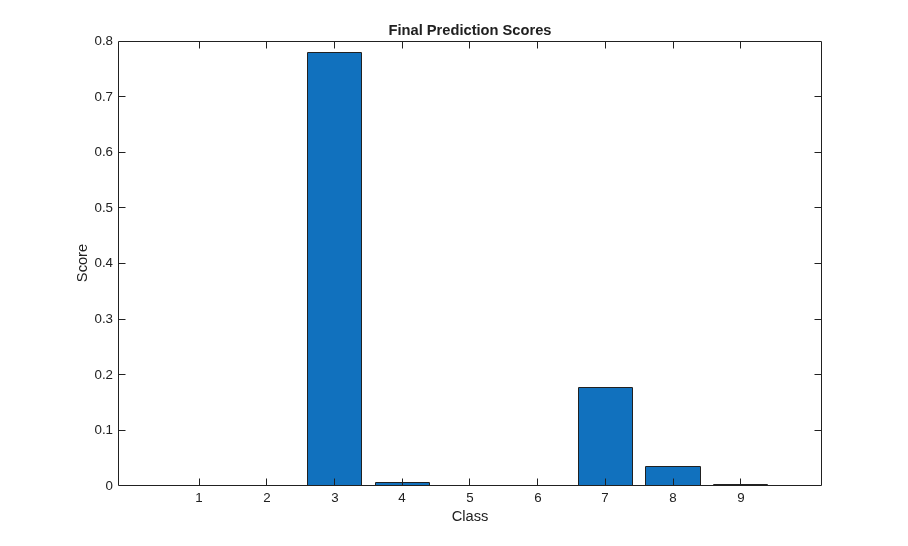

Display the final time step prediction in a bar chart.

title("Final Prediction Scores")


[1] M. Kudo, J. Toyama, and M. Shimbo. "Multidimensional Curve Classification Using Passing-Through Regions." Pattern Recognition Letters. Vol. 20, No. 11–13, pages 1103–1111.

[2] UCI Machine Learning Repository: Japanese Vowels Dataset.
