Visualize Activations of LSTM Network

This example shows how to investigate and visualize the features learned by LSTM networks by extracting the activations.

Load pretrained network. JapaneseVowelsNet is a pretrained LSTM network trained on the Japanese Vowels dataset as described in [1] and [2]. It was trained on the sequences sorted by sequence length with a mini-batch size of 27.

load JapaneseVowelsNet

View the network architecture.

net.Layers
ans =
  5x1 Layer array with layers:

     1   'sequenceinput'   Sequence Input          Sequence input with 12 dimensions
     2   'lstm'            LSTM                    LSTM with 100 hidden units
     3   'fc'              Fully Connected         9 fully connected layer
     4   'softmax'         Softmax                 softmax
     5   'classoutput'     Classification Output   crossentropyex with '1' and 8 other classes

Load the test data.

[XTest,YTest] = japaneseVowelsTestData;

Visualize the first time series in a plot. Each line corresponds to a feature.

X = XTest{1};

figure
plot(XTest{1}')
xlabel("Time Step")
title("Test Observation 1")
numFeatures = size(XTest{1},1);
legend("Feature " + string(1:numFeatures),'Location','northeastoutside')

Figure contains an axes. The axes with title Test Observation 1 contains 12 objects of type line. These objects represent Feature 1, Feature 2, Feature 3, Feature 4, Feature 5, Feature 6, Feature 7, Feature 8, Feature 9, Feature 10, Feature 11, Feature 12.

For each time step of the sequences, get the activations output by the LSTM layer (layer 2) for that time step and update the network state.

sequenceLength = size(X,2);
idxLayer = 2;
outputSize = net.Layers(idxLayer).NumHiddenUnits;

for i = 1:sequenceLength
    features(:,i) = activations(net,X(:,i),idxLayer);
    [net, YPred(i)] = classifyAndUpdateState(net,X(:,i));
end

Visualize the first 10 hidden units using a heatmap.

figure
heatmap(features(1:10,:));
xlabel("Time Step")
ylabel("Hidden Unit")
title("LSTM Activations")

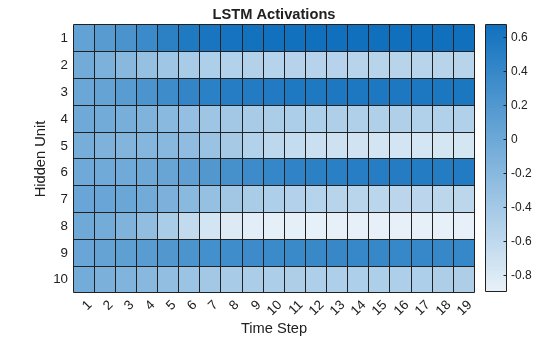

Figure contains an object of type heatmap. The chart of type heatmap has title LSTM Activations.

The heatmap shows how strongly each hidden unit activates and highlights how the activations change over time.
