plot

R2026b

Plot scenario descriptor

Since R2026a

Syntax

plot(descriptor)

scenarioDescriptorPlotObj = plot(descriptor)

Description

Add-On Required: This feature requires the Automated Driving Toolbox Test Suite for Euro NCAP Protocols add-on.

plot(descriptor) plots the first frame of the scenario simulation from the input scenario descriptor object descriptor.

scenarioDescriptorPlotObj = plot(descriptor) returns a ScenarioDescriptorPlot object, scenarioDescriptorPlotObj, that contains the data to plot and the simulate scenario from the input scenario descriptor object descriptor.

Examples

Plot and Play Scenario from Scenario Descriptor Object

Load a driving scenario into the workspace.

load("scenarioWithSingleActor.mat")

Create a scenario descriptor from the loaded driving scenario.

scenarioDescriptor = getScenarioDescriptor(sc);

Plot the first frame of the scenario simulation from the scenario descriptor object.

plot(scenarioDescriptor)

Create a scenario descriptor plot object from the scenario descriptor object.

scenarioDescriptorPlotObj = plot(scenarioDescriptor)

scenarioDescriptorPlotObj =
  ScenarioDescriptorPlot with properties:

       SimulationTime: 0
    MaxSimulationTime: 0.9300

       NumDescriptors: 1
        FigureHandles: [1×1 Figure]

            Waypoints: "StartEnd"
             CropType: "None"
               XLimit: []
               YLimit: []
               ZLimit: []
                Title: "Figure"
        SubPlotTitles: "Scenario"
             GridSize: []

Configure the scenario descriptor plot object to change the title.

configure(scenarioDescriptorPlotObj,Title="Straight Road")

Play the entire scenario simulation, instead of displaying only the first frame of the scenario.

play(scenarioDescriptorPlotObj)

Close the scenario descriptor plot.

close(scenarioDescriptorPlotObj)

Plot Multiple Scenario Descriptors

Load a MAT file containing two scenario descriptors.

load("scenarioDescriptors")

Plot the first frames of the scenario simulations for both loaded scenario descriptors in a single figure.

scenarioDescriptorPlotObj = plot(scenarioDescriptors)

scenarioDescriptorPlotObj =
  ScenarioDescriptorPlot with properties:

       SimulationTime: [2×1 double]
    MaxSimulationTime: [2×1 double]

       NumDescriptors: 2
        FigureHandles: [1×1 Figure]

            Waypoints: "StartEnd"
             CropType: "None"
               XLimit: []
               YLimit: []
               ZLimit: []
                Title: "Figure"
        SubPlotTitles: ["Scenario #1"    "Scenario #2"]
             GridSize: []

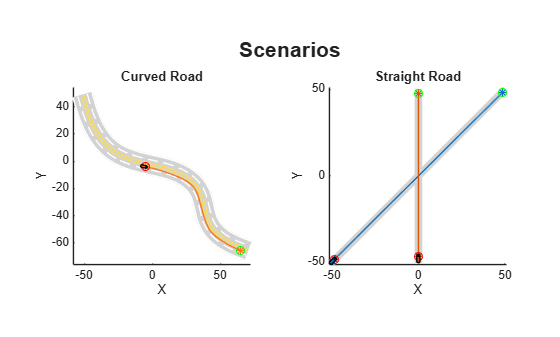

Configure the scenario descriptor plot object to change the title and subplot titles.

configure(scenarioDescriptorPlotObj,Title="Scenarios",SubPlotTitles=["Curved Road" "Straight Road"])

Play the entirety of both scenario simulations, instead of displaying only the first frame of each.

play(scenarioDescriptorPlotObj)

Close the scenario descriptor plot.

close(scenarioDescriptorPlotObj)

Input Arguments

descriptor — Scenario descriptor

ScenarioDescriptor object | N-element array of ScenarioDescriptor objects

Scenario descriptor, specified as a ScenarioDescriptor object or an N-element array of ScenarioDescriptor objects. The ScenarioDescriptor object stores scene, actor, and vehicle information extracted from a seed scenario, and uses this information to generate scenario variants. You can use these scenario variants to perform safety assessments for various automated driving applications.

Output Arguments

scenarioDescriptorPlotObj — Scenario descriptor plot data

ScenarioDescriptorPlot object

Scenario descriptor plot data, returned as a ScenarioDescriptorPlot object.

Limitations

• The plot, play, and seek functions display the lane markings at a junction if that junction has been created without using the roadGroup function.

• The plot, play, and seek functions do not support Composite Lane Marking and lanes created using the compositeLaneSpec object.

Version History

Introduced in R2026a
