variationProperties
Description
The variationProperties
object stores scenario property
variations, such as actor, collision, scene, and Euro NCAP® test bench properties, to use to create scenario variants.
Creation
Description
creates an
empty variations
= variationPropertiesvariationProperties
object, variations
.
Note
This object requires the Automated Driving Toolbox™ Test Suite for Euro NCAP® Protocols support package. You can install Automated Driving Toolbox Test Suite for Euro NCAP Protocols from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.
Properties
ActorVariationProperties
— Actor variation properties
structure
Actor variation properties, specified as a structure. The structure contains these fields:
ActorID
— ID of the actor, specified as a positive integer.Speed
— Speed of the actor, specified as a scalar or an M-element row vector. M is the number of waypoints. Units are in meters per second.Dimension
— Dimensions of the actor, specified as a structure with fieldsLength
,Width
,Height
,RearOverhang
, andFrontOverhang
. Units are in meters.Waypoints
— Waypoints of the actor, specified as an M-by-3 matrix. M is the number of waypoints. Each row represents the actor position in the form [x y z]. Units are in meters.Yaw
— Yaw angle of the actor, specified as an M-element column vector. M is the number of waypoints. Units are in radians.By default, the fields of the
ActorVariationProperties
structure are empty arrays,[]
.
Note
To set the fields of the ActorVariationProperties
structure,
you must use the varyActorProperties
object function.
CollisionVariationProperties
— Collision variation properties
[]
(default) | structure
Collision variation properties, specified as a structure. The structure contains these fields:
Actor1ID
— ID of the first colliding actor in the pair, specified as a positive integer.Actor2ID
— ID of the second colliding actor in the pair, specified as a positive integer.Actor1CollisionFraction
— Point of collision relative to the collision side of the first actor, specified as a scalar in the range [0, 1]. For more information, see Collision Fraction.Actor1CollisionSide
— Side of the first actor at which the collision occurs, specified as"Front"
,"Left"
,"Back"
, or"Right"
.Actor2CollisionFraction
— Point of collision relative to the collision side of the second actor, specified as a scalar in the range [0, 1]. For more information, see Collision Fraction.Actor2CollisionSide
— Side of the second actor at which the collision occurs, specified as"Front"
,"Left"
,"Back"
, or"Right"
.VariationType
— Parameter to change to generate variant with collision, specified as"WaitTime"
,"EntryTime"
, or"Waypoints"
.
Note
To set the fields of the CollisionVariationProperties
structure, you must use the varyCollisionProperties
object function.
SceneVariationProperties
— Scene variation properties
structure
Scene variation properties, specified as a structure. The structure contains these fields:
RoadID
— ID of the road, specified as a positive integer.LaneID
— ID of the lane, specified as a positive integer.Width
— Width of the road or lane, specified as a positive scalar. Units are in meters.LaneType
— Type of the lane, specified as"driving"
or"parking"
.Marking
— Lane markings of the road, specified as"solid"
,"dashed"
,"doublesolid"
, or"doubledashed"
.MarkingColor
— Marking color of the lane or road boundaries, specified as"white"
or"yellow"
.MarkingWidth
— Marking width of the road or lane boundaries, specified as a positive scalar or a two-element numeric row vector. Units are in meters.
By default, the fields of the SceneVariationProperties
structure are empty arrays, []
.
Note
To set the fields of the SceneVariationProperties
structure,
you must use the varySceneProperties
object function.
TestVariationProperties
— Euro NCAP test bench variation properties
structure
Euro NCAP test bench variation properties, specified as a structure. The structure contains these fields:
StartTestTime
— Time to start safety assessment test. Units are in seconds.EndTestTime
— Time to end safety assessment test. Units are in seconds.HandoverTime
— Time to hand-over of control for Euro NCAP safety assessment testing, specified as a scalar. Units are in seconds.
By default, the fields of the TestVariationProperties
structure
are empty arrays, []
.
Note
To set the fields of the TestVariationProperties
structure,
you must use the varyTestProperties
object function.
Object Functions
varyActorProperties | Add variations to actor properties |
varyCollisionProperties | Add variations to collision properties |
varySceneProperties | Add variations to scene properties |
varyTestProperties | Add variations to Euro NCAP test bench properties |
Examples
Add Variations to Speed and Waypoint Actor Properties
Create an empty variationProperties
object.
variation = variationProperties;
Display empty actor properties.
disp(variation.ActorVariationProperties)
ActorID: [] Speed: [] Dimension: [] Waypoints: [] Yaw: []
Add speed and waypoint variations to the actor with an ActorID
of 1
.
waypoints = [0 0 0; 10 0 0]; varyActorProperties(variation,1,Speed=10,Waypoints=waypoints);
Display the actor property variations.
disp(variation.ActorVariationProperties)
ActorID: 1 Speed: 10 Dimension: [] Waypoints: [2×3 double] Yaw: []
Vary Scene Properties to Generate Scenario Variants
Load a driving scenario into the workspace.
load("scenarioWithSingleActor.mat")
Create a scenario descriptor from the input seed scenario.
seedScenarioDescriptor = getScenarioDescriptor(scenario,Simulator="DrivingScenario");
Create a variationProperties
object.
variation1 = variationProperties;
Add scene property variations to a road by specifying the road ID, width of the road, and marking color of the road boundaries.
roadID = 1;
varySceneProperties(variation1,roadID,Width=30,MarkingColor="yellow")
Using the seed scenario descriptor and the scene variation, generate a scenario variant descriptor.
scenarioVariantDescriptor1 = generateVariants(seedScenarioDescriptor,variation1);
Generate a variant scenario, as a drivingScenario
object, from the scenario variant descriptor object.
scenarioVariant1 = getScenario(scenarioVariantDescriptor1,Simulator="DrivingScenario");
Create another variationProperties
object.
variation2 = variationProperties;
Add scene property variations to a lane by specifying the road ID, lane ID, width of the lane, lane marking, and marking color of the lane boundaries.
roadID = 1; laneID = 2; varySceneProperties(variation2,roadID,laneID,Width=10,Marking="solid",MarkingColor="white")
Using the seed scenario descriptor and the scene variation, generate another scenario variant descriptor.
scenarioVariantDescriptor2 = generateVariants(seedScenarioDescriptor,variation2);
Generate another variant scenario, as a drivingScenario
object, from the scenario variant descriptor object.
scenarioVariant2 = getScenario(scenarioVariantDescriptor2,Simulator="DrivingScenario");
Create a custom figure window to plot the seed scenario and the scenario variants.
figScene = figure; set(figScene,Position=[200 200 900 300]) hCarViewPanel1 = uipanel(figScene,Position=[0 0 0.33 1],Title="Input Seed Scenario"); hCarPlot1 = axes(hCarViewPanel1); hCarViewPanel2 = uipanel(figScene,Position=[0.34 0 0.33 1],Title='Generated Scenario Variant1'); hCarPlot2 = axes(hCarViewPanel2); hCarViewPanel3 = uipanel(figScene,Position=[0.68 0 0.33 1],Title='Generated Scenario Variant2'); hCarPlot3 = axes(hCarViewPanel3);

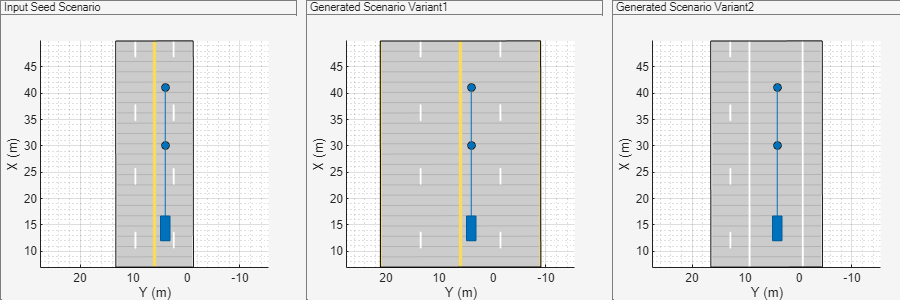

Plot the seed scenario and its variants. Observe the scene variation in the generated scenario variants.
plot(scenario,Waypoints="on",Parent=hCarPlot1) plot(scenarioVariant1,Waypoints="on",Parent=hCarPlot2) plot(scenarioVariant2,Waypoints="on",Parent=hCarPlot3)
Tips
To apply actor property variations and collision variations to your seed scenario, use the
generateVariants
function.
Version History
Introduced in R2023aR2024b: variationProperties
object contains new properties
The variationProperties
object contains these additional properties:
SceneVariationProperties
TestVariationProperties
