Peak Finder

Determine whether each value of input signal is local minimum or maximum

•

Libraries:
DSP System Toolbox / Signal Operations

Description

The Peak Finder block counts the number of local extrema in each column of a real-valued input signal. The block outputs the number of local extrema at the Cnt port. You can also configure the block to output the extrema indices, the extrema values, and a binary value indicating if the extrema are maxima or minima. To qualify as an extremum, a point has to be larger (or smaller) than both its neighboring points, so the block does not consider end points when counting extrema.

Examples

Effect of Overflow Mode on Peak Finder Output

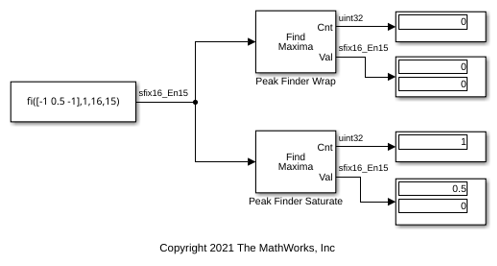

Effect of saturate on integer overflow parameter on the Peak Finder output.

• Open Script

Ports

Input

Port_1 — Data input

column vector of at least three rows | matrix with at least three rows

The Peak Finder blocks accepts real-valued vector or matrix inputs with at least three rows.

Example: [9 6 10 3 5 5 0 12; 9 6 1 13 4 1 0 12]'

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fixed point

Output

Cnt — Number of peak values

scalar | row vector

Number of peak values the block detects in the input signal, returned as a scalar or a row vector of length equal to the number of channels in the data input.

Example: [4 3]

Data Types: uint32

Idx — Indices of the peak values

column vector | matrix

Indices of the peak values in the input signal, returned as a column vector or matrix. The size of the peak indices output is the same as that of the input. All nonzero elements represent peak indices.

If you set Index base to Zero, the block outputs zero-based extrema indices. If you set Index base to One, the block outputs one-based extrema indices.

Example: [1 2 3 6 0 0 0 0 0 0; 2 3 6 0 0 0 0 0 0 0]'

Dependencies

To enable this output port, select the Output peak indices parameter.

Data Types: uint32

Val — Peak values

column vector | matrix

Peak values in the input signal, returned as a column vector or matrix.

Example: [6 10 3 0 0 0 0 0 0 0; 1 13 0 0 0 0 0 0 0 0]'

Dependencies

To enable this output port, select the Output peak values parameter.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fixed point

Pol — Peak value polarity

column vector | matrix

Peak value polarity in input signal, returned as a column vector or a matrix of logical 1s and 0s. If the signal value is a maximum, the block outputs 1 at this port. If the signal value is a minimum, the block outputs 0 at this port.

Example: [0 1 0 0 0 0 0 0 0 0; 0 1 0 0 0 0 0 0 0 0]'

Dependencies

To enable this port, select either Output peak indices or Output peak values, and set the Peak type(s) parameter to Maxima and Minima.

Data Types: Boolean

Parameters

Peak type(s) — Type of peaks to identify

Maxima and Minima (default) | Maxima | Minima

Specify the type of peaks to identify as one of these:

• Maxima –– If you select Ignore peaks within threshold of neighboring values, the block identifies the current value as a maximum if (current – previous) > threshold and (current – next) > threshold. Specify threshold in the Threshold parameter. If you do not select Ignore peaks within threshold of neighboring values, the block identifies a maxima if the current value is larger than both its neighboring points.

• Minima –– If you select Ignore peaks within threshold of neighboring values, the block identifies the current value as a minimum if (current – previous) < –threshold and (current – next) < –threshold. If you do not select Ignore peaks within threshold of neighboring values, the block identifies a minima if the current value is smaller than both its neighboring points.

• Maxima and Minima –– The block identifies the maxima and the minima points.

Index base — Index base

Zero (default) | One

Specify the base of the extrema indices as either:

• Zero –– The first index starts with 0. For example, consider an input vector [−1.5, 0.5, 0]. The peak value of this vector is 0.5 and the index of this peak value is 1.

• One –– In this setting, the first index starts with 1. The index of the peak value in [−1.5, 0.5, 0] is 2.

Output peak indices — Enable output of peak indices

off (default) | on

Select this check box if you want the block to output the extrema indices at the Idx port.

Output peak values — Enable output of peak values

off (default) | on

Select this parameter if you want the block to output the extrema values at the Val port.

Maximum number of peaks to find — Maximum number of peak values to identify

10 (default) | integer greater than or equal to 1

Enter the number of extrema to look for in each input signal as an integer greater than or equal to 1. The block stops searching the input signal for extrema once the maximum number of extrema has been found.

Ignore peaks within threshold of neighboring values — Ignore peaks below a threshold

off (default) | on

Select this parameter if you want to eliminate the detection of peaks whose amplitudes are within a specified threshold of neighboring values. This feature allows the block to ignore noise by focusing on values above the specified threshold.

When you clear this parameter, the block identifies the current value as a peak if the current value is larger (or smaller) than both its neighboring points. When you select this parameter, the block identifies the current value as a maximum if (current – previous) > threshold and (current – next) > threshold. The block identifies the current value as a minimum if (current – previous) < –threshold and (current – next) < –threshold.

Threshold — Threshold below which peaks are ignored

0 (default) | positive real scalar | vector

Specify the threshold below which peaks are ignored as a real scalar greater than or equal to 0 or a vector with all elements greater than or equal to 0. The length of the vector must be equal to the number of channels.

This property identifies the current input value to be a maximum if (current – previous) > threshold and (current – next) > threshold. The current value is a minimum if (current – previous) < –threshold and (current – next) < –threshold.

Dependencies

To enable this parameter, select the Ignore peaks within threshold of neighboring values parameter.

Saturate on integer overflow — Method of overflow action

off (default) | on

When you select this parameter, the block saturates the result of its fixed-point operations. When you clear this parameter, the block wraps the result of its fixed-point operations. For details on saturate and wrap, see overflow mode for fixed-point operations.

Dependencies

To enable this parameter, select the Ignore peaks within threshold of neighboring values parameter.

Block Characteristics

Data Types	double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no
