# filter

Filter disturbances through regression model with ARIMA errors

## Description

uses additional
options specified by one or more name-value arguments. For example, `Y`

= filter(`Mdl`

,`Z`

,`Name=Value`

)`filter(Mdl,Z,X=Pred,Z0=PresampleErrors)`

specifies the predictor data `Pred`

for the model regression component
and the observed errors in the presample period `PresampleErrors`

to
initialize the model.

## Examples

### Compute Impulse Response Function

Compute the impulse response function of an innovation shock to the regression model with ARMA(2,1) errors.

The impulse response assesses the dynamic behavior of a system to a one-time shock. Typically, the magnitude of the shock is 1. Alternatively, it might be more meaningful to examine an impulse response of an innovation shock with a magnitude of one standard deviation.

In regression models with ARIMA errors,

The impulse response function is invariant to the behavior of the predictors and the intercept.

The impulse response of the model is defined as the impulse response of the unconditional disturbances as governed by the ARIMA error component.

Specify the following regression model with ARMA(2,1) errors:

$$\begin{array}{c}{y}_{t}={u}_{t}\\ {u}_{t}=0.5{u}_{t-1}-0.8{u}_{t-2}+{\epsilon}_{t}-0.5{\epsilon}_{t-1},\end{array}$$

where $${\epsilon}_{t}$$ is Gaussian with variance 0.1.

```
Mdl = regARIMA(Intercept=0,AR={0.5 -0.8},MA=-0.5, ...
Variance=0.1);
```

When you construct an impulse response function for a regression model with ARIMA errors, you must set `Intercept`

to 0.

Simulate the first 30 responses of the impulse response function by generating a error series with a one-time impulse with magnitude equal to one standard deviation, and then filter it. Also, use `impulse`

to compute the impulse response function.

```
z = [sqrt(Mdl.Variance); zeros(29,1)]; % Shock of 1 std
yFltr = filter(Mdl,z);
yImpls = impulse(Mdl,30);
```

When you construct an impulse response function for a regression model with ARIMA errors containing a regression component, do not specify the predictor matrix, `X`

, in `filter`

.

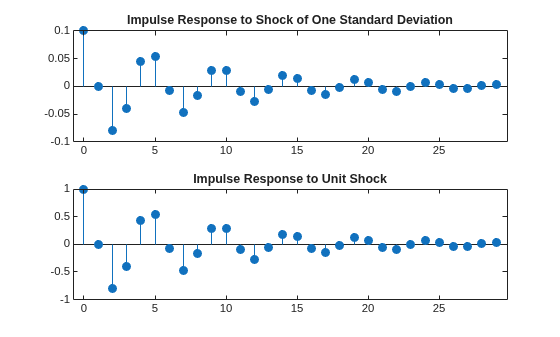

Plot the impulse response functions.

figure subplot(2,1,1) stem((0:numel(yFltr)-1)',yFltr,"filled") title("Impulse Response to Shock of One Standard Deviation") subplot(2,1,2) stem((0:numel(yImpls)-1)',yImpls,"filled") title("Impulse Response to Unit Shock")

The impulse response function given a shock of one standard deviation is a scaled version of the impulse response returned by `impulse`

.

### Simulate a Step Response

Simulate the step response function of a regression model with ARMA(2,1) errors.

The step response assesses the dynamic behavior of a system to a persistent shock. Typically, the magnitude of the shock is 1. Alternatively, it might be more meaningful to examine a step response of a persistent innovation shock with a magnitude of one standard deviation. This example plots the step response of a persistent innovations shock in a model without an intercept and predictor matrix for regression. However, note that `filter`

is flexible in that it accepts a persistent innovations or predictor shock that you construct using any magnitude, then filters it through the model.

Specify the following regression model with ARMA(2,1) errors:

$$\begin{array}{c}{y}_{t}={u}_{t}\\ {u}_{t}=0.5{u}_{t-1}-0.8{u}_{t-2}+{\epsilon}_{t}-0.5{\epsilon}_{t-1},\end{array}$$

where $${\epsilon}_{t}$$ is Gaussian with variance 0.1.

```
Mdl = regARIMA(Intercept=0,AR={0.5 -0.8},MA=-0.5, ...
Variance=0.1);
```

Simulate the first 30 responses to a sequence of unit errors by generating an error series of one standard deviation, and then filtering it.

z = sqrt(Mdl.Variance)*ones(30,1); % Persistent shock of one std y = filter(Mdl,z); y = y/y(1); % Normalize relative to y(1)

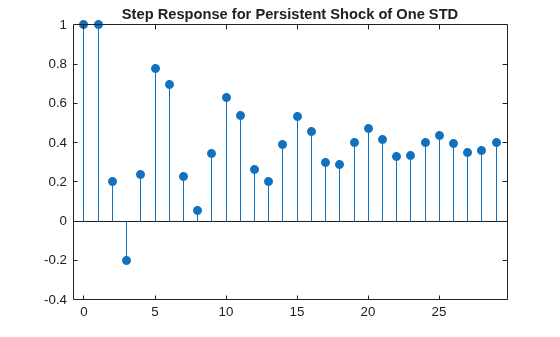

Plot the step response function.

figure stem((0:numel(y)-1)',y,"filled") title("Step Response for Persistent Shock of One STD")

The step response settles around 0.4.

### Filter Error Paths Through Regression Model with SARIMA Errors

Simulate 100 independent paths of responses by filtering 100 independent paths of errors ${\mathit{z}}_{\mathit{t}}$, where innovations ${\epsilon}_{\mathit{t}}=\sigma \text{\hspace{0.17em}}{\mathit{z}}_{\mathit{t}}$, through the following regression model with SARIMA${\left(2,1,1\right)}_{12}$ errors.

$$\begin{array}{c}{y}_{t}=X\left[\begin{array}{c}1.5\\ -2\end{array}\right]+{u}_{t}\\ \left(1-0.2L-0.1{L}^{2}\right)\left(1-L\right)\left(1-0.01{L}^{12}\right)\left(1-{L}^{12}\right){u}_{t}=\left(1+0.5L\right)\left(1+0.02{L}^{12}\right){\epsilon}_{t},\end{array}$$

where $${\epsilon}_{t}$$ follows a $\mathit{t}$-distribution with 15 degrees of freedom.

Distribution = struct("Name","t","DoF",15); Mdl = regARIMA(AR={0.2 0.1},SAR=0.01,SARLags=12, ... MA=0.5,SMA=0.02,SMALags=12,D=1,Seasonality=12, ... Beta=[1.5; -2],Intercept=0,Variance=0.1, ... Distribution=Distribution)

Mdl = regARIMA with properties: Description: "Regression with ARIMA(2,1,1) Error Model Seasonally Integrated with Seasonal AR(12) and MA(12) (t Distribution)" Distribution: Name = "t", DoF = 15 Intercept: 0 Beta: [1.5 -2] P: 27 D: 1 Q: 13 AR: {0.2 0.1} at lags [1 2] SAR: {0.01} at lag [12] MA: {0.5} at lag [1] SMA: {0.02} at lag [12] Seasonality: 12 Variance: 0.1

Simulate a length 25 path of data from the standard bivariate normal distribution for the predictor variables in the regression component.

```
rng(1) % For reproducibility
numObs = 25;
Pred = randn(numObs,2);
```

Simulate 100 independent paths of errors of length 25 from the standard normal distribution.

numPaths = 100; Z = randn(numObs,numPaths);

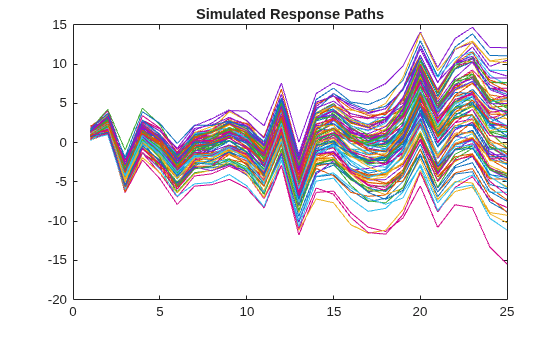

Simulate 100 independent response paths from model by filtering the paths of errors through the model. Supply the predictor data for the regression component.

```
Y = filter(Mdl,Z,X=Pred);
figure
plot(Y)
title('{\bf Simulated Response Paths}')
```

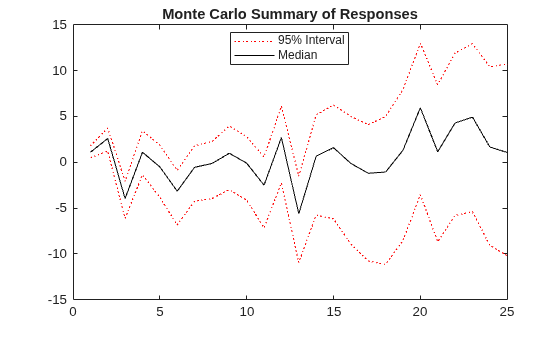

Plot the 2.5th, 50th (median), and 97.5th percentiles of the simulated response paths.

lower = prctile(Y,2.5,2); middle = median(Y,2); upper = prctile(Y,97.5,2); figure plot(1:25,lower,"r:",1:25,middle,"k", ... 1:25,upper,"r:") title("Monte Carlo Summary of Responses") legend("95% Interval","Median",Location="best")

### Compare Responses from `filter`

and `simulate`

Simulate responses using `filter`

and `simulate`

. Then compare the simulated responses.

Both `filter`

and `simulate`

filter a series of errors to produce output responses `y`

, innovations `e`

, and unconditional disturbances `u`

. The difference is that `simulate`

generates errors from `Mdl.Distribution`

, whereas `filter`

accepts a random array of errors that you generate from any distribution.

Specify the following regression model with ARMA(2,1) errors:

$$\begin{array}{l}\begin{array}{c}{y}_{t}={X}_{t}\left[\begin{array}{c}0.1\\ -0.2\end{array}\right]+{u}_{t}\\ {u}_{t}=0.5{u}_{t-1}-0.8{u}_{t-2}+{\epsilon}_{t}-0.5{\epsilon}_{t-1},\end{array}\end{array}$$

where $${\epsilon}_{t}$$ is Gaussian with variance 0.1.

```
Mdl = regARIMA(Intercept=0,AR={0.5 -0.8},MA=-0.5, ...
Beta=[0.1 -0.2],Variance=0.1);
```

`Mdl`

is a fully specified `regARIMA`

object.

Simulate a one path of bivariate standard normal data for the predictor variables. Then, simulate a path of responses and innovations from the regression model with ARMA(2,1) errors. Supply the simulated predictor data to `simulate`

for the regression component.

rng(1) % For reproducibility Pred = randn(100,2); % Simulate predictor data [ySim,eSim] = simulate(Mdl,100,X=Pred);

`ySim`

and `eSIM`

are 100-by-1 vectors of simulated responses and innovations, respectively, from the model `Mdl`

.

Produce model errors by standardizing the simulated innovations. Filter the simulated errors through the model. Supply the predictor data to `filter`

.

z1 = eSim./sqrt(Mdl.Variance); yFlt1 = filter(Mdl,z1,X=Pred);

`yFlt1`

is a 100-by-1 vector of reponses resulting from filtering the simulated errors `z1`

through the model `Mdl`

.

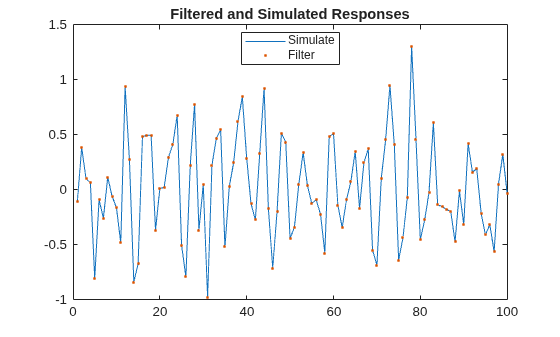

Confirm that the simulated responses from `simulate`

and `filter`

are identical by plotting the two series.

figure h1 = plot(ySim); hold on h2 = plot(yFlt1,"."); title("Filtered and Simulated Responses") legend([h1 h2],["Simulate" "Filter"],Location="best") hold off

Alternatively, simulate responses by randomly generating your own errors and passing them into `filter`

.

rng(1) Pred = randn(100,2); z2 = randn(100,1); yFlt2 = filter(Mdl,z2,X=Pred); figure h1 = plot(ySim); hold on h2 = plot(yFlt2,"."); title("Filtered and Simulated Responses") legend([h1 h2],["Simulate" "Filter"],Location="best") hold off

This plot is the same as the previous plot, confirming that both simulation methods are equivalent.

`filter`

multiplies the error, `Z`

, by `sqrt(Mdl.Variance)`

before filtering `Z`

through the model. Therefore, if you want to specify a different distribution, set `Mdl.Variance`

to 1, and then generate your own errors using, for example, `random("unif",a,b)`

for the Uniform(*a*, *b*) distribution.

## Input Arguments

`Z`

— Error series *z*_{t} that drives the
innovations process *ε*_{t}

numeric column vector | numeric matrix

_{t}

_{t}

Error series *z _{t}* that drives the
innovations process

*ε*, specified as a length

_{t}`numObs`

numeric column vector or a
`numObs`

-by-`numPaths`

numeric matrix.
`numObs`

is the length of the time series (sample size).
`numPaths`

is the number of separate, independent disturbance paths.
The innovations process *ε*=

_{t}*σz*, where

_{t}*σ*=

`sqrt(Mdl.Variance)`

, the standard deviation of the
innovations.Each row corresponds to a period. The last row contains the latest set of errors.

Each column corresponds to a separate, independent path of errors.
`filter`

assumes that errors across any row occur
simultaneously.

`Z`

is the continuation of the presample errors
`Z0`

.

**Data Types: **`double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`filter(Mdl,Z,X=Pred,Z0=PresampleErrors)`

specifies the
predictor data `Pred`

for the model regression component and the observed
errors in the presample period `PresampleErrors`

to initialize the
model.

`X`

— Predictor data

numeric matrix

Predictor data for the model regression component, specified as a
`numObs`

-by-`numPreds`

numeric matrix.

`numPreds`

is the number of predictor variables
(`numel(Mdl.Beta)`

).

Each row of `X`

corresponds to the corresponding period in
`Z`

(period for which `filter`

filters
errors; the period after the presample). The following conditions apply:

The last row contains the latest predictor data.

If

`X`

has more then`numObs`

rows,`filter`

uses only the latest`numObs`

rows.`filter`

does not apply the regression component during the presample period.

Columns of `X`

are separate predictor variables.

`filter`

applies `X`

to each filtered
path; that is, `X`

represents one path of observed predictors.

By default, `filter`

excludes the regression component,
regardless of its presence in `Mdl`

.

**Data Types: **`double`

`Z0`

— Presample error data

numeric column vector | numeric matrix

Presample error data providing initial values for the input error series
`Z`

, specified as a numeric column vector or a numeric
matrix.

Each row of `Z0`

corresponds to a period in the presample. The
following conditions apply:

The last row contains the latest presample errors.

To initialize the compound moving average (MA) component of the ARIMA error model,

`Z0`

must have at least`Mdl.Q`

rows.If

`Z0`

has more rows than is required to initialize the model,`filter`

uses only the latest required rows.

Columns of `Z0`

are separate, independent presample paths. The
following conditions apply:

If

`Z0`

is a column vector,`filter`

applies it to each path.If

`Z0`

is a matrix,`filter`

applies`Z0(:,`

to initialize path)`j`

.`j`

`Z0`

must have at least`numPaths`

columns;`filter`

uses only the first`numPaths`

columns of`U0`

.

By default, `filter`

sets the necessary presample errors
to 0.

**Data Types: **`double`

`U0`

— Presample unconditional disturbances

numeric column vector | numeric matrix

Presample unconditional disturbances that provide initial values for the ARIMA error model, specified as a column vector or matrix.

Each row of `U0`

corresponds to a period in the presample. The
following conditions apply:

The last row contains the latest presample unconditional disturbances.

To initialize the compound autoregressive (AR) component of the ARIMA error model,

`U0`

must have at least`Mdl.P`

rows.If

`U0`

has more rows than is required to initialize the model,`filter`

uses only the latest required rows.

Columns of `U0`

are separate, independent presample paths. The
following conditions apply:

If

`U0`

is a column vector,`filter`

applies it to each path.If

`U0`

is a matrix,`filter`

applies`U0(:,`

to initialize path)`j`

.`j`

`U0`

must have at least`numPaths`

columns;`filter`

uses only the first`numPaths`

columns of`U0`

.

By default, `filter`

sets the necessary presample
unconditional disturbances to 0.

**Data Types: **`double`

**Note**

`NaN`

s in input data indicate missing values.`filter`

uses*listwise deletion*to delete all sampled times (rows) in the input data containing at least one missing value. Specifically,`filter`

performs these steps:Synchronize, or merge, the presample data sets

`Z0`

and`U0`

to create the set`Presample`

, in other words,`Presample`

=`[Z0 U0]`

.Synchronize the filter data

`Z`

and`X`

to create the set`Data`

, in other words,`Data`

=`[Z X]`

.Remove all rows from

`Presample`

and`Data`

containing at least one`NaN`

.

Listwise deletion applied to the filter data can reduce the sample size and create irregular time series.

`filter`

merges data sets that have a different number of rows according to the latest observation, and then pads the shorter series with enough default values to form proper matrices.`filter`

assumes that you synchronize the data sets so that the latest observations occur simultaneously. The software also assumes that you synchronize the presample series similarly.All predictor variables (columns) in

`X`

are associated with each error series in`Z`

to produce`numPaths`

response series`Y`

.

## Output Arguments

`Y`

— Simulated response paths *y*_{t}

numeric column vector | numeric matrix

_{t}

Simulated response paths *y _{t}*, returned as a
length

`numObs`

column vector or a
`numObs`

-by-`numPaths`

numeric matrix.For each

= 1, …,
`t`

`numObs`

, the simulated responses at time
`t`

`Y(`

correspond to the filtered errors
at time * t*,:)

`t`

`Z(``t`

,:)

and response path
`j`

`Y(:,``j`

)

corresponds to the filtered
disturbance path `j`

`Z(:,``j`

)

when `Z`

is a
matrix.`Y`

represents the continuation of presample inputs.

`E`

— Simulated, mean-zero innovations paths *ε*_{t}

numeric column vector | numeric matrix

_{t}

Simulated, mean-zero innovations paths *ε _{t}*
of the model unconditional disturbances

*u*, returned as a length

_{t}`numObs`

column vector or a
`numObs`

-by-`numPaths`

numeric matrix.The dimensions of `Y`

and `E`

correspond.

Columns of `E`

are scaled disturbance paths (innovations) such
that, for a particular path, *ε _{t}* =

*σ*

*z*.

_{t}`U`

— Simulated unconditional disturbance paths *u*_{t}

numeric column vector | numeric matrix

_{t}

Simulated unconditional disturbance paths
*u _{t}*, returned as a length

`numObs`

column vector or a
`numObs`

-by-`numPaths`

numeric matrix.The dimensions of `Y`

and `U`

correspond.

## Alternative Functionality

`filter`

generalizes `simulate`

. Both filter a series of errors to produce responses
`Y`

, innovations `E`

, and unconditional disturbances
`U`

. However, `simulate`

autogenerates
a series of mean zero, unit variance, independent and identically distributed (iid) errors
according to the distribution in `Mdl`

. In contrast,
`filter`

requires that you specify your own errors, which can come
from any distribution.

## References

[1] Box, G. E. P., G. M. Jenkins, and G. C. Reinsel. *Time Series Analysis: Forecasting and Control*. 3rd ed. Englewood Cliffs, NJ: Prentice Hall, 1994.

[2] Davidson, R., and J. G. MacKinnon. *Econometric Theory and Methods*. Oxford, UK: Oxford University Press, 2004.

[3] Enders, Walter. *Applied Econometric Time Series*. Hoboken, NJ: John Wiley & Sons, Inc., 1995.

[4] Hamilton, James D. *Time Series Analysis*. Princeton, NJ: Princeton University Press, 1994.

[5] Pankratz, A. *Forecasting with Dynamic Regression Models.* John Wiley & Sons, Inc., 1991.

[6] Tsay, R. S. *Analysis of Financial Time Series*. 2nd ed. Hoboken, NJ: John Wiley & Sons, Inc., 2005.

## Version History

**Introduced in R2013b**

## See Also

### Objects

### Functions

## Ouvrir l'exemple

Vous possédez une version modifiée de cet exemple. Souhaitez-vous ouvrir cet exemple avec vos modifications ?

## Commande MATLAB

Vous avez cliqué sur un lien qui correspond à cette commande MATLAB :

Pour exécuter la commande, saisissez-la dans la fenêtre de commande de MATLAB. Les navigateurs web ne supportent pas les commandes MATLAB.

# Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
