saturationOverflows
Get results where saturation occurred
Description
returns all results in results
= saturationOverflows(converter
,RunName
)RunName
, for the model specified by the DataTypeWorkflow.Converter
object, converter
, that
saturated during simulation.
Examples
Get Saturation Results for Specified Run
This example shows how to get saturation results for the specified run of a DataTypeWorkflow.Converter
object.

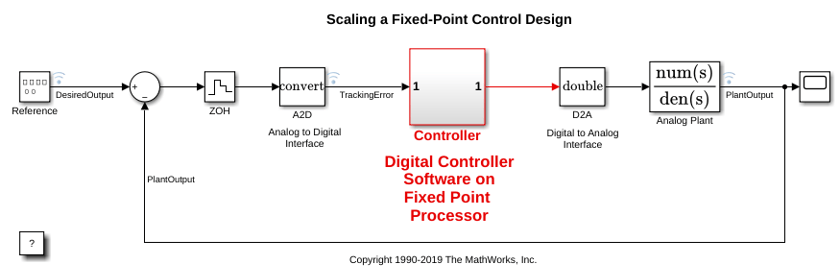

Open the fxpdemo_feedback
model.
open_system('fxpdemo_feedback');
Create a DataTypeWorkflow.Converter
object for the Controller subsystem.
converter = DataTypeWorkflow.Converter('fxpdemo_feedback/Controller');
Simulate the model and store the results in a run titled InitialRun
.
converter.CurrentRunName = 'InitialRun';
simulateSystem(converter);
Determine if there were any overflows in the run.
saturations = saturationOverflows(converter,'InitialRun')
saturations = Result with properties: ResultName: 'fxpdemo_feedback/Controller/Up Cast' SpecifiedDataType: 'fixdt(1,16,14)' CompiledDataType: 'fixdt(1,16,14)' ProposedDataType: '' Wraps: [] Saturations: 23 WholeNumber: 0 SimMin: -2 SimMax: 1.9999 DerivedMin: [] DerivedMax: [] RunName: 'InitialRun' Comments: {'An output data type cannot be specified on this result. The output type is the same as the input type.'} DesignMin: [] DesignMax: []
A saturation occurs in the Up Cast block of the Controller subsystem during the simulation. There are no wrapping overflows.
Input Arguments
converter
— Converter object
DataTypeWorkflow.Converter
object
Converter object for the system under design, specified as a
DataTypeWorkflow.Converter
object.
RunName
— Name of run
character vector
Name of run to look for saturations in, specified as a character vector.
Example:
saturations = saturationOverflows(converter,'Run 1')
Data Types: char
Output Arguments
results
— Results that saturated
DataTypeWorkflow.Result
object
Results that saturated, returned as a DataTypeWorkflow.Result
object.
Version History
Introduced in R2014b
