Implement HDL Optimized SVD in Feedforward Fashion Without Backpressure
This example shows how to implement a hardware-efficient singular value decomposition (SVD) using the Square Jacobi SVD HDL Optimized block in a feedforward fashion without backpressure.
The Square Jacobi SVD HDL Optimized block uses the AMBA AXI handshake protocol for both input and output. To use the block without backpressure control, feed a constant Boolean
'true' to the readyIn port, then configure the upstream input rate according to the block latency specified in Square Jacobi SVD HDL Optimized.
This model uses a Rate Transition block between the data source and the Square Jacobi SVD HDL Optimized block to emulate an upstream block with a lower sample rate. The sample time of the Square Jacobi SVD HDL Optimized block is normalized to 1, and the sample time of data source is the block latency + 1.
Define Simulation Parameters
Specify the dimension of the sample matrices, the number of input sample matrices, and the number of iterations of the Jacobi algorithm.
n = 8; numSamples = 3; nIterations = 6;
Use the specified simulation parameters to generate the input
rng('default'); A = randn(n,n,numSamples);
The Square Jacobi SVD HDL Optimzied block supports both real and complex inputs. Set the complexity of the input in the block mask accordingly.
% A = complex(randn(n,n,numSamples),randn(n,n,numSamples));
Select Fixed-Point Data Types
Define the desired word length.
wordLength = 32;
Use the upper bound on the singular values to define fixed-point types that will never overflow. First, use the
fixed.singularValueUpperBound function to determine the upper bound on the singular values.
svdUpperBound = fixed.singularValueUpperBound(n,n,max(abs(A(:))));
Define the integer length based on the value of the upper bound, with one additional bit for the sign, another additional bit for intermediate CORDIC growth, and one more bit for intermediate growth to compute the Jacobi rotations.
additionalBitGrowth = 3; integerLength = ceil(log2(svdUpperBound)) + additionalBitGrowth;
Compute the fraction length based on the integer length and the desired word length.
fractionLength = wordLength - integerLength;
Define the signed fixed-point data type to be
'ScaledDouble'. You can also define the type to be
dataType = 'Fixed'; T.A = fi(,1,wordLength,fractionLength,'DataType',dataType); disp(T.A)
 DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 32 FractionLength: 24
Cast the matrix
A to the signed fixed-point type.
A = cast(A,'like',T.A);
Set Input Rate
The latency of the Square Jacobi SVD HDL Optimized block depends on the size
n, complexity, and word length
wl of the input matrix
A, and the number of iterations
nIterations of the two-sided Jacobi algorithm.
If signal complexity is real, the block delay is
If signal complexity is complex, the block delay is
Ais double precision, then
Ais single precision, then
The Square Jacobi SVD HDL Optimized block will be ready in the next clock after a successful solution output. Therefore, the input rate transition ratio should be at least 1 + block latency.
For real input, compute the rate transition ratio.
rateTransitionRatio = 1+(wordLength*2+31)*(n-1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3;
For complex input, compute the rate transition ratio.
% rateTransitionRatio = 1+(wordLength*6+48)*(n-1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3;
Configure Model Workspace and Run Simulation

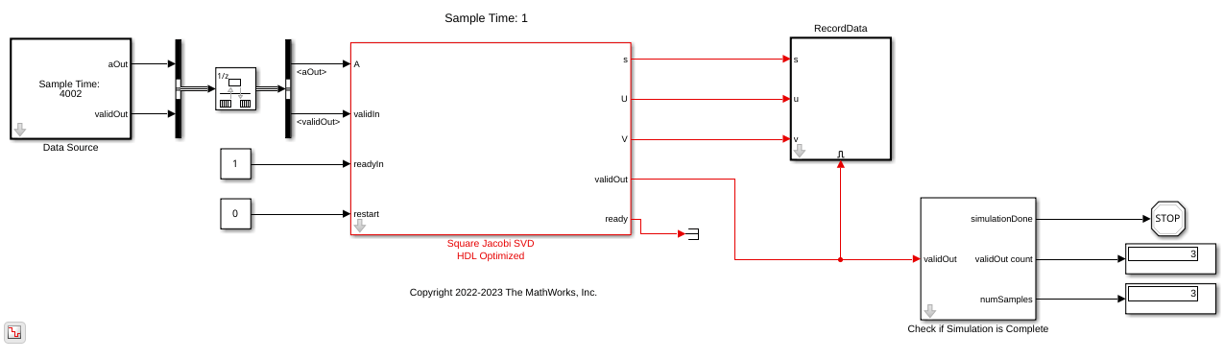

model = 'SquareJacobiSVDFeedforwardModel'; open_system(model); setModelWorkspace(model,'A',A,'n',n,... 'nIterations',nIterations,'numSamples',numSamples,... 'rateTransitionRatio',rateTransitionRatio); out = sim(model);
Verify Output Solutions
Verify the output solutions. In these steps, "identical" means within roundoff error.
U*diag(s)*V'is identical to
relErrUSVrepresents the relative error between
Verify that the singular values
sare identical to the floating point SVD solution.
relativeErrorSrepresents the relative error between
sand the singular values calculated by MATLAB®
Vare unitary matrices.
relativeErrorUUrepresents the relative error between
U'*Uand the identity matrix.
relativeErrorVVrepresents the relative error between
V'*Vand the identity matrix.
for i = 1:numSamples disp(['Sample #',num2str(i),':']); a = A(:,:,i); U = out.U(:,:,i); V = out.V(:,:,i); s = out.s(:,:,i); % Verify U*diag(s)*V' if norm(double(a)) > 1 relativeErrorUSV = norm(double(U*diag(s)*V')-double(a))/norm(double(a)); else relativeErrorUSV = norm(double(U*diag(s)*V')-double(a)); end relativeErrorUSV %#ok % Verify s s_expected = svd(double(a)); normS = norm(s_expected); relativeErrorS = norm(double(s) - s_expected); if normS > 1 relativeErrorS = relativeErrorS/normS; end relativeErrorS %#ok % Verify U'*U U = double(U); UU = U'*U; relativeErrorUU = norm(UU - eye(size(UU))) %#ok % Verify V'*V V = double(V); VV = V'*V; relativeErrorVV = norm(VV - eye(size(VV))) %#ok disp('---------------'); end
Sample #1: relativeErrorUSV = 2.9950e-06 relativeErrorS = 1.3585e-06 relativeErrorUU = 3.3832e-07 relativeErrorVV = 4.0781e-07 --------------- Sample #2: relativeErrorUSV = 3.9727e-06 relativeErrorS = 1.4026e-06 relativeErrorUU = 3.4657e-07 relativeErrorVV = 3.0048e-07 --------------- Sample #3: relativeErrorUSV = 3.7357e-06 relativeErrorS = 1.7264e-06 relativeErrorUU = 2.7650e-07 relativeErrorVV = 3.0022e-07 ---------------
