Optimization solution


A GlobalOptimSolution object contains information on a local minimum, including location, objective function value, and start point or points that lead to the minimum.

GlobalSearch and MultiStart generate a vector of GlobalOptimSolution objects. The vector is ordered by objective function value, from lowest (best) to highest (worst). GlobalSearch and MultiStart combine solutions that coincide with previously found solutions to within tolerances. For GlobalSearch details, see Update Solution Set in When fmincon Runs. For MultiStart details, see Create GlobalOptimSolution Object.


When you execute run and request the solutions output, GlobalSearch and MultiStart create GlobalOptimSolution objects as output.


expand all

Exit condition of the local solver, returned as an integer. Generally, a positive Exitflag corresponds to a local optimum, and a zero or negative Exitflag corresponds to an unsuccessful search for a local minimum.

For the exact meaning of each Exitflag, see the exitflag description in the appropriate local solver function reference page:

Data Types: double

Objective function value, returned as a real scalar. For the lsqnonlin and lsqcurvefit solvers, Fval is the sum of squares of the residual.

Data Types: double

Output structure returned by the local solver. For details, see the output description in the appropriate local solver function reference page:

Data Types: struct

Local solution, returned as an array with the same dimensions as problem.x0.

Data Types: double

Start points that lead to current solution, returned as a cell array. Control the distance between points considered as distinct by setting the FunctionTolerance and XTolerance properties of the global solver.

Data Types: cell


collapse all

Use MultiStart to create a vector of GlobalOptimSolution objects for a problem with multiple local minima.

rng default % For reproducibility
ms = MultiStart;
sixmin = @(x)(4*x(1)^2 - 2.1*x(1)^4 + x(1)^6/3 ...
    + x(1)*x(2) - 4*x(2)^2 + 4*x(2)^4);
problem = createOptimProblem('fmincon','x0',[-1,2],...
[xmin,fmin,flag,outpt,allmins] = run(ms,problem,30);
MultiStart completed the runs from all start points.

All 30 local solver runs converged with a positive local solver exit flag.

allmins is a vector of GlobalOptimSolution objects.

  1x6 GlobalOptimSolution array with properties:

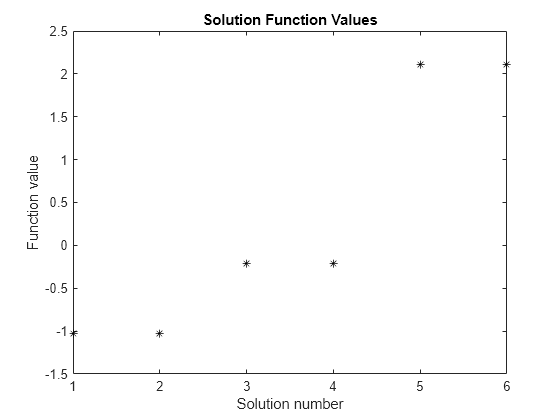

Plot the objective function values at the returned solutions.

xlabel('Solution number')
ylabel('Function value')
title('Solution Function Values')

Figure contains an axes. The axes with title Solution Function Values contains an object of type line.

To examine the initial points that lead to the various solutions, see Visualize the Basins of Attraction.

Introduced in R2010a
