hypermnf

Maximum noise fraction transform of hyperspectral data

Since R2020a

collapse all in page

    Syntax

    outputDataCube = hypermnf(inputData,numComponents)
    [outputDataCube,coeff] = hypermnf(inputData,numComponents)
    [___] = hypermnf(inputData,numComponents,'MeanCentered',flag)

    Description

    outputDataCube = hypermnf(inputData,numComponents) computes specified number of principal component bands numComponents by using the maximum noise fraction (MNF) transform. To achieve spectral dimensionality reduction, the specified number of principal components must be less than the number of spectral bands in the input data cube.

    The components derived using MNF transform are also called non-adjusted principal components and the MNF transform arranges principal components (PC) in the decreasing order of PC image quality.

    example

    [outputDataCube,coeff] = hypermnf(inputData,numComponents) also returns the MNF coefficients estimated across the spectral bands of the input data cube.

    example

    [___] = hypermnf(inputData,numComponents,'MeanCentered',flag) computes MNF transform from mean centered spectral bands. The option for mean centering each spectral band in the input data cube is specified by flag.

    Note

    This function requires the Hyperspectral Imaging Library for Image Processing Toolbox™. You can install the Hyperspectral Imaging Library for Image Processing Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

    The Hyperspectral Imaging Library for Image Processing Toolbox requires desktop MATLAB®, as MATLAB Online™ or MATLAB Mobile™ do not support the library.

    Examples

    collapse all

    This example uses:

    Open Live Script

    Read a hyperspectral data into the workspace.

    hcube = hypercube('indian_pines.dat');

    Compute 10 principal component bands of hyperspectral data and the associated transformation coefficients.

    [outputDataCube,coeff] = hypermnf(hcube,10);

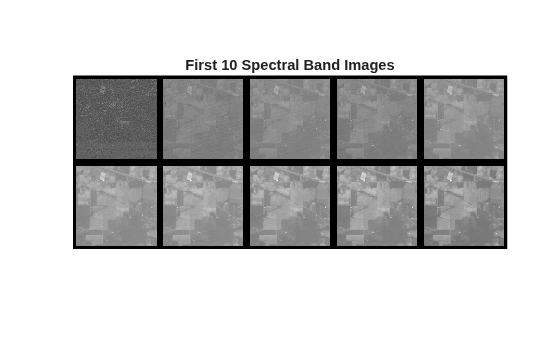

    Display the first 10 spectral bands in input data cube.

    figure
montage(hcube.DataCube(:,:,1:10),'BorderSize',[10 10],'Size',[2 5],'DisplayRange',[]);
title('First 10 Spectral Band Images')

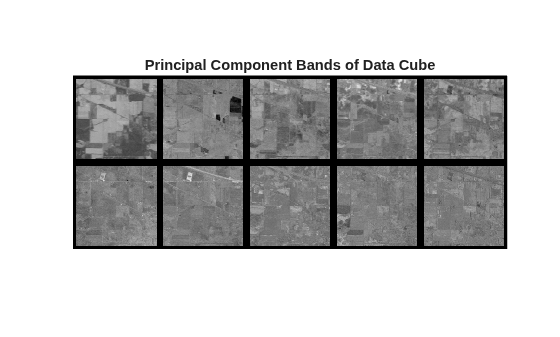

    For the purpose of visualization, rescale the principal component values to lie in the range [0, 1]. Display all the principal component bands extracted from the data cube. The principal component bands are arranged in the order of decreasing image quality (or increasing noise level).

    figure
rescalePC = rescale(outputDataCube,0,1);
montage(rescalePC,'BorderSize',[10 10],'Size',[2 5]);
title('Principal Component Bands of Data Cube')

    Input Arguments

    collapse all

    Input hyperspectral data, specified as a 3-D numeric array that represent the hyperspectral data cube of size M-by-N-by-C or hypercube object. If the input is a hypercube object, the function reads the data cube stored in the DataCube property of the object. The hyperspectral data cube must be real and non-sparse.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Number of principal component bands to extract from the data cube, specified as a positive integer scalar. The value must be less than or equal to the number of spectral bands in the input data cube.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Indicator for mean centering spectral bands, specified as one of these values:

    • true or 1 — Mean center each spectral bands in the input data cube by subtracting the mean of spectral bands before computing the MNF transform.

    • false or 0 — Compute principal component bands without mean centering the spectral bands in the input data cube.

    Data Types: logical

    Output Arguments

    collapse all

    MNF transformed data cube, returned as a 3-D numeric array of size M-by-N-by-numComponents. The spatial dimension of the output data cube is same as that of the input data cube. The spectral dimension of the output data cube is equal to the number of principal components specified at the input.

    If the input data type is double, the output data type is also double. Otherwise, the output data type is single.

    Data Types: single | double

    MNF coefficients, returned as a matrix of size C-by-numComponents. C is the number of spectral bands in the input data cube. Each column of coeff contains the coefficients for one principal component. The columns are in the order of principal component image quality.

    If the input data type is double, the data type of coeff is also double. Otherwise, the data type is single.

    Data Types: single | double

    References

    [1] Green, A.A., M. Berman, P. Switzer, and M.D. Craig. “A Transformation for Ordering Multispectral Data in Terms of Image Quality with Implications for Noise Removal.” IEEE Transactions on Geoscience and Remote Sensing 26, no. 1 (January 1988): 65–74. https://doi.org/10.1109/36.3001.

    Version History

    Introduced in R2020a
