imbinarize

Binarize 2-D grayscale image or 3-D volume by thresholding

Syntax

BW = imbinarize(I)
BW = imbinarize(I,method)
BW = imbinarize(I,T)
BW = imbinarize(I,'adaptive',Name,Value)

Description

example

BW = imbinarize(I) creates a binary image from 2-D or 3-D grayscale image I by replacing all values above a globally determined threshold with 1s and setting all other values to 0s. By default, imbinarize uses Otsu's method, which chooses the threshold value to minimize the intraclass variance of the thresholded black and white pixels [1]. imbinarize uses a 256-bin image histogram to compute Otsu's threshold. To use a different histogram, see otsuthresh. BW is the output binary image.

example

BW = imbinarize(I,method) creates a binary image from image I using the thresholding method specified by method: 'global' or 'adaptive'.

BW = imbinarize(I,T) creates a binary image from image I using the threshold value T. T can be a global image threshold, specified as a scalar luminance value, or a locally adaptive threshold, specified as a matrix of luminance values.

example

BW = imbinarize(I,'adaptive',Name,Value) creates a binary image from image I using name-value pairs to control aspects of adaptive thresholding.

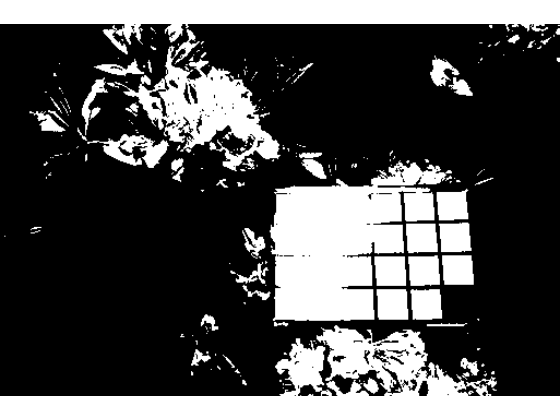

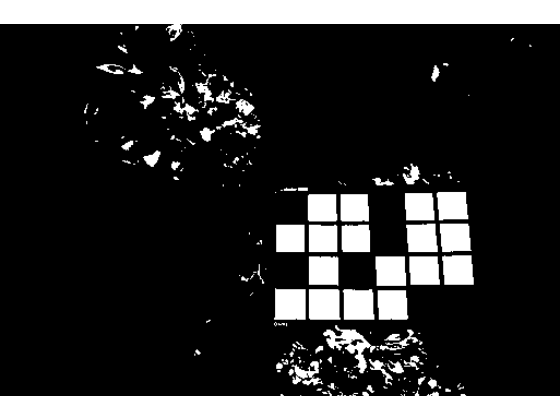

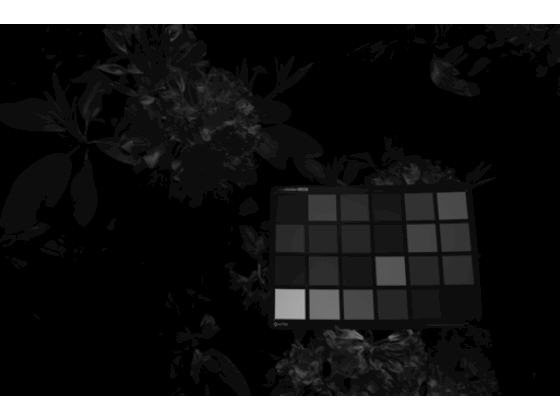

Examples

collapse all

Read grayscale image into the workspace.

I = imread('coins.png');

Convert the image into a binary image.

BW = imbinarize(I);

Display the original image next to the binary version.

figure

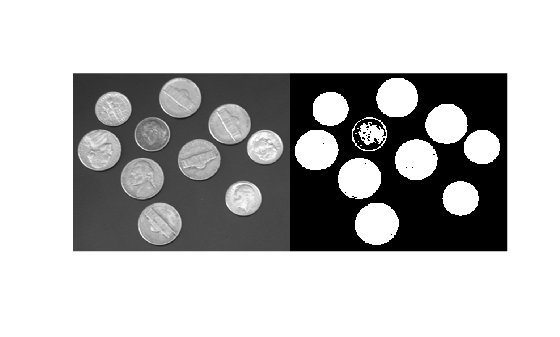

imshowpair(I,BW,'montage')

Read grayscale image into workspace.

I = imread('rice.png');

Convert grayscale image to binary image.

BW = imbinarize(I, 'adaptive');

Display original image along side binary version.

figure

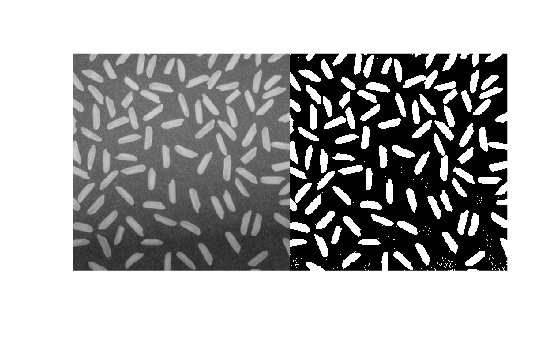

imshowpair(I,BW,'montage')

Read a grayscale image into the workspace and display it.

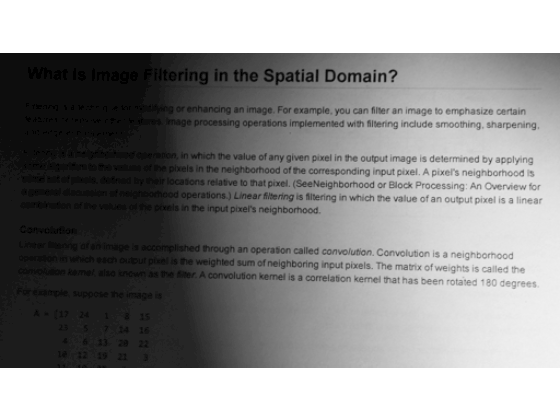

I = imread('printedtext.png');
figure
imshow(I)
title('Original Image')

Convert the image to a binary image using adaptive thresholding. Use the ForegroundPolarity parameter to indicate that the foreground is darker than the background.

BW = imbinarize(I,'adaptive','ForegroundPolarity','dark','Sensitivity',0.4);

Display the binary version of the image.

figure

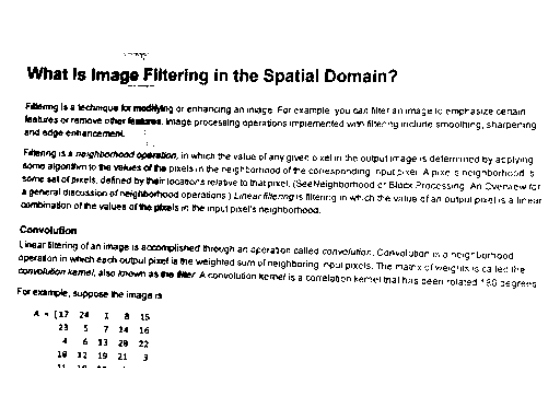

imshow(BW)
title('Binary Version of Image')

Load 3-D grayscale intensity data into the workspace.

load mristack;
V = mristack;

View the 3-D volume.

figure

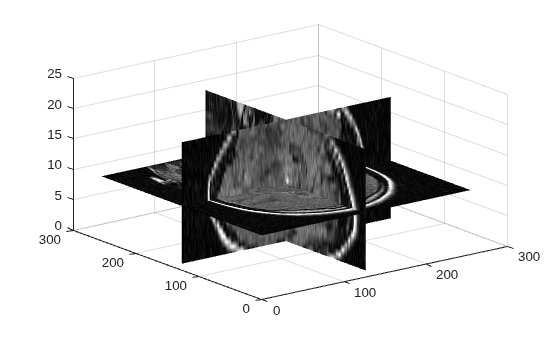

slice(double(V),size(V,2)/2,size(V,1)/2,size(V,3)/2)
colormap gray
shading interp

Convert the intensity volume into a 3-D binary volume.

J = imbinarize(V);

View the 3-D binary volume.

figure

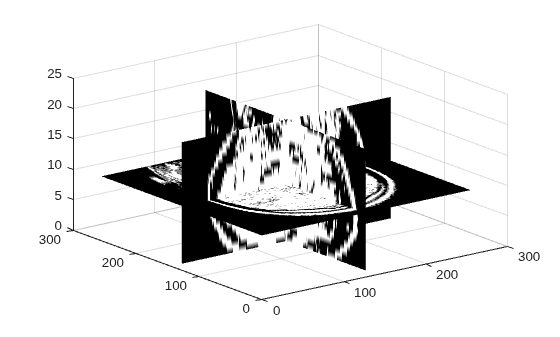

slice(double(J),size(J,2)/2,size(J,1)/2,size(J,3)/2)
colormap gray
shading interp

Input Arguments

collapse all

Input image, specified as a 2-D grayscale image or a 3-D grayscale volume.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Method used to binarize image, specified as one of the following values (names can be abbreviated).

Values

Meaning

'global'

Calculate global image threshold using Otsu's method. See graythresh for more information about Otsu’s method.

'adaptive'

Calculate locally adaptive image threshold chosen using local first-order image statistics around each pixel. See adaptthresh for details. If the image contains Infs or NaNs, the behavior of imbinarize for the 'adaptive' method is undefined. Propagation of Infs or NaNs might not be localized to the neighborhood around Inf and NaN pixels.

Data Types: char | string

Threshold luminance value, specified as a numeric scalar or numeric array of the same size as image I. If T is a scalar luminance value, then imbinarize interprets it as a global image threshold. If T is an array of luminance values, then imbinarize interprets it as a locally adaptive threshold. T must have a value between 0 and 1. Use the functions graythresh, otsuthresh, or adaptthresh to compute T.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: BW = imbinarize(I,'adaptive','Sensitivity',0.4);

Sensitivity factor for adaptive thresholding, specified as the comma-separated pair consisting of 'Sensitivity' and a number in the range [0, 1]. A high sensitivity value leads to thresholding more pixels as foreground, at the risk of including some background pixels.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Determine which pixels are considered foreground pixels, specified as the comma-separated pair consisting of 'ForegroundPolarity' and one of the following values.

Value

Meaning

'bright'

The foreground is brighter than the background.

'dark'

The foreground is darker than the background

Data Types: char | string

Output Arguments

collapse all

Output binary image, returned as a logical matrix or logical array of the same size as I.

Tips

  • To produce a binary image from an indexed image, first convert the image to a grayscale intensity image using ind2gray.

  • To produce a binary image from an RGB image, first convert the image to a grayscale intensity image using rgb2gray.

  • imbinarize expects floating point images to be normalized in the range [0,1].

Algorithms

The 'adaptive' method binarizes the image using a locally adaptive threshold. imbinarize computes a threshold for each pixel using the local mean intensity around the neighborhood of the pixel. This technique is also called Bradley's method [2]. The 'adaptive' method also uses a neighborhood size of approximately 1/8th of the size of the image (computed as 2*floor(size(I)/16)+1). To use a different first order local statistic or a different neighborhood size, see adaptthresh.

References

[1] Otsu, N., "A Threshold Selection Method from Gray-Level Histograms," IEEE Transactions on Systems, Man, and Cybernetics, Vol. 9, No. 1, 1979, pp. 62-66.

[2] Bradley, D., G. Roth, "Adapting Thresholding Using the Integral Image," Journal of Graphics Tools. Vol. 12, No. 2, 2007, pp.13-21.
